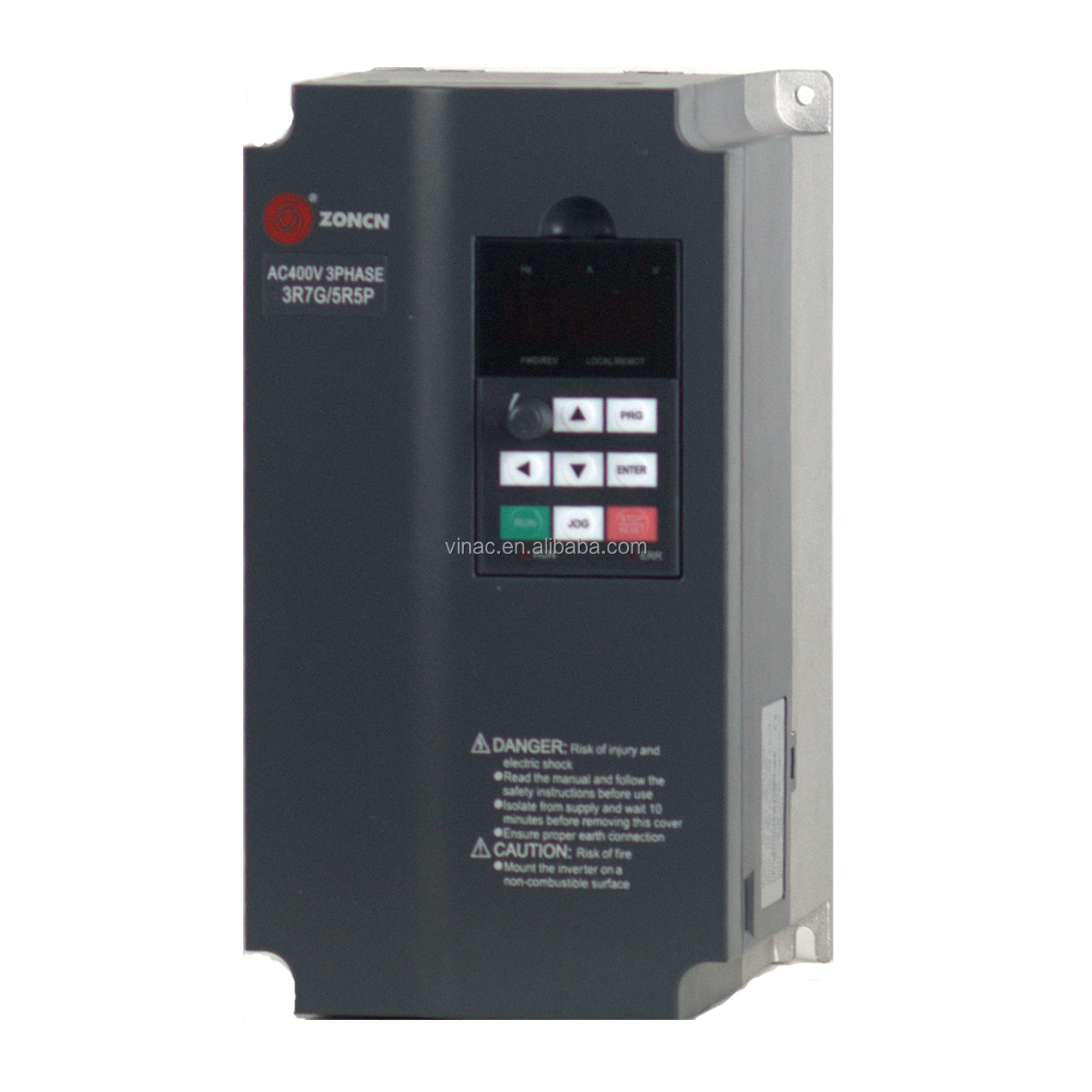

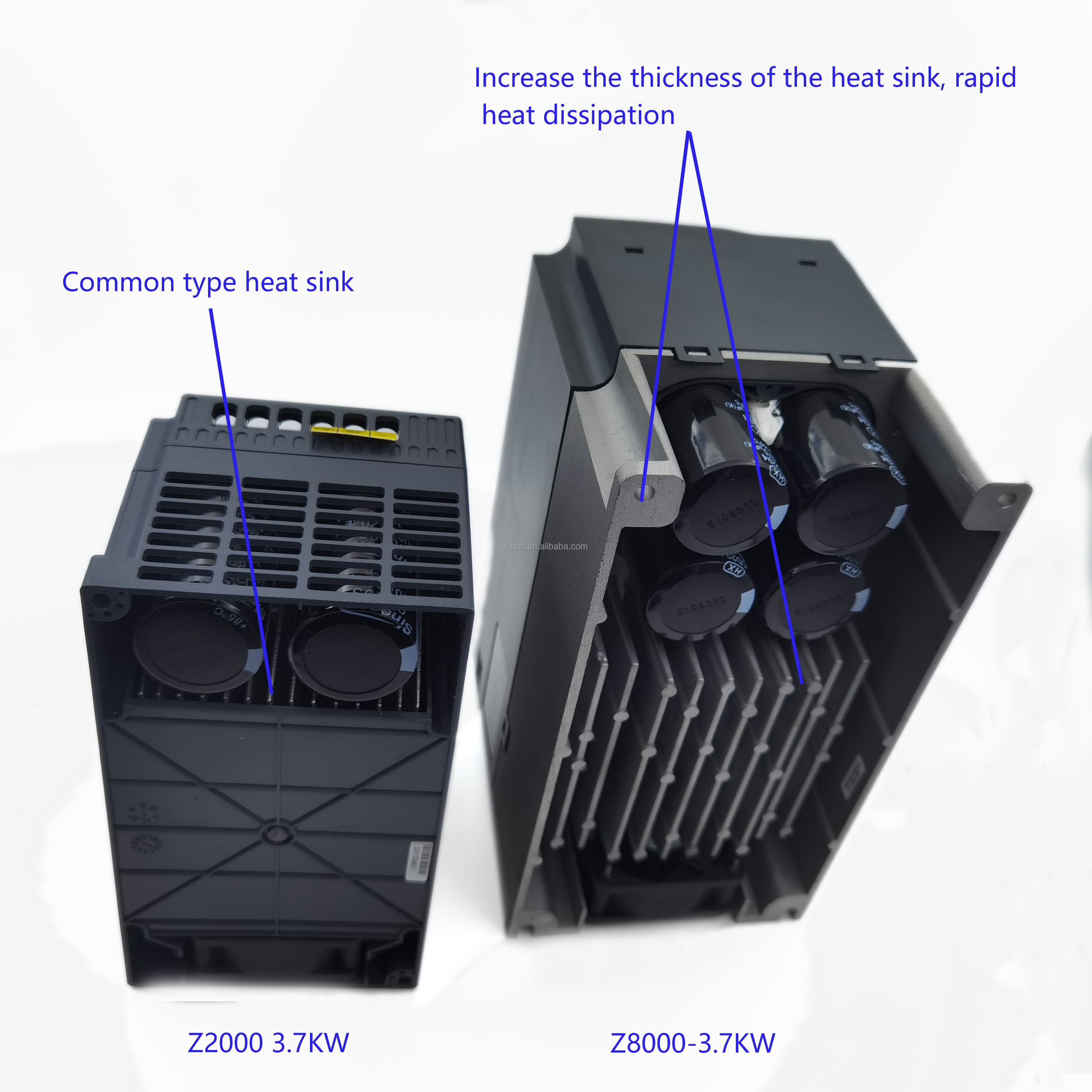

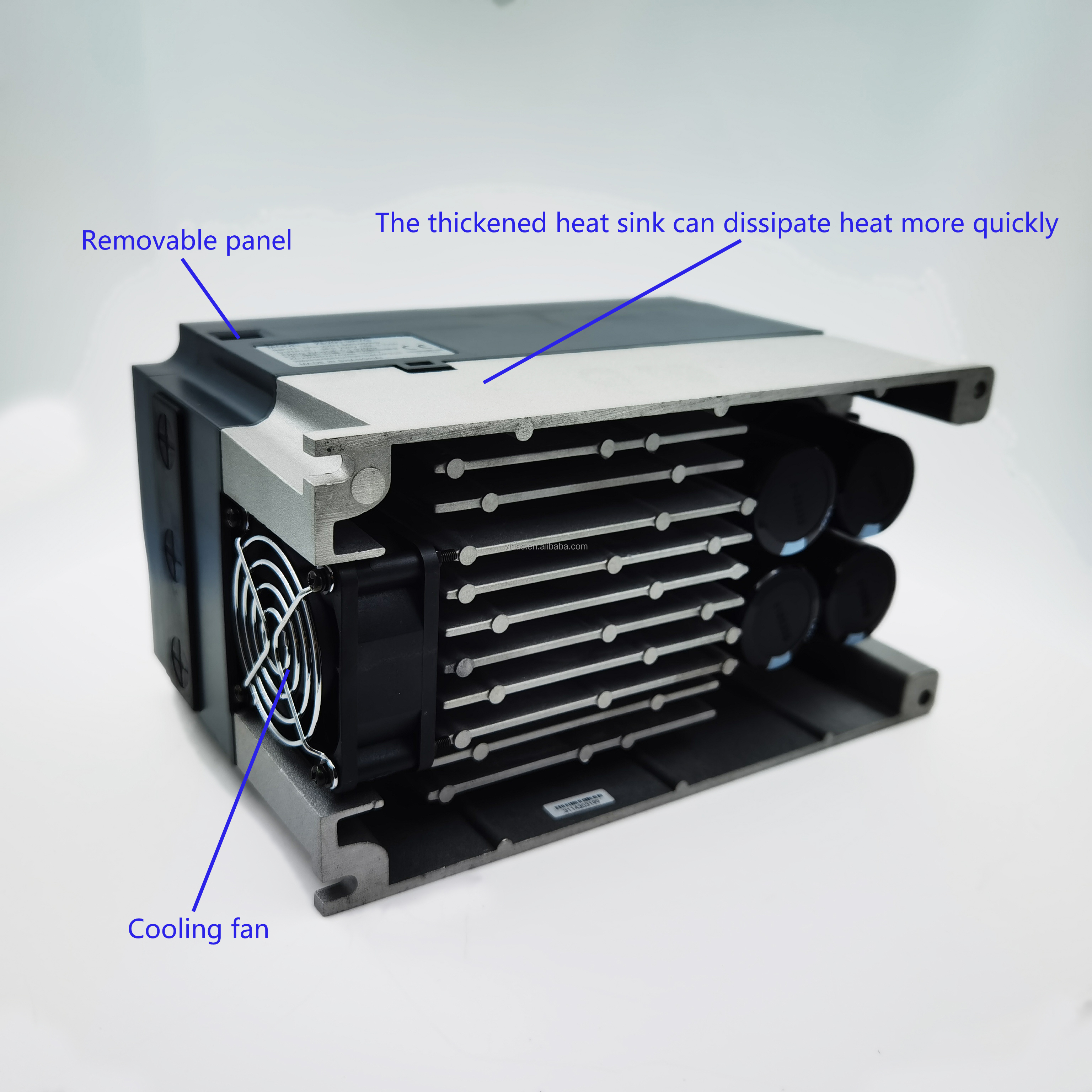

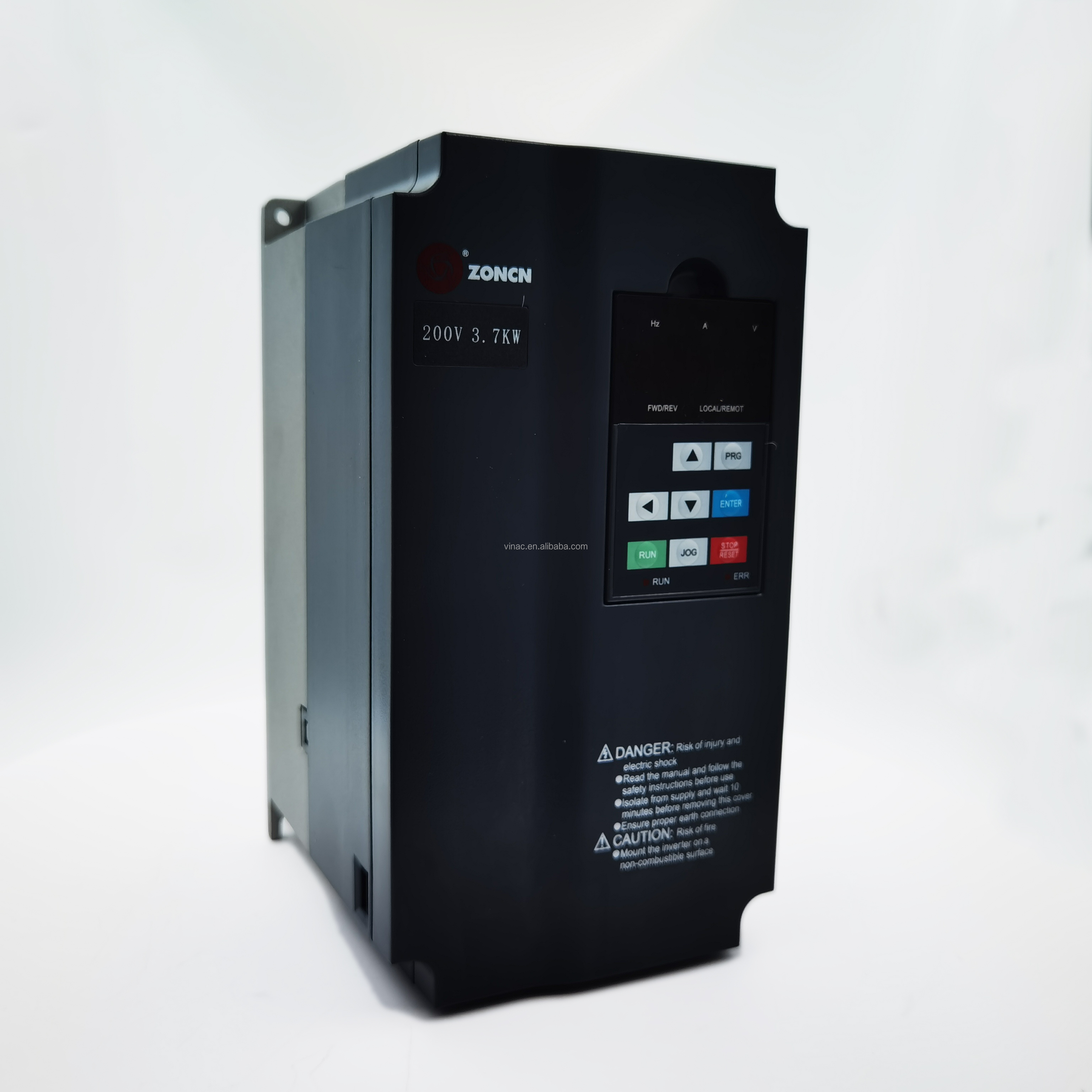

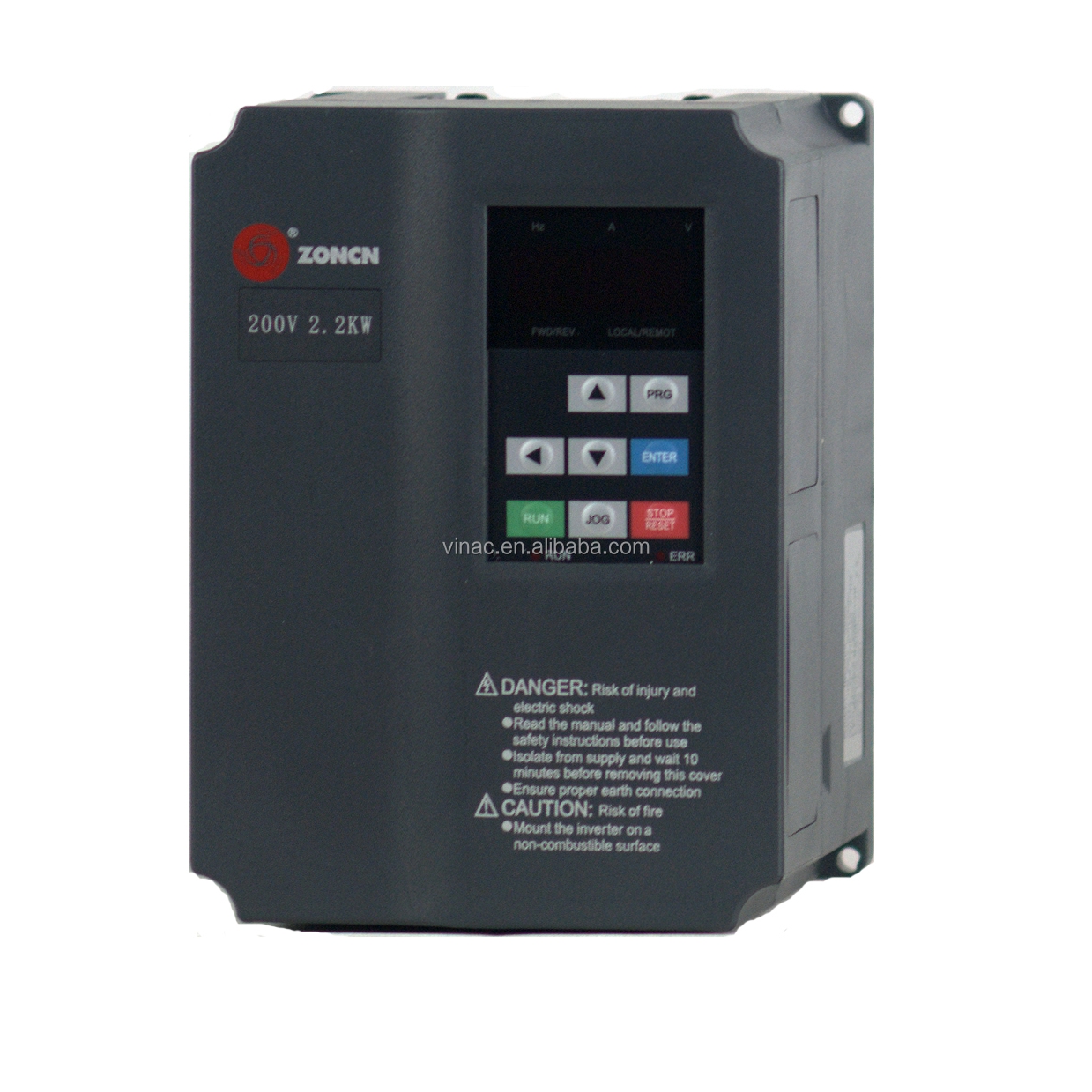

T9000   Series

Technical Specification

Item		Z8000
Basic Function	Control mode	Senseless flux vector control (SFVC); Closed-loop vector control(CLVC); V/F(Voltage/Frequency)control
	Maximum frequency	Vector control:0-320 Hz V/F control:0-599Hz
	Carrier frequency	1.0-16.0 kHz The carrier frequency is automatically adjusted based on the load features.
	Input frequency resolution	Digital setting:0.01 Hz; Analog setting:0.025%of maximum frequency
	Startup torque	G type:0.5 Hz/150%(SFVC);O Hz/180%(CLVC); P type:0.5 Hz/100%
	Speed range	1:100  (SFVC);1:1000(CLVC)
	Speed stability accuracy	±0.2%(SFVC);±0.02%(CLVC)
	Torque control accuracy	±5%(CLVC)
	Overload capacity	G type:60s for 150%of the rated current,3s for 180%of the rated current. P type:60s for 120%of the rated current,3s for 150%of the rated current.
	Torque boost	Auto boost Customized boost 0.1%-30.0%
	V/F curve	Line V/F curve; Multi-point V/F curve; N-power V/F curve(1.2-power,1.4-power,1.6-power,1.8-power,square)
	V/F separation	two types: complete separation; half separation
	Ramp mode	Straight-line ramp; S-curve ramp; Four groups of acceleration/deceleration time with the range of 0.0-6500.0s
	DC braking	DC braking frequency:0.00 Hz to maximum frequency: Braking time:0.0~100.0s Braking action current value:0.0%~100.0%
	JOG control	JOG frequency range:0.00-50.00 Hz JOG acceleration/deceleration time:0.0~6500.0s
	Onboard multiple preset speeds	It implements up to 16 speeds via the simple PLC function or combination of terminal states
	Onboard PID	It realizes process-controlled closed loop control system easily.
	Auto voltage regulation(AVR)	It can keep constant output voltage automatically when the mains voltage changes.
	Over voltage/         Over current stall control	The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to over voltage/over current.
	Rapid current limit	It helps to avoid frequent over current faults of the AC drive.
	Torque limit and control	It can limit the torque automatically and prevent frequent over current tripping during the running process. Torque control can be implemented in the CLVC mode.

PG card

Model	Description	Suitable inverter
PG-B1	ERN1387_SIN&COS input PG card_DB15	Z8400-5.5kW and above
PG-B2	ABZ, different input PG card, terminal connector	Z8400-3.7KW and above
PG-B3	Rotating PG card, terminal connector	Z8400-3.7 KW and above
PG-B4	ABZ_OC input PG card, terminal connector	Z8400-3.7 kW and above
PG-B5	ABZUVW, different input PG card_DB15	Z8400-5.5KW and above
PG-B8	CARD0_with PT100_fan output_485 transformer connect	Z8400-3.7 kW and above
PG-B9	Profibus card	Z8400-5.5 kW and above
PG-B10	ABZ different input PG card_DB9	Z8400-5.5 kW and above
PG-B11	Rotating PG card_DB9	Z8400-5.5 kW and above
PG-B12	1A input connector, Plastic Injection Application	Z8400-3.7 kW and above
PG-B13	GPRS expansion card, with connector_485 or 232 connector are optional	30kW and below need to external
PG-D1	Double ABZ OC input PG card terminal connector	Z8400D-3.7 KW and above
PG-D2	Double ABZ different input PG card terminal connector	Z8400D-3.7 KW and above

Specification

1.Voltage:1PH AC 220V±15%3PH AC 380V±15%

Model	Rated Output Power(KW)	Rated Input Current(A)	Rated Output Current(A)	Motor(kW)
Input Voltage(V):1PHAC220V±15%
Z8200-0R4G	0.4	5.4	2.5	0.4
Z8200-0R75G	0.75	7.2	5	0.75
Z8200-1R5G	1.5	10	7	1.5
Z8200-2R2G	2.2	16	11	2.2
Z8200-3R7G	3.7	23	16.5	3.7
Input Voltage(V):3PH AC380V±15%
Z8400-0R75G	0.75	3.8	2.5	0.75
Z8400-1R5G	1.5	5	3.7	1.5
Z8400-2R2G	2.2	5.8	5	2.2
Z8400-3R7G/5R5P	3.7/5.5	10/15.0	9.0/13	3.7/5.5
Z8400-5R5G/7R5P	5.5/7.5	15/20	13/17	5.5/7.5
Z8400-7R5G/11P	7.5/11	20/26	17/25	7.5/11
Z8400-11G/15P	11/15	26/35	25/32	11/15.0
Z8400-15G/18.5P	15/18.5	35/38	32/37	15/18.5
Z8400-18.5G/22P	18.5/22	38/46	37/45	18.5/22
Z8400-22G/30P	22/30	46/62	45/60	22/30
Z8400-30G/37P	30/37	62/76	60/75	30/37
Z8400-37G/45P	37/45	76/90	75/90	37/45
Z8400-45G/55P	45/55	92/113	90/110	45/55
Z8400-55G	55	113	110	55
Z8400-75P	75	157	150	75
Z8400-75G/90P	75/90	157/180	150/176	75/90
Z8400-90G/110P	90/110	180/214	176/210	90/110
Z8400-110G/132P	110/132	214/256	210/253	110/132
Z8400-132G/160P	132/160	256/307	253/300	132/160
Z8400-160G/185P	160/185	307/355	300/340	160/185
Z8400-185G/200P	185/200	355/385	340/380	185/200
Z8400-200G/220P	200/220	385/430	380/420	200/220
Z8400-220G/250P	220/250	430/475	420/470	220/250
Z8400-250G/280P	250/280	475/525	470/520	250/280
Z8400-280G/315P	280/315	525/610	520/600	280/315
Z8400-315G/350P	315/350	610/665	600/640	315/350
Z8400-350G/400P	350/400	665/700	640/690	350/400
Z8400-400G/450P	400/450	700/800	690/790	400/450
Z8400-450G/500P	450/500	800/865	790/860	450/500
Z8400-500G/560P	500/560	865/960	860/950	500/560
Z8400-560G/630P	560/630	960/1112	950/1100	560/630
Z8400-630G/710P	630/710	1112/1290	1100/1280	630/710
Z8400-710G/800P	710/800	1290/1472	1280/1380	710/800
Z8400-800G/900P	800/900	1472/1680	1380/1640	800/900
Z8400-900G/1000P	900/1000	1680/1800	1640/1720	900/1000
Z8400-1000G	1000	1800	1720	1000

2.Input   Voltage(V):3PH   AC(660V-690V)±15%



Model	Rated Output Power(KW)	Rated Input Current(A)	H	W	D	Dimension(mm)	Remark
Input Voltage(V):3PHAC(660V~690V)±15%
Z8600-11G/15P	11	12	410	277	189	390*262*φ6.5	Wall mounting
Z8600-15G/18D5P	15	16
Z8600-18GD5/22P	18.5	20
Z8600-22G/30P	22	24
Z8600-30G/37P	30	33
Z8600-37G/45P	37	41
Z8600-45G/55P	45	50
Z8600-55G/75P	55	62	595	300	236	573*200*φ9
Z8600-75G/90P	75	85
Z8600-90G/110P	90	102
Z8600-110G/132P	110	125	620	380	290	595*250*φ9
Z8600-132G/160P	132	150
Z8600-160G/185P	160	175	880	380	358	840*250*φ13
Z8600-185G/200P	185	198
Z8600-200G/220P	200	215
Z8600-220G/250P	220	245
Z8600-250G/280P	250	260
Z8600-280G/315P	280	299	995	630	350	971*500*φ11
Z8600-315G/350P	315	330
Z8600-350G/400P	350	374
Z8600-400G/450P	400	410	1040	680	400	1016*520*011
Z8600-450G/500P	450	465
Z8600-500G/560P	500	510
Z8600-560G/630P	560	540	1150	680	400	1126*520*011
Z8600-630G/710P	630	570
Z8600-710G/800P	710	646	1800	650	920	610*620*017	Cabinet
Z8600-800G/900P	800	728
Z8600-900G/1000P	900	819	1800	750	920	710*620*017
Z8600-1000G/1100P	1000	910
Z8600-1100G/1250P	1100	1000	1800	900	920	860*620*017
Z8600-1250G/1400P	1250	1137
Z8600-1400G	1400	1273	2000	1050	930	1010*630*017

Dimension

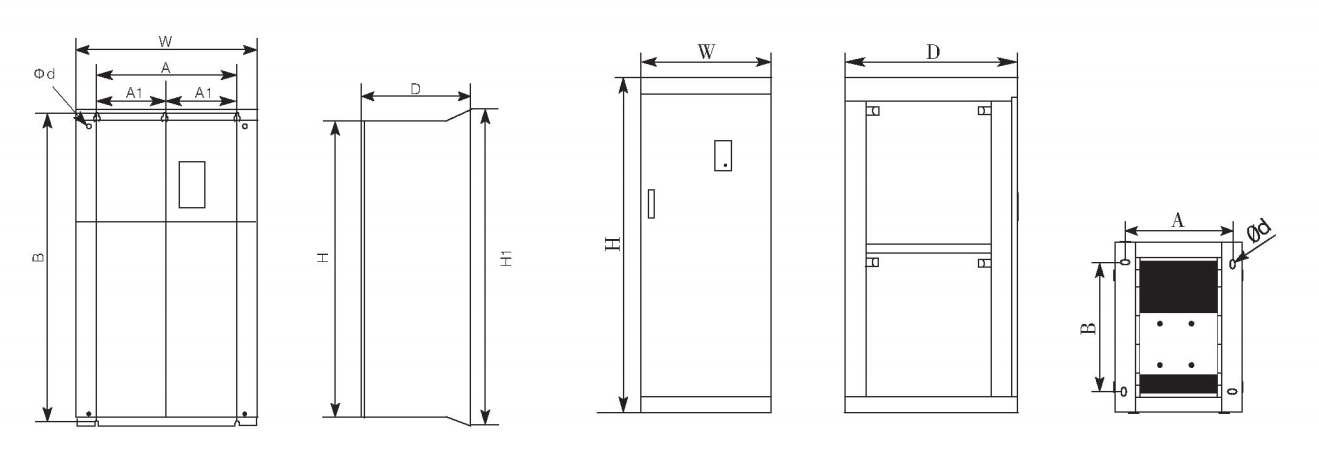

 1.Wall Mounting Install                                             2.Cabinet Install

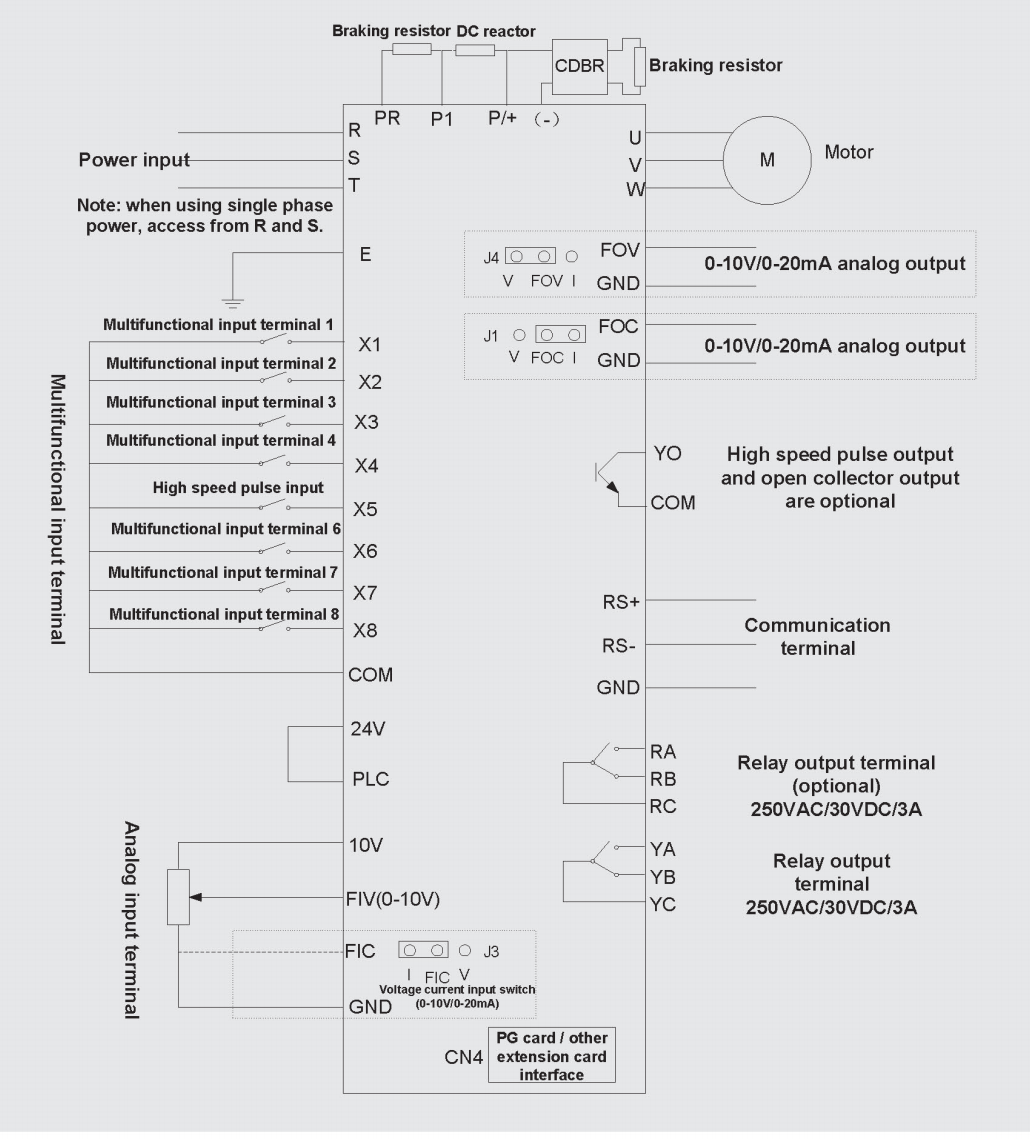

Typical Wiring diagram



Model	Outline Dimension(mm)				Install Dimension (mm)A*B*φd	Install Method	Remark
	W	H	H1	D
Z8200-0R4G	125	170	一	140	117*160*φ5	Wall mounting	Plastic
Z8200-0R75G
Z8200-1R5G
Z8200-2R2G
Z8200-3R7G	120	225	一	143	105*208*φ5		Semi-plastic
Z8400-0R4G	125	170	一	140	117*160*φ5		Semi-plastic
Z8400-0R75G
Z8400-1R5G
Z8400-2R2G
Z8400-3R7G/5R5P	120	225	一	143	105*208*φ5		Semi-plastic
Z8400-5R5G/7R5P	185	260	一	170	168*248*φ6.5		Plastic
Z8400-7R5G/11P
Z8400-11G/15P	210	330	一	190	195*310*φ6.5		Semi-plastic
Z8400-15G/18.5P
Z8400-18.5G/22P	277	410	一	189	262*390*φ6.5
Z8400-22G/30P
Z8400-30G/37P
Z8400-37G-NN
Z8400-37G/45P	300	430	455	212	200*433*φ9		Metal
Z8400-45G/55P	300	535	560	236	200*538*φ9
Z8400-55G
Z8400-75P
Z8400-75G/90P	338	546	576	256.5	270*560*φ9		Metal (NEW)
Z8400-90G/110P	338	550	580	300	270*564*φ9
Z8400-110G/132P
Z8400-132G/160P	420	Wall:730 Cabinet:1130	Wall:790 Cabinet:1165	330	Wall:300*765*φ11 Cabinet:250*350*φ12	Wall mounting /Cabinet Install	Metal
Z8400-160G/185P
Z8400-185G/200P	530	Wall:800 Cabinet:1300	Wall:860 Cabinet:1335	335	Wall:400*835*φ11 Cabinet:250*450*φ12
Z8400-200G/220P
Z8400-220G/250P
Z8400-250G/280P	700	Wall:880 Cabinet:1380	Wall:940 Cabinet:1415	350	Wall:600*915*φ11 Cabinet:250*620*φ12		Metal
Z8400-280G/315P
Z8400-315G/350P
Z8400-350G/400P	600	1600	—	800	550*700*Φ13	Cabinet Install
Z8400-400G/450P
Z8400-450G/500P
Z8400-500G/560P	650	1600	一	800	600*700*φ13
Z8400-560G/630P
Z8400-630G/710P
Z8400-710G/800P	700	2200	一	1000	650*900*φ13
Z8400-800G/900P
Z8400-900G/1000P
Z8400-1000G
