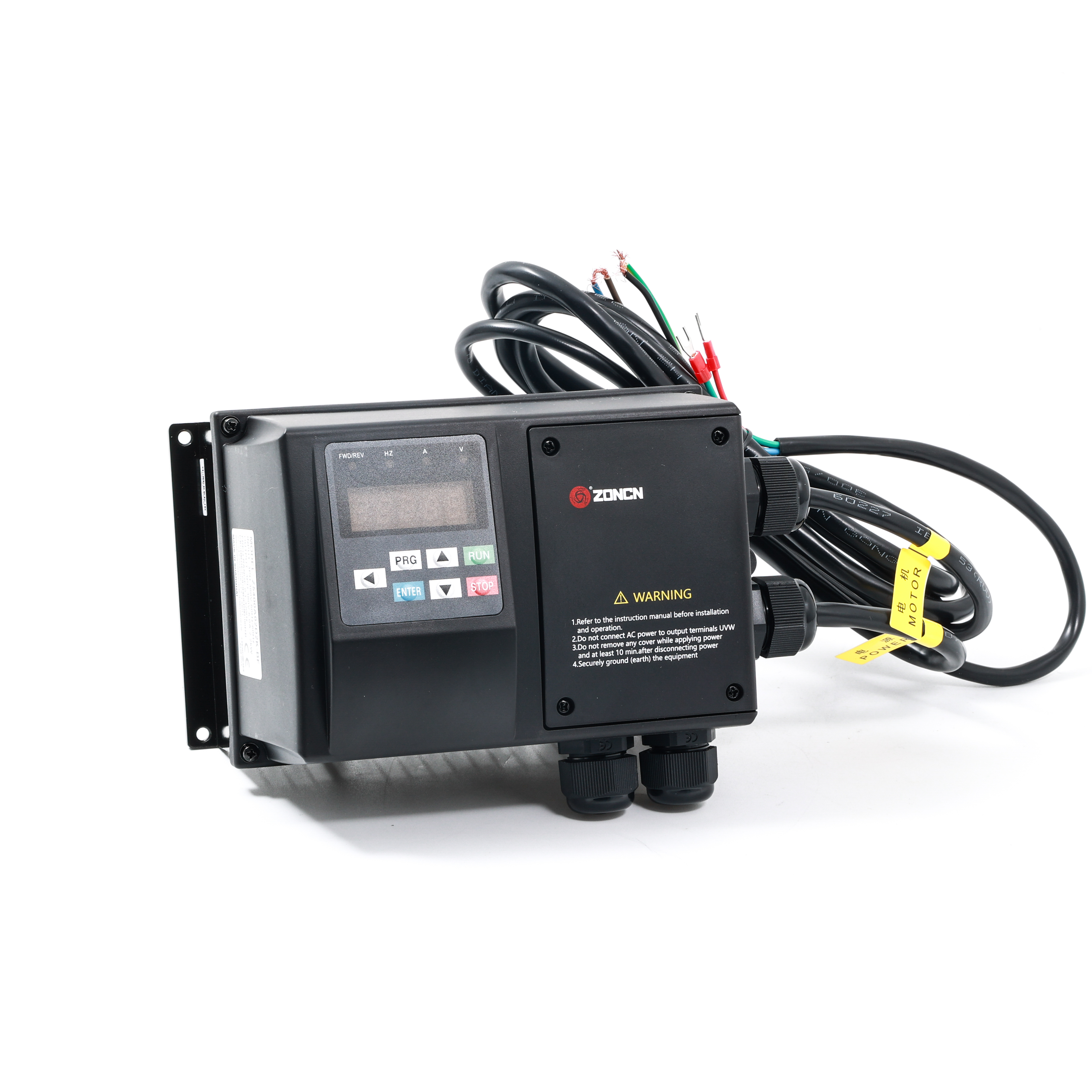

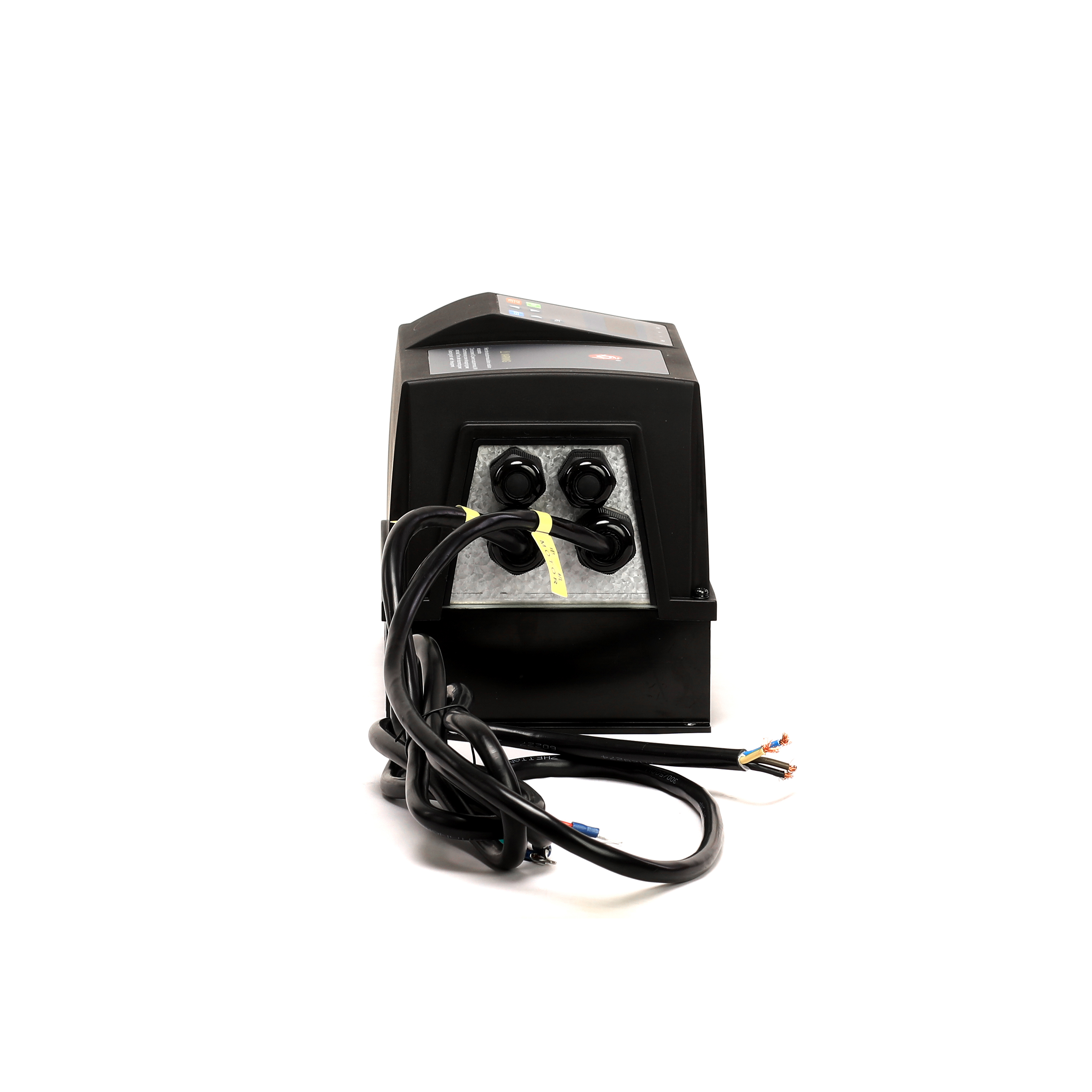

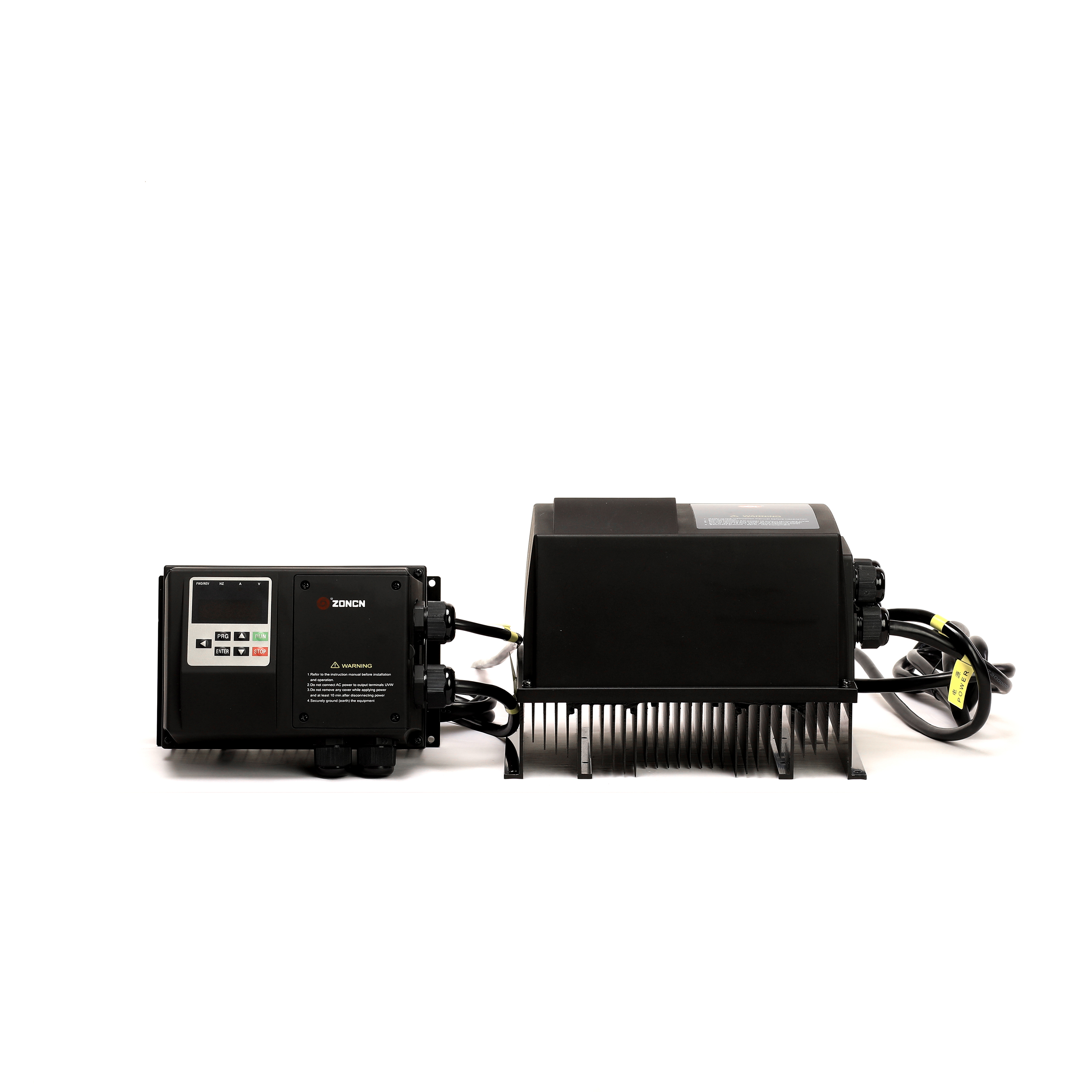

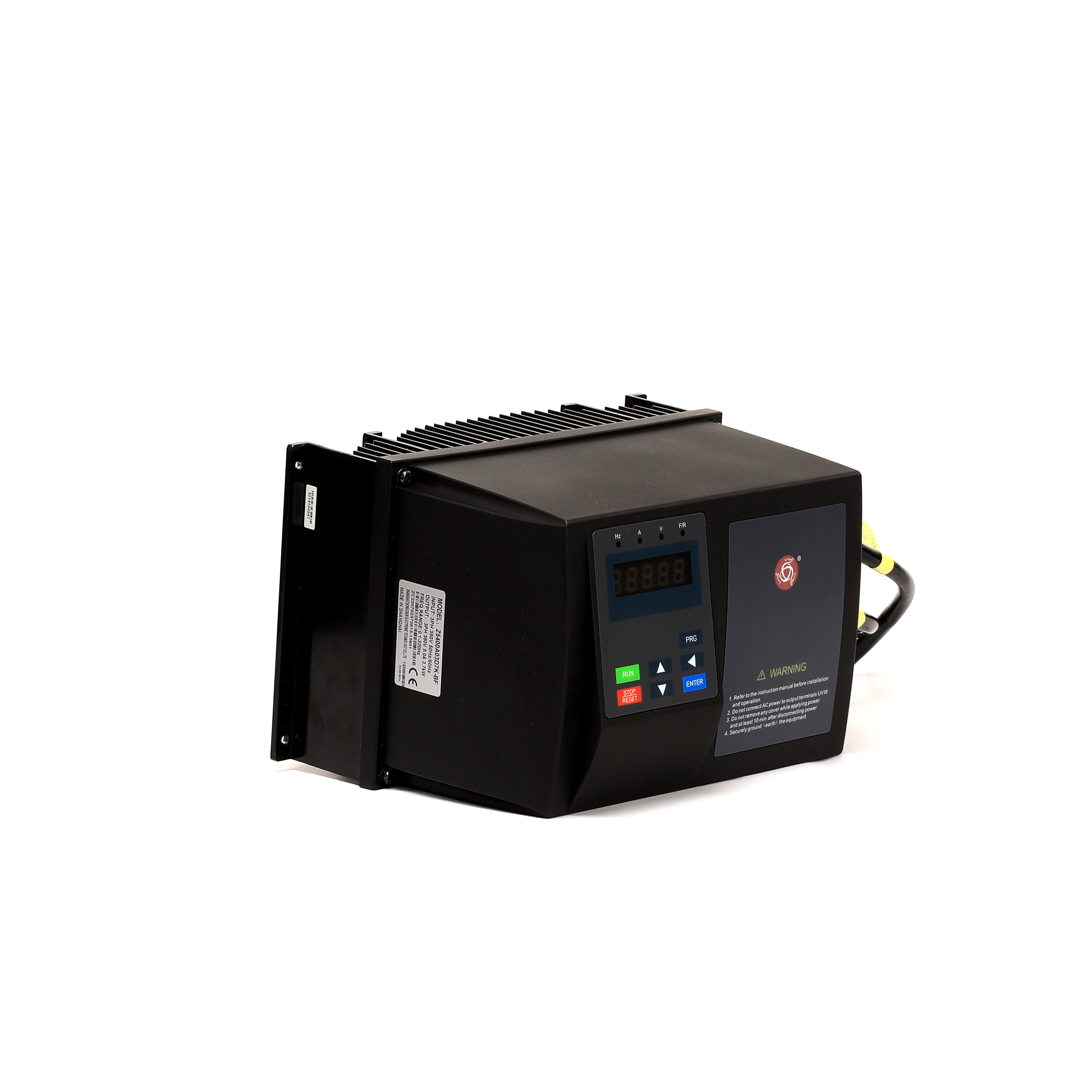

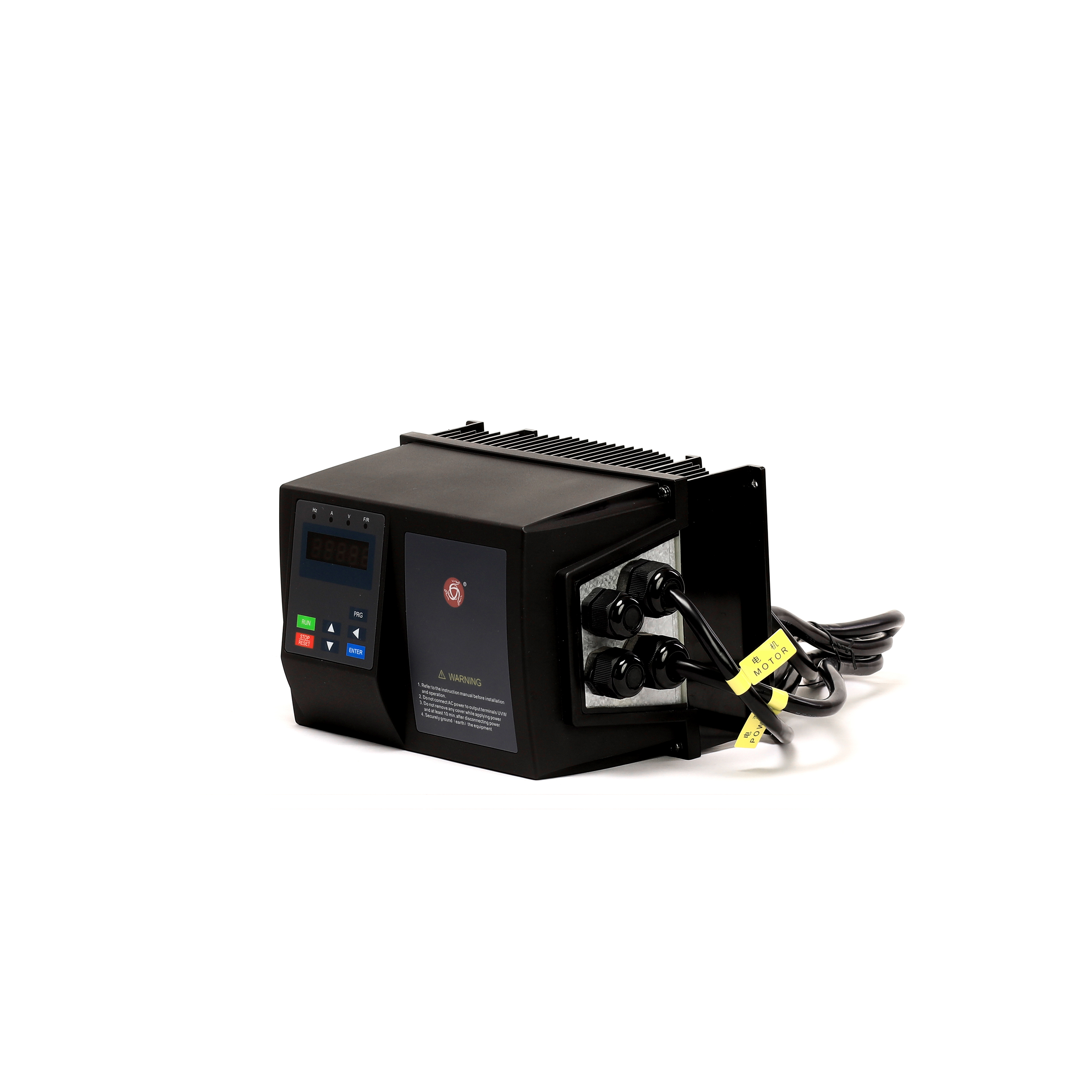

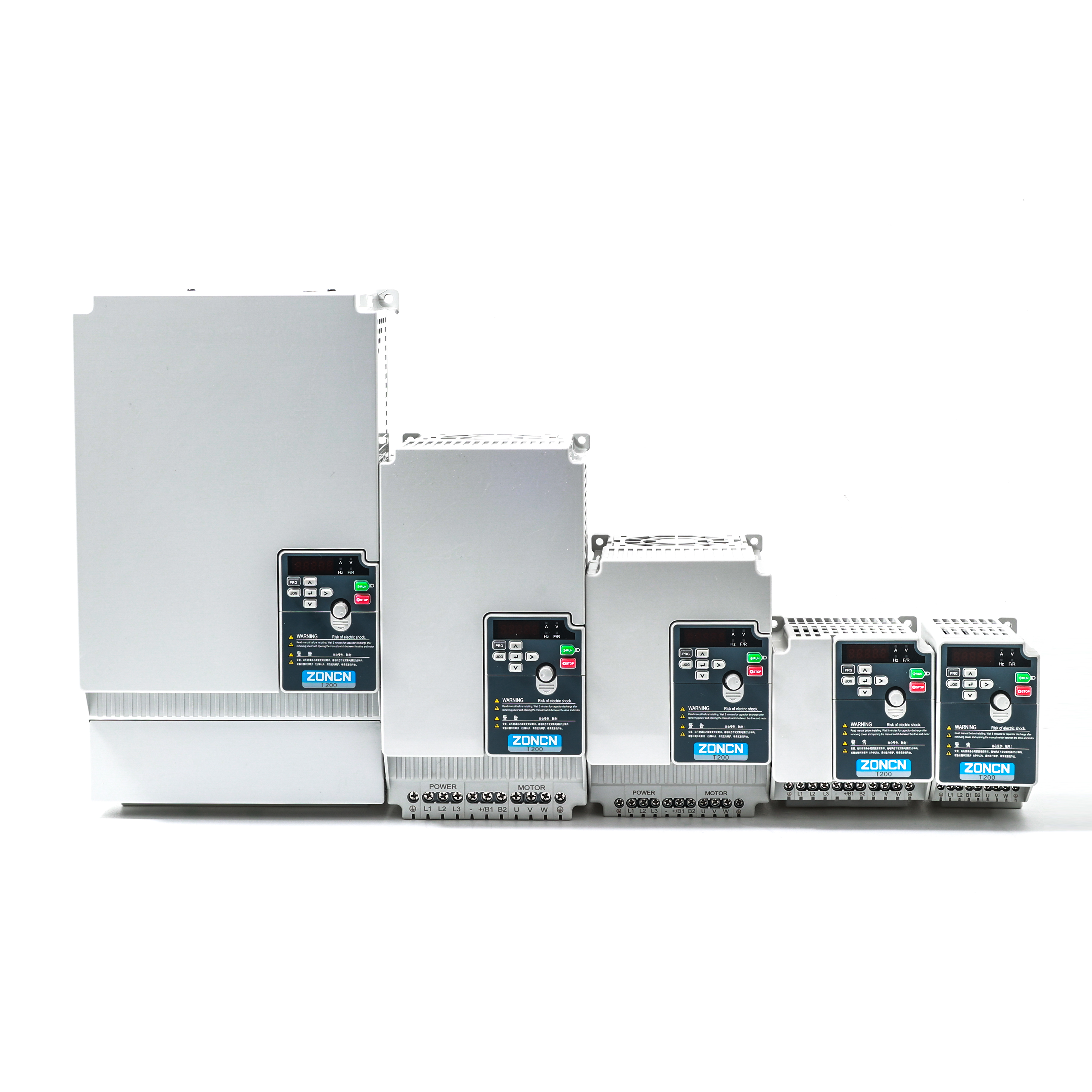

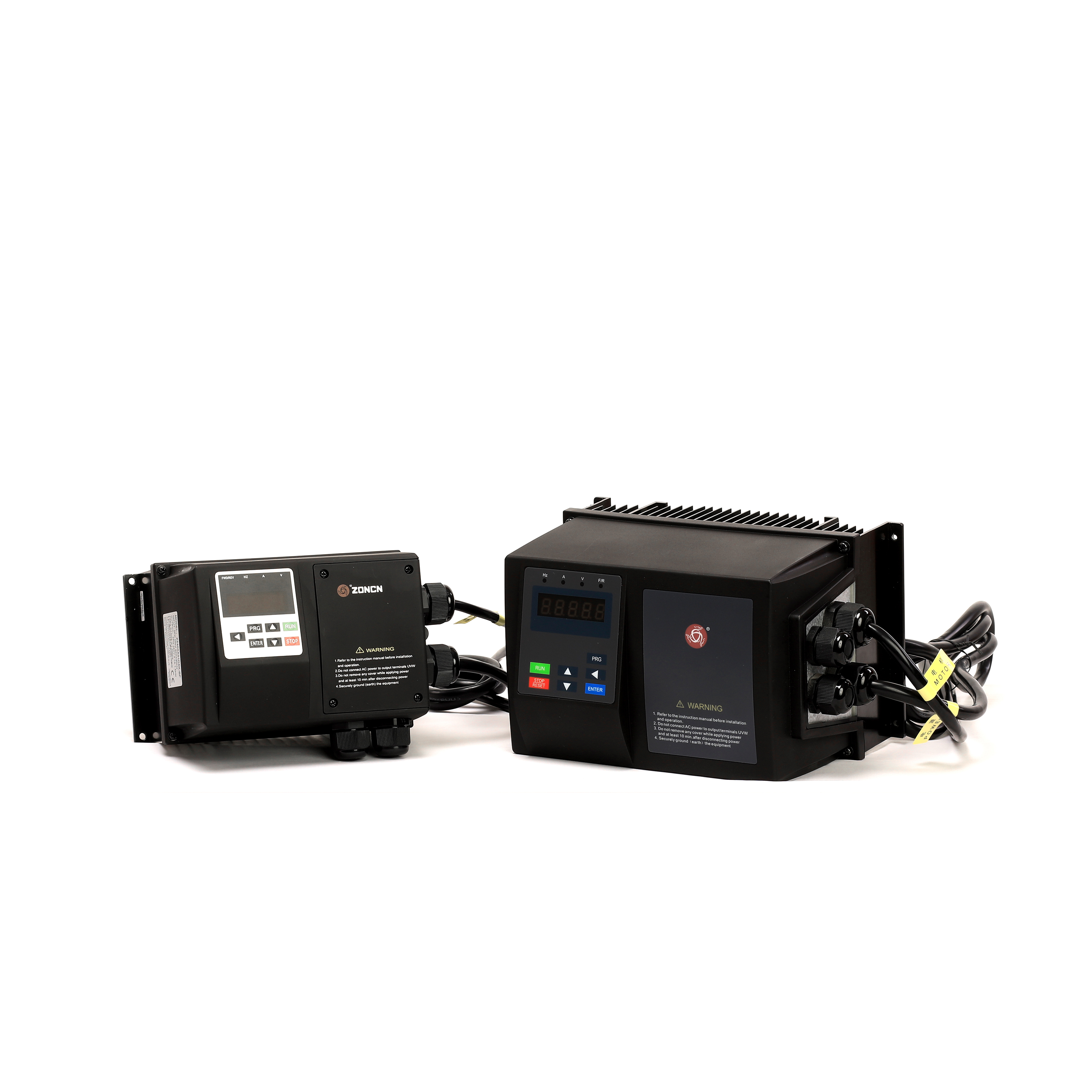

Z5000-BF    Series

ITEM

Z5000-BF

Standard functions

Control mode

Sensorless flux vector control (SFVC); Voltage/Frequency (V/F) control

Maximum frequency

Vector control: 0–320 Hz; V/F control: 0–3200Hz

Carrier frequency

1 kHz–16 kHz The carrier frequency can be automatically adjusted based on the load features.

Input frequency resolution

Digital setting: 0.01 Hz; Analog setting: maximum frequency x 0.025%

Startup torque

G type: 0.5 Hz/150% (SFVC); P type: 0.5 Hz/100%

Speed range

1:100 (SFVC)

Speed stability accuracy

± 0.5% (SFVC)

Overload capacity

G type: 60s for 150% of the rated current, 3s for 180% of the rated current.

P type: 60s for 120% of the rated current, 3s for 150% of the rated current

Torque boost

Fixed boost; Customized boost 0.1%–30.0%

V/F  curve

Straight-line V/F  curve; Multi-point V/F  curve; N-power V/F curve (1.2-power, 1.4-power, 1.6-power, 1.8-power, square)

V/F  separation

Two types: complete separation; half separation

Ramp mode

Straight-line ramp

S-curve ramp

Four groups of acceleration/deceleration time with the range of 0.0–6500.0s

DC braking

DC braking frequency: 0.00 Hz to maximum frequency; Braking time: 0.0-36.0s; Braking action current value: 0.0%–100.0%

JOG control

JOG frequency range: 0.00–50.00 Hz

JOG acceleration/deceleration time: 0.0–6500.0s

Onboard Multiple preset speeds

It implements up to 16 speeds via the simple PLC function or by input(X) terminal states

Onboard  PID

It realizes process-controlled closed loop control system easily.

Auto voltage regulation (AVR)

It can keep constant output voltage automatically when the mains voltage changes.

Over-voltage/Over-current stall control

The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to over-voltage/over-current.

Torque limit and torque control

It can limit the torque automatically and prevent frequent over-current tripping during the running process.

Instantaneous stop doesn’t stop

The load feedback energy compensates the voltage reduction so that the AC drive can continue to run for a short time.

Rapid current limit

It helps to avoid frequent over-current faults of the AC drive.

High performance

Control of asynchronous motor is implemented through the high-performance current vector control technology.

Timing control

Time range: 0.0–6500.0 minutes

Communication methods

RS485

Running command channel

Given by the panel, control terminals,

Serial communication port, can be switched by many ways

Frequency source

10 kinds of frequency source, given by

Digital analog voltage, analog current, Pulse, serial port. can be switched by many ways

Auxiliary frequency source

10 kinds of Frequency source, given by Digital analog voltage, analog current, pulse, serial port. Can be switched by many ways.

Input and output

Input terminals

6 digital input terminals, one of which supports up to 100 kHz high-speed pulse input.(S3)

2 analog input terminal,one of which only supports 0-10V voltage input and the other supports  0–10 V voltage input and 4–20 mA current input.

Output terminal

1 digital output terminal

1 relay output terminal (RA.RB.RC)

1 analog output terminal :that supports 0–20 mA current output or 0–10 V voltage output

Frequency source

Digital setting, analog voltage setting, analog current setting, pulse setting and serial communication port setting.

LED display

It displays the parameters.

Key locking and function selection

It can lock the keys partially or completely and define the function range of some keys so as to prevent malfunction.

Protection mode

Motor short-circuit detection at power-on, output phase loss protection, over-current protection, over-voltage protection, under voltage protection, overheat protection and overload protection.

Running

Command source

Operation panel given,control terminal given,serial communication port given.It can be  switched in various ways

Frequency source

10 frequency sources:digital given,analog voltage given,analog current given,pulse given,serial port given.It can be switched in various ways

Auxiliary frequency

Of the 10 auxiliary frequency sources.It can flexibly assist frequency fine-tuning and source        frequency synthesis

Enter the terminal line

standard:

6 digital input terminals,where S3 supports high speed pulse input upto 100kHz  (o ptional)

Two analog input terminals,one supports only 0-10 Vvoltage input,and one supports 0-10V,voltage input or 4 to 20 mA current input

Leading-out terminal

1 high-speed pulse output(optional) and 1 collector output terminal 1 relay output terminal 1 analog output terminal, supporting 4 to 20 mA current output or 0 to 10 V voltage output

Communication

RS-485

support

Environment

Ambient temperature

-10℃~+40℃(ambient temperature is 40℃~50℃,please decrease for use)

Humidity

Less than 95%RH,and the anhydrous beads were condensed

Storage

-20℃~+60℃

temperature

Vibration

Less than 5.9m/s²(0.6g)

Levels of  protection

IP54 of IP65,3.7KW and above below 3.7KW

Altitude

Below 1000m
