VINAC

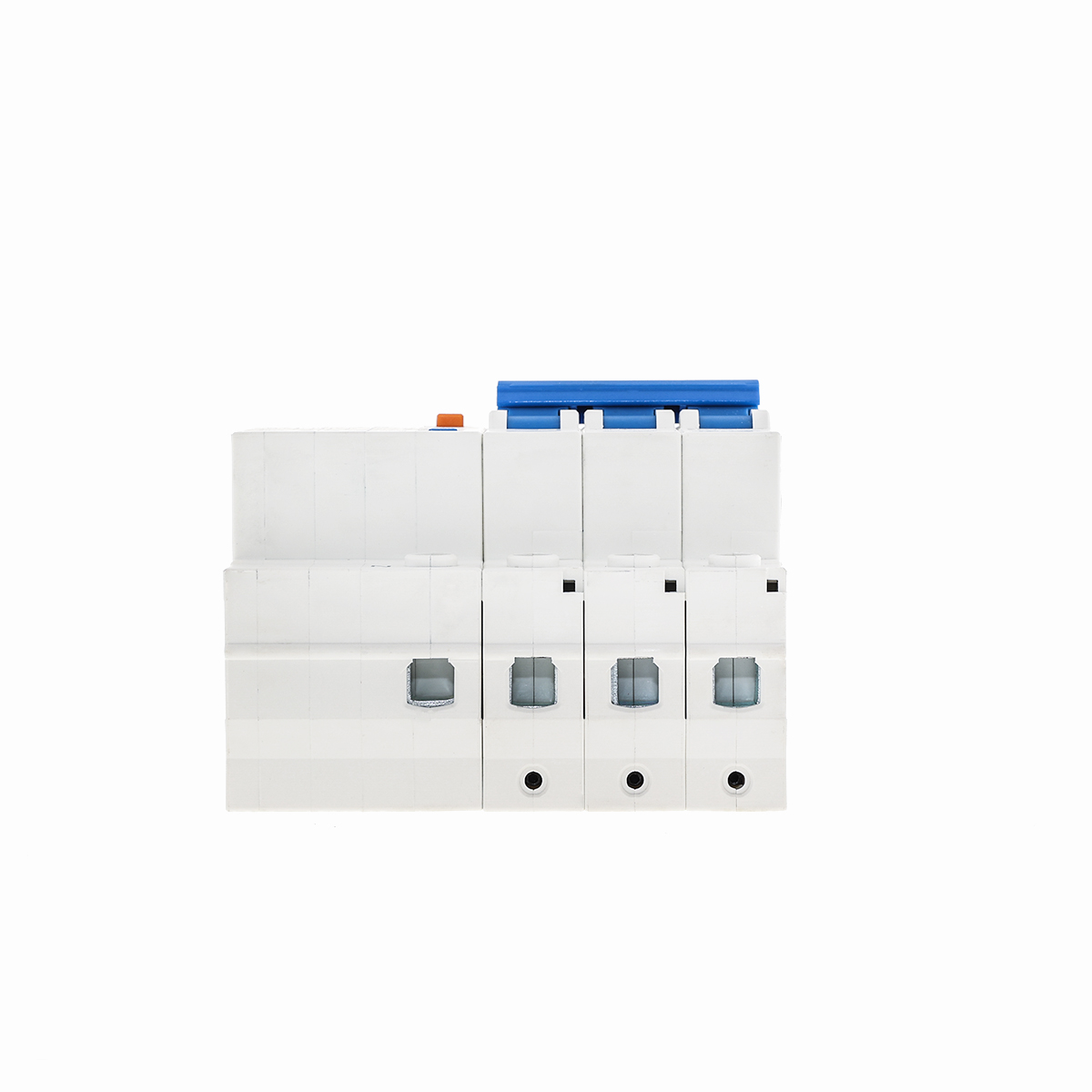

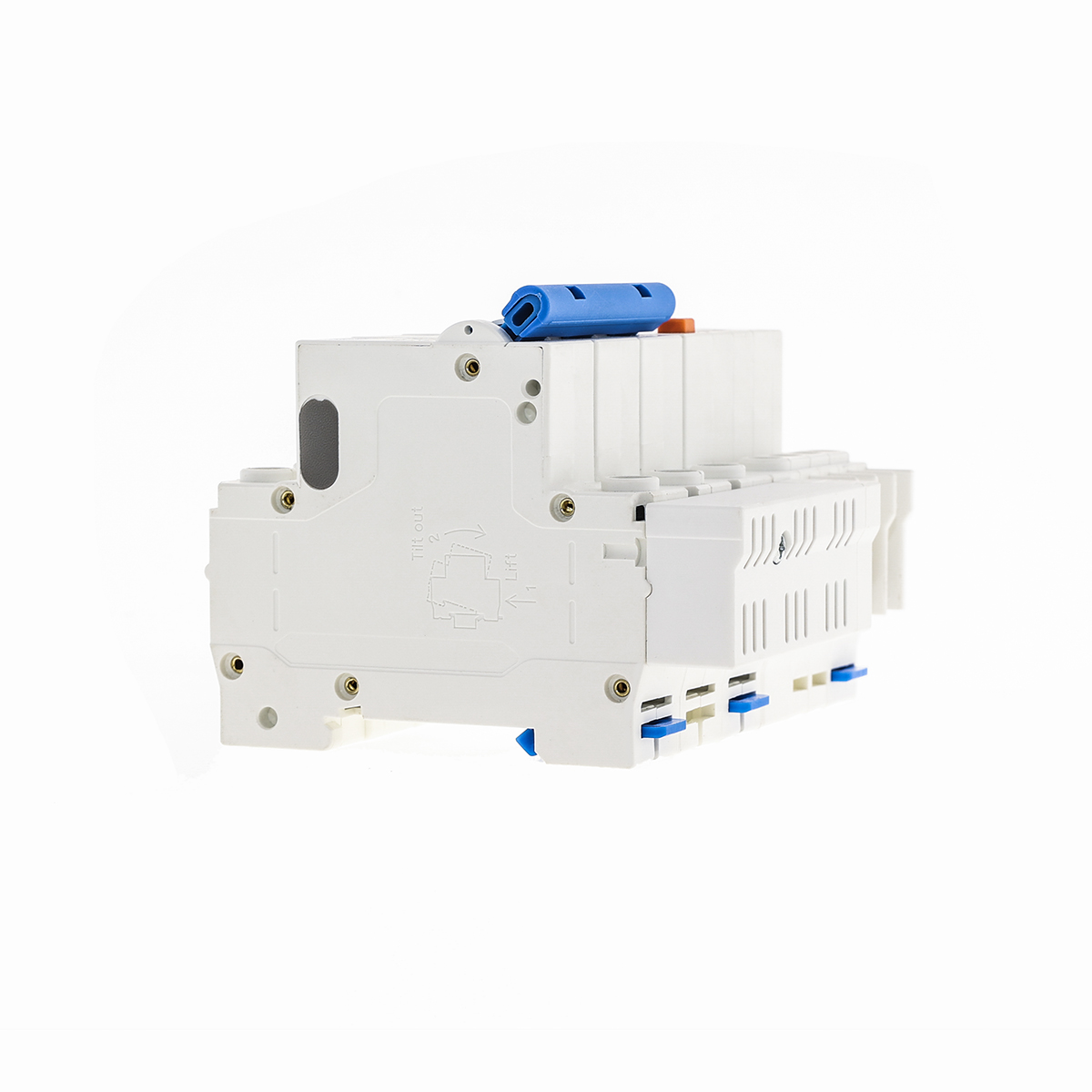

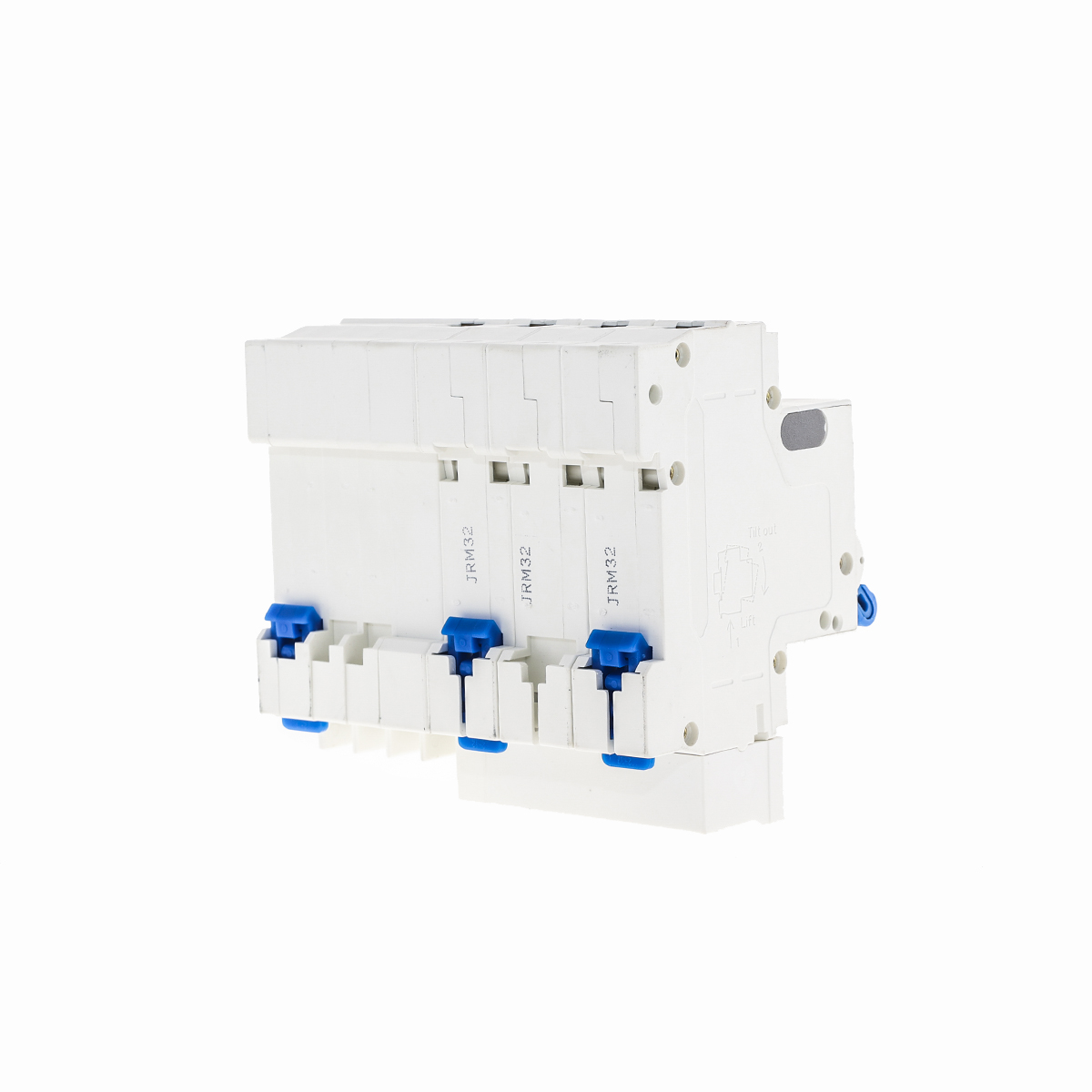

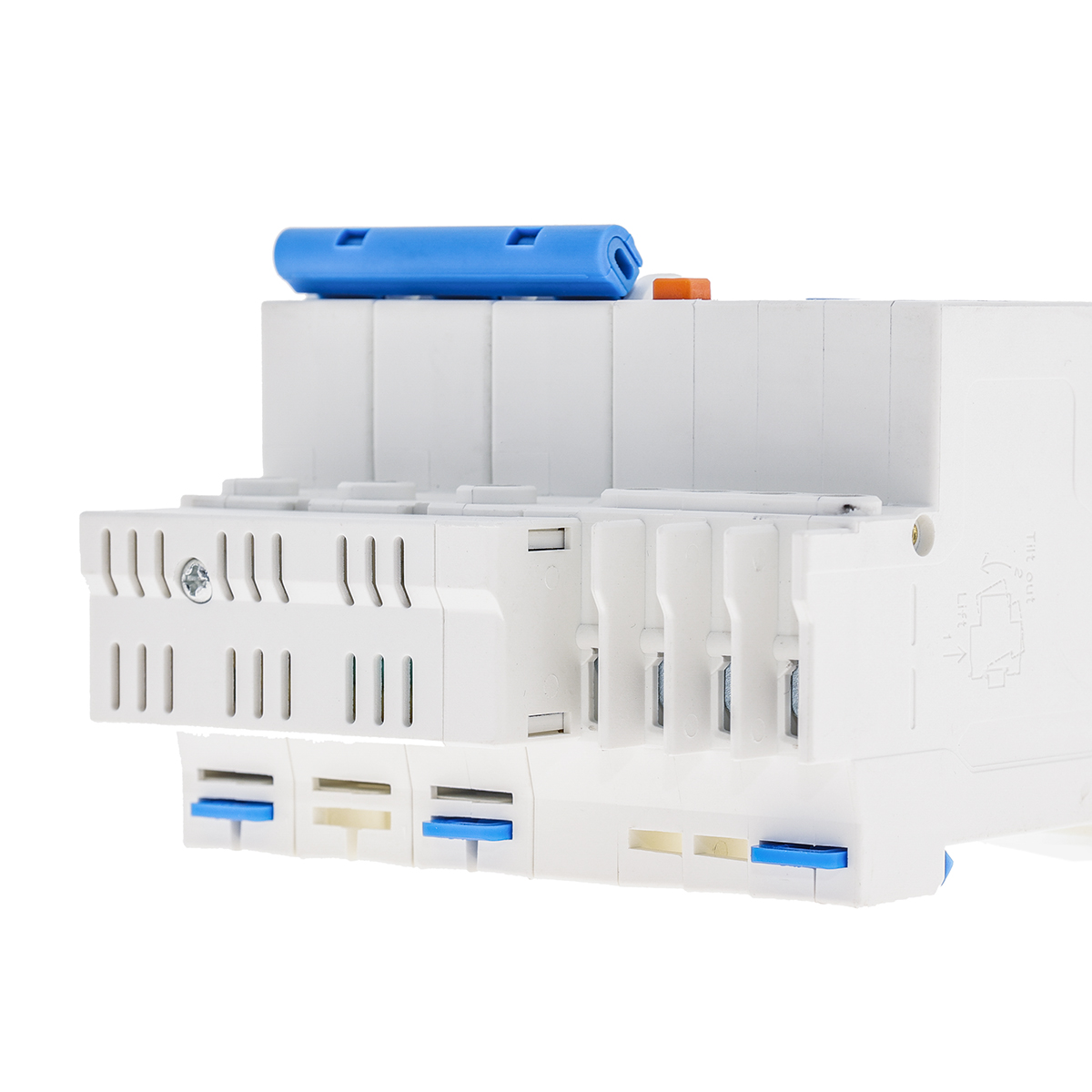

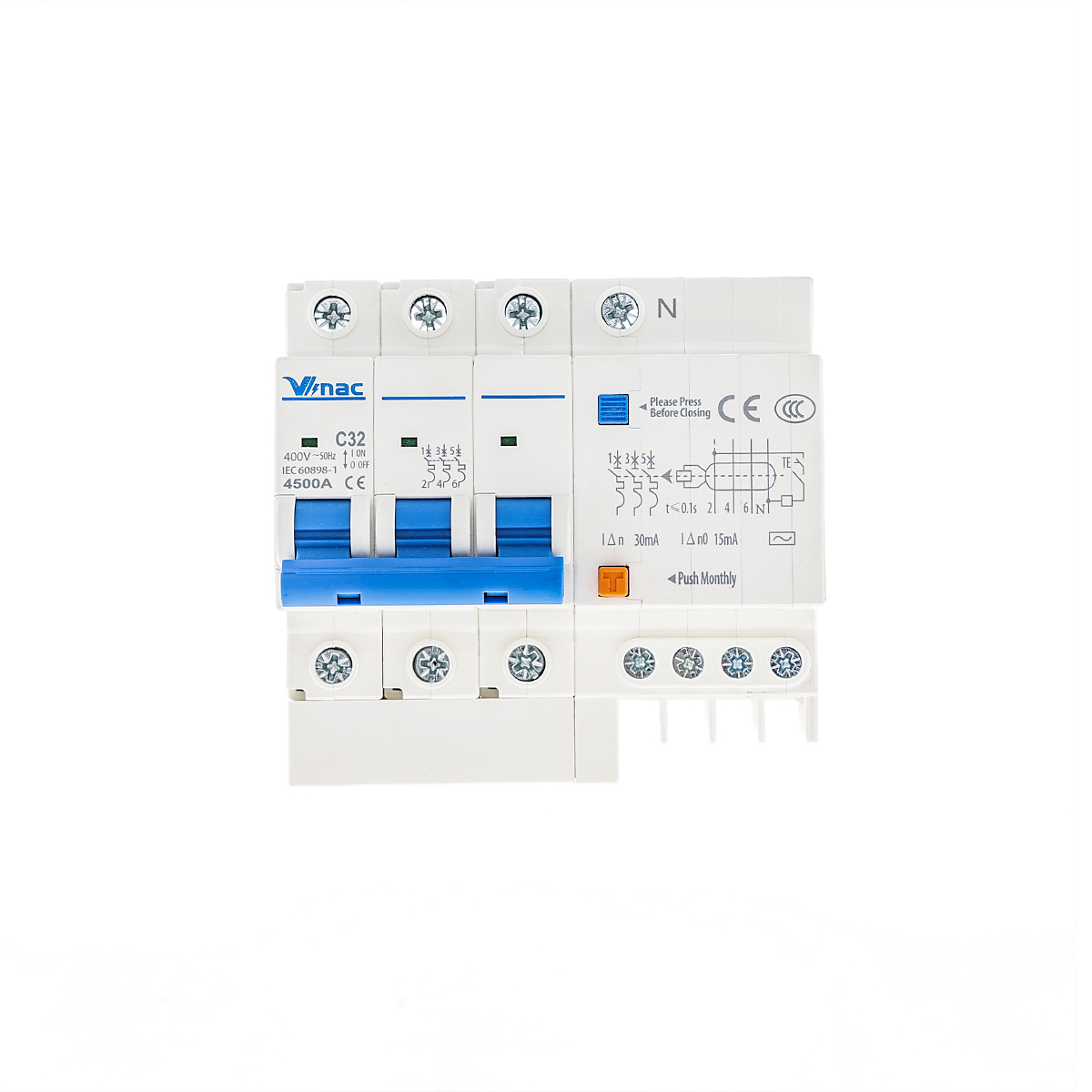

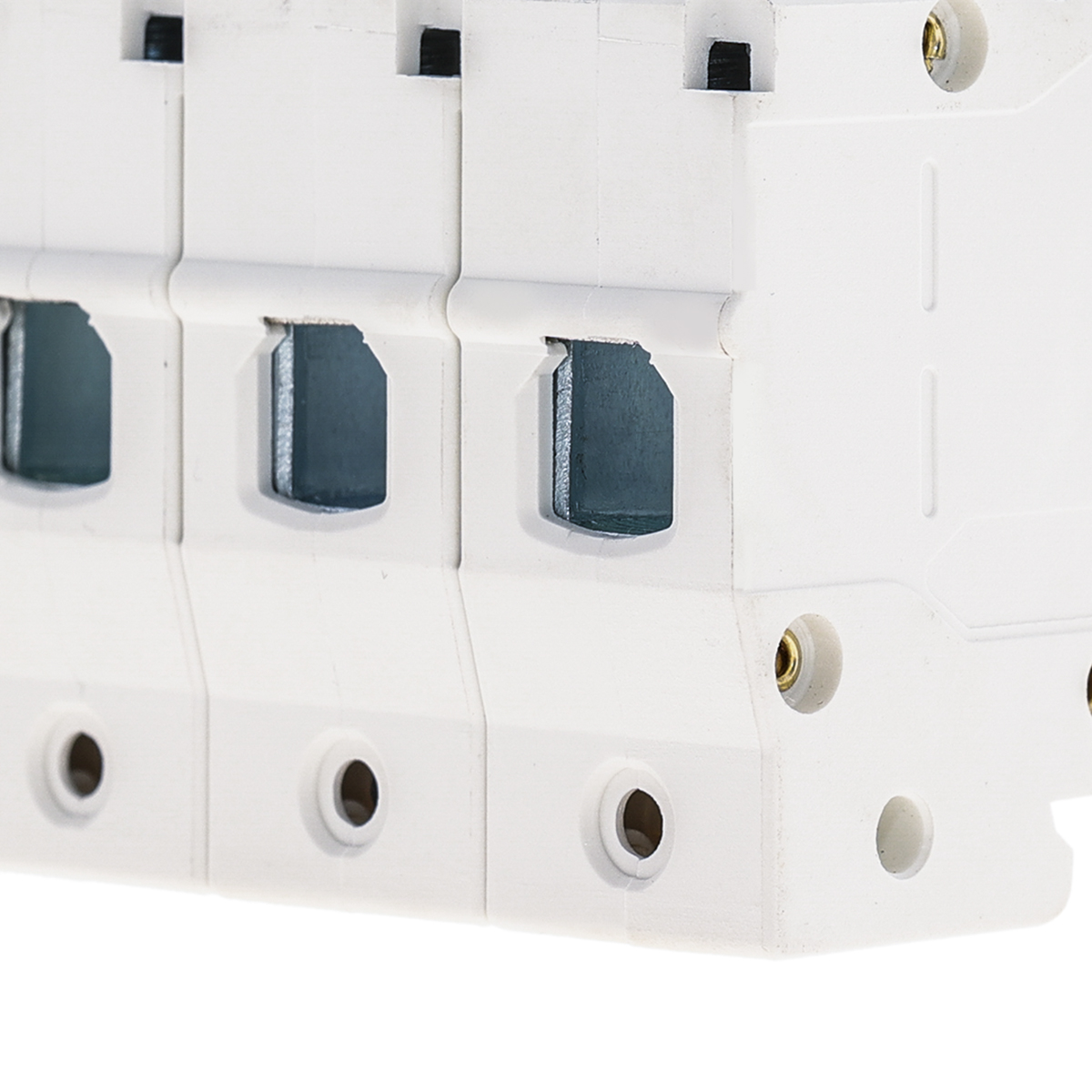

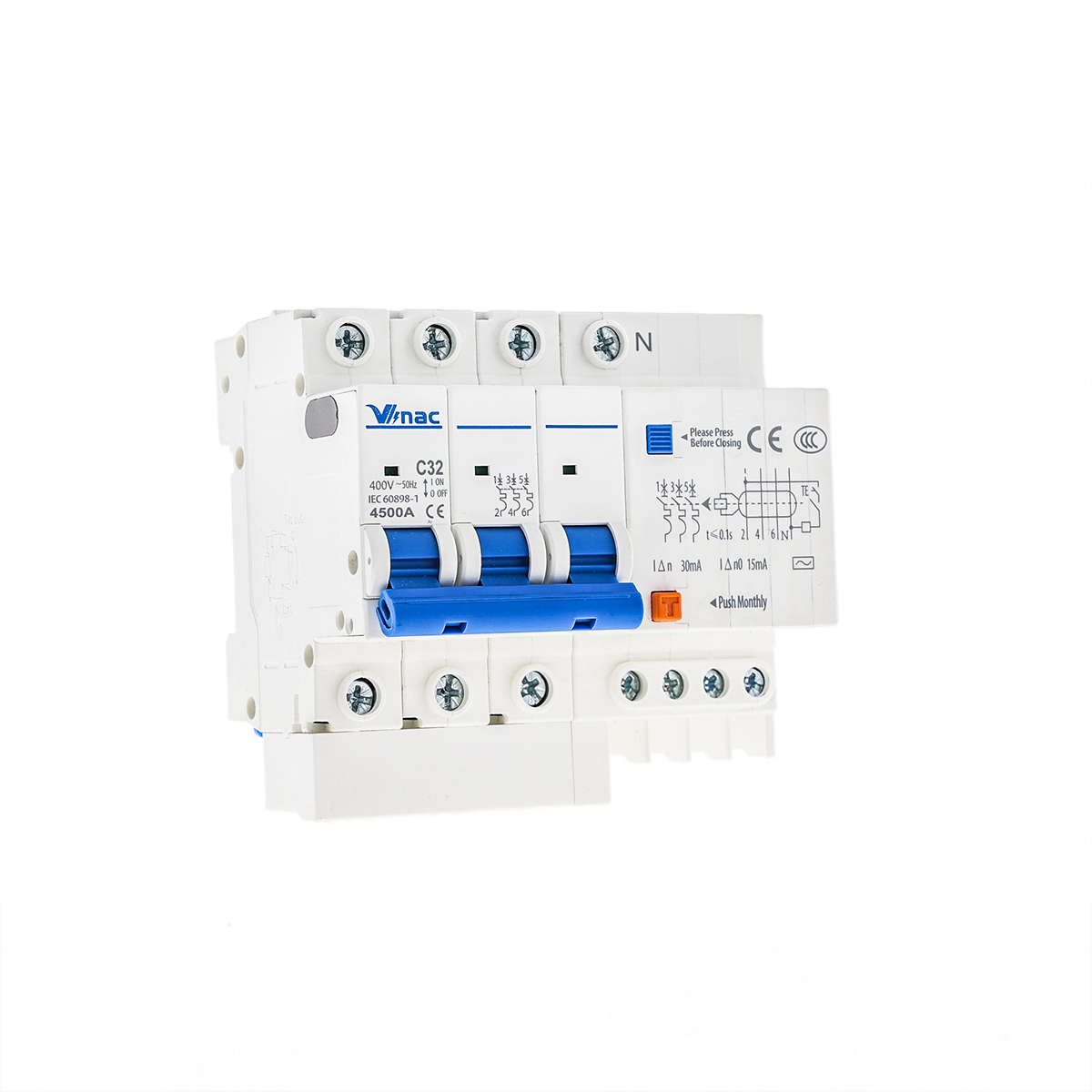

Frame current A: 63A Breaking capacity KA: 4kA Releaser accessories: Instantaneous releaser Tripping characteristics: C3C Rated voltage range 50V-440V or less Electrical life times: 4000 times Rated voltage V: AC400V Frame code: DZ47LE-63 Protection type: Leakage protection Releaser type: Shunt releaser Tripping mode: Shunt release Wiring method: Screw type Installation method: Guide rail Weight: 0.372KG Mechanical life times: 6000 times

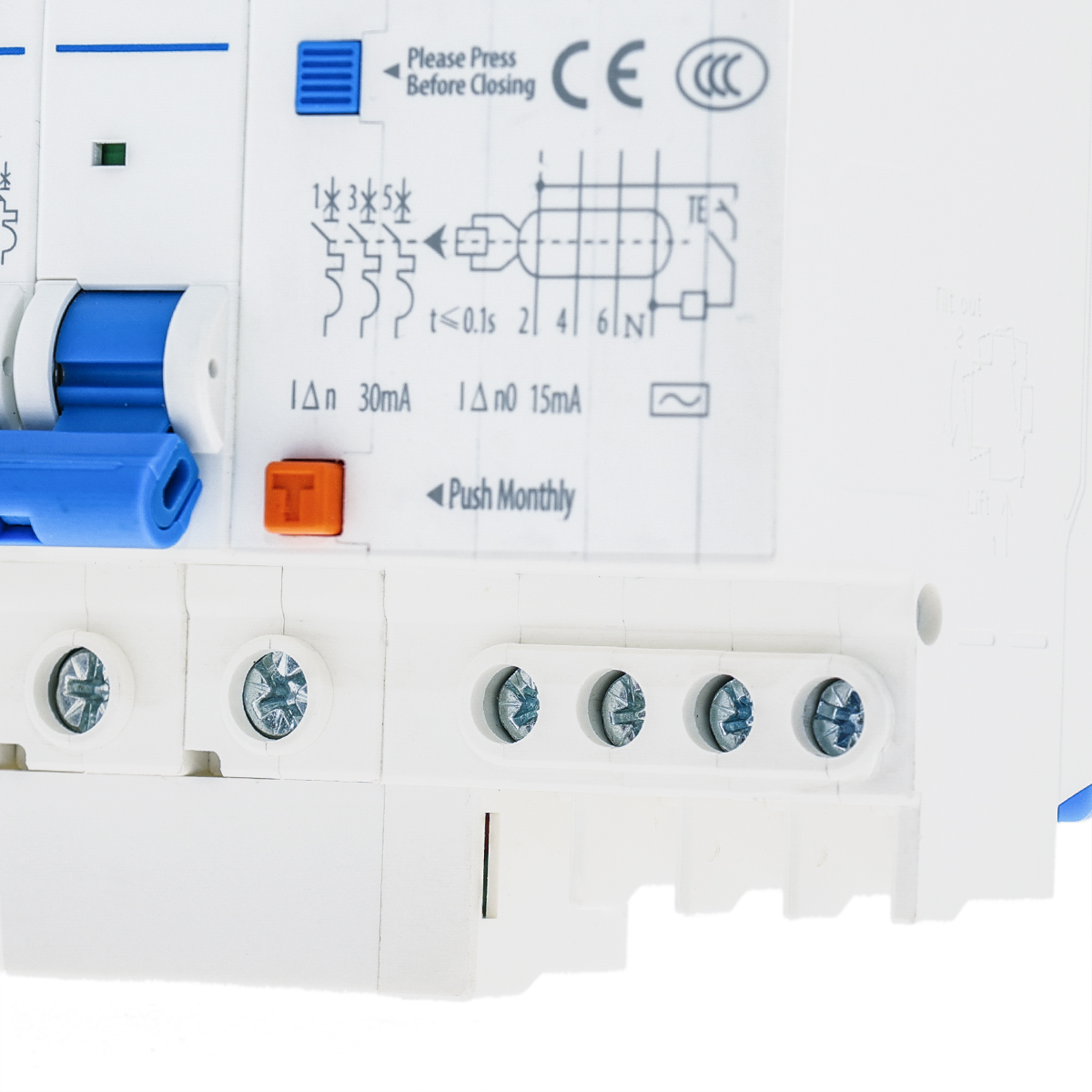

1. Protection against overload and short-circuit currents.
2. Protection against the effects of sinusoidal alternating earth fault currents.
3. Protection against indirect contacts and additional protection against direct contacts.
4. Protection against fire hazard caused by insulation faults.
5. Used in residential building.

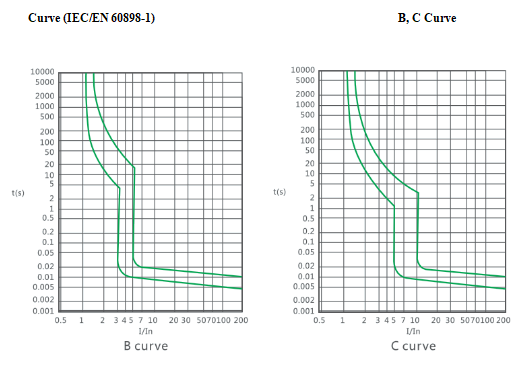

6. According to the type of instantaneous release classified as follows:type B(3-5)In, type C(5-10)In.

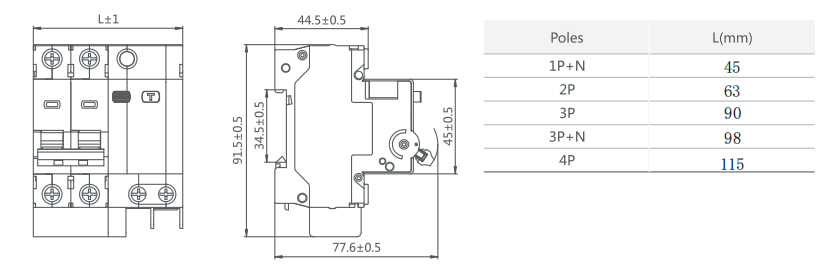

Type | Test current | Tripping time | Type | Test current | Tripping time |
B, C | 1. 13In | t≥1h(In≤63A) | B | 3In | t≥0. 1s |
1. 13In | t≥2h(In>63A) | ||||
C | 5In | t≥0. 1s | |||
B, C | 1. 45In | t<1h(In≤63A) | |||
1. 45In | t<2h(In>63A) | B | 5In | t<0. 1s | |
B, C | 2. 55In | 1s<t<60s(In≤32A) | |||
C | 10In | t<0. 1s | |||
2. 55In | 1s<t<120s(In>32A) |
Type | Standard |
| IEC/EN 61009-1 |
Electrical features | Poles | P | 1P+N, 2, 3, 3P+N, 4 |
Type(wave form of the earth leakage sensed) |
| AC | |
Thermo-magnetic release characteristic |
| B, C | |
Rated current In | A | 6, 10, 16, 20, 25, 32, 40, 50, 63 | |
Rated voltage Ue | V | 230/400 | |
Rated sensitivity I△n | A | 0. 03, 0. 05, 0. 1, 0. 3 | |
Rated residual making and breaking capacity I△m | A | 500(In≤40A)630(In>40A) | |
Rated short-circuit capacity Icn | A | 4500, 6000 | |
Break time under I△n | S | ≤0. 1 | |
Rated frequency | Hz | 50/60 | |
Rated impulse withstand voltage(1. 2/50)Uimp | V | 4000 | |
Dielectric test voltage at ind. Freq. for 1min | KV | 2 | |
Insulation voltage Ui | V | 500 | |
Pollution degree |
| 2 | |
Mechanical features | Electrical life | t | 2000 |
Mechanical life | t | 2000 | |
Contact position indicator |
| Yes | |
Protection degree |
| IP20 | |
Ambient temperature(with daily average≤35℃) | ℃ | -5~+40 | |
Storage temperature | ℃ | -25~+70 | |
Installation | Terminal connection type |
| Cable/Pin-type busbar |
Terminal size top/bottom for cable | mm² | 25 | |
AWG | 18-3 | ||
Terminal size top/bottom for busbar | mm² | 25 | |
AWG | 18-3 | ||
Tightening torque | N*m | 2 | |
In-Ibs | 18 | ||
Mounting |
| On DIN rail EN60715(35mm)by means of fast clip device | |
Connection |
| From top |
