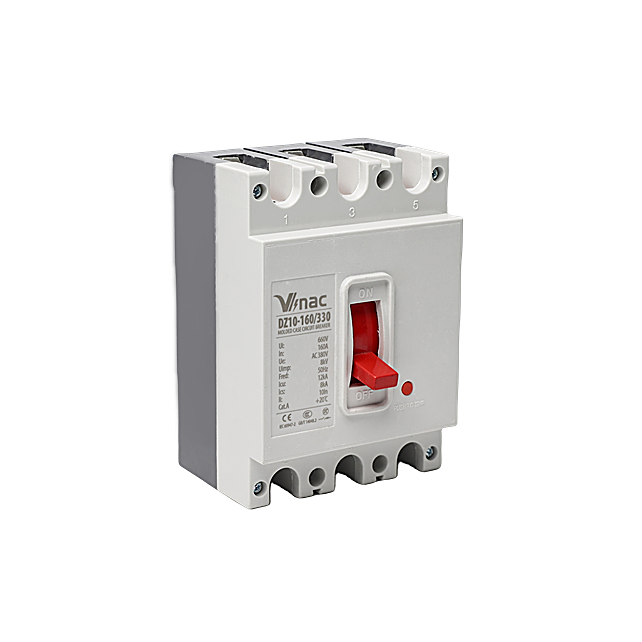

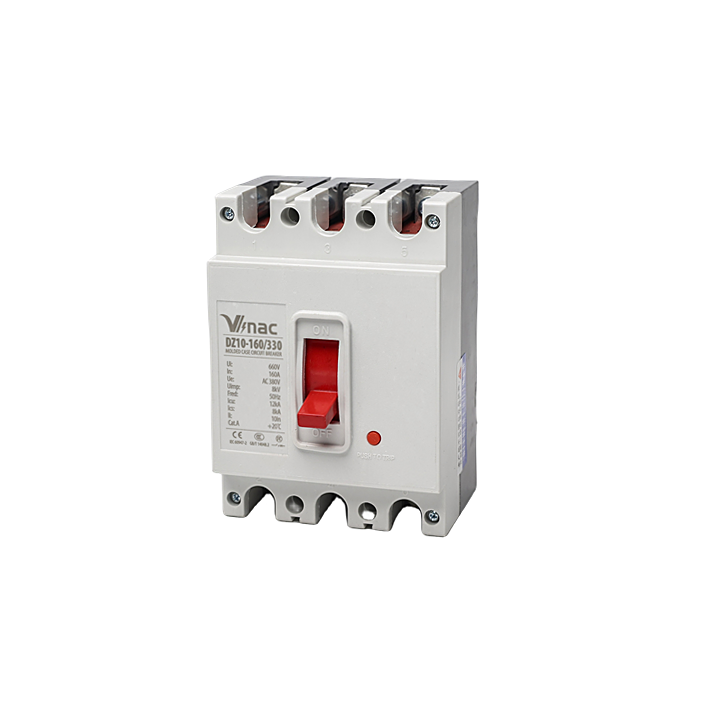

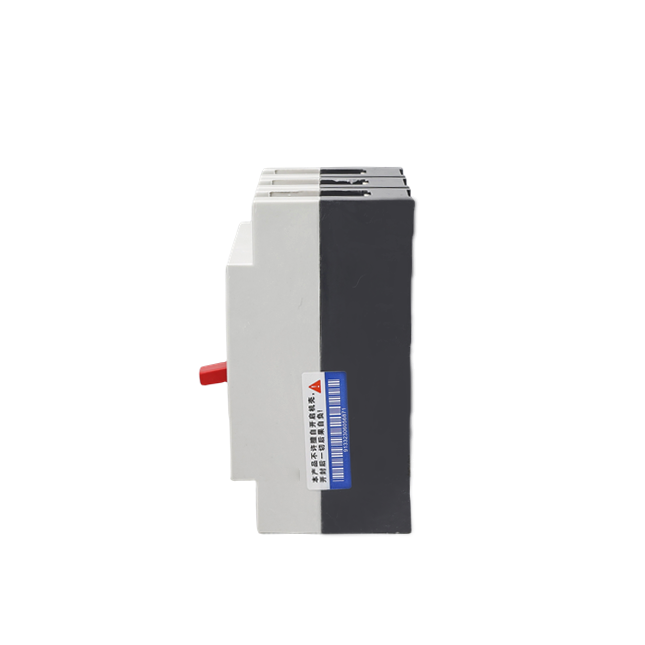

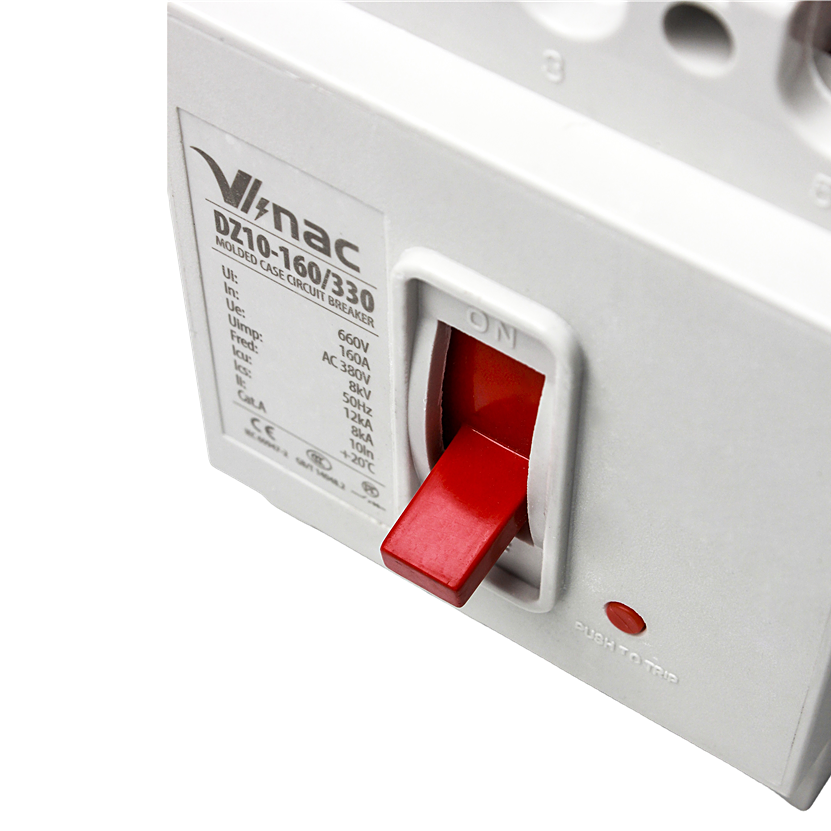

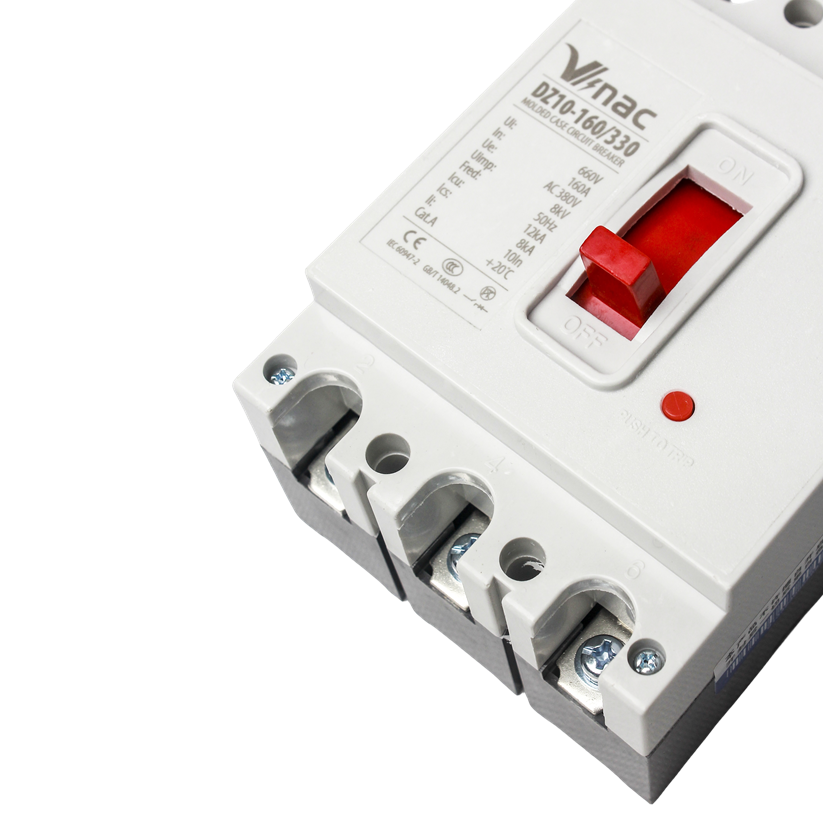

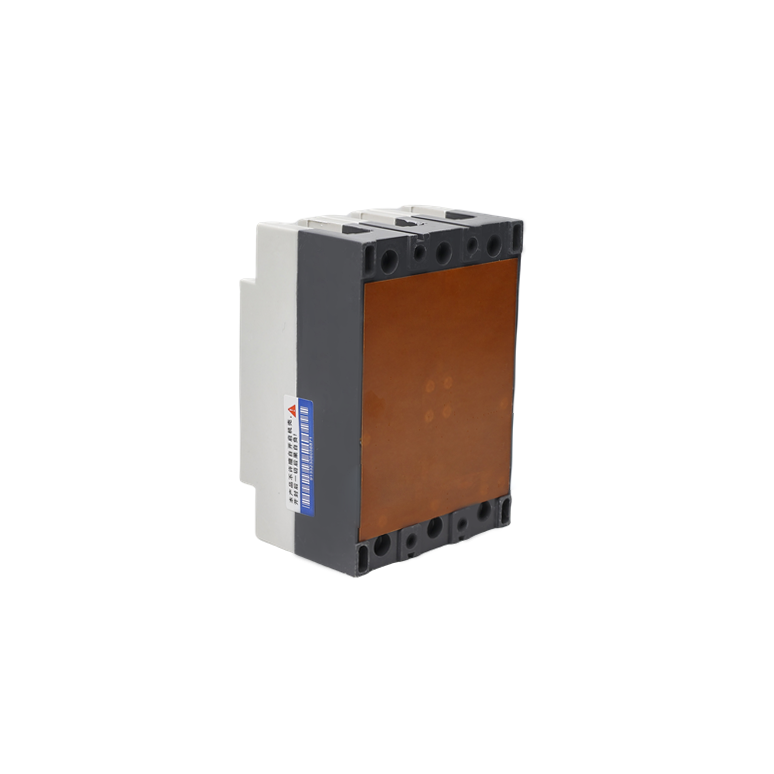

DZ10-100/330,DZ10-160/330,DZ10-250/330,DZ10-400/330 Frame current 250 (A) Rated current 250A Rated working voltage 100A Release rated current 100A Rated insulation voltage 380V Rated operating short-circuit segmentation capacity Ics 3kA (KA) Rated ultimate short-circuit breaking capacity Icu 5kA (KA)
Suitable for distribution networks with AC frequency of 50Hz, voltage up to AC400V, and current up to 600A, used for distributing electrical energy, overload and under voltage, and short circuit protection of power lines and equipment, as well as for infrequent disconnection and connection of power lines under normal working conditions.
This product complies with GB14048. 2 standard.

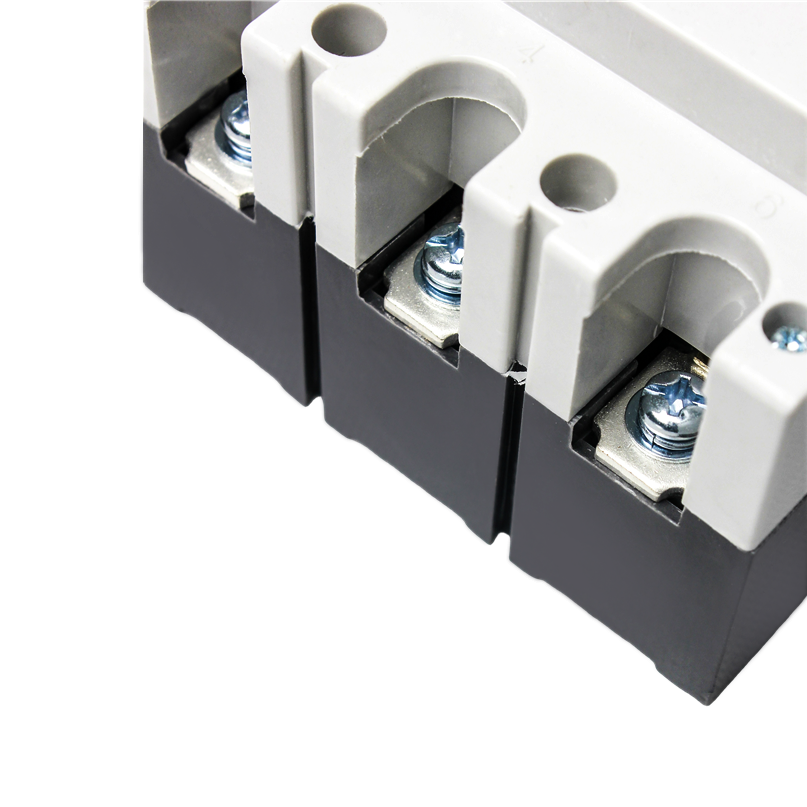

The insulation base and cover are pressed with Thermoplastic. The operating mechanism is a four link type. The release is divided into multiple type (equipped with overload protection and short circuit protection), electromagnetic type (equipped with short circuit protection), and thermal release type (equipped with overload protection). There are two types of wiring methods: front and back.
Classification of circuit breaker separation and code for accessories
Attachment Category | Without attachments | Shunt excitation separator | Auxiliary contact | Lack of voltage separator | Shunt separator Auxiliary | Lack of Shunt separator | Two sets of auxiliary contacts | Lack of voltage separator Auxiliary contact |
Code separation method | ||||||||
No release Thermal release Electromagnetic type Compound | 00 10 20 30 | 11 21 31 | 02 12 22 32 | 13 23 33 | 14 24 34 | 15 25 35 | 06 16 26 36 | 17 27 37 |
1. Main technical parameters
*Normally, the instantaneous action setting current value is 10In. If the user needs other setting values,
please consult with our company
Model | DZ10-100 | DZ10-250 | DZ10-600 | |||
Rated operational voltage/Ue(v) | AC380 | |||||
Inm(A) | 100 | 250 | 600 | |||
Number of poles | 2. 3 | |||||
Rated current of separator/ln(A) | 15 20 | 25. 30 40. 50 | 60. 80 100 | 100. 120. 140. 150. 170. 200. 250 | 200. 250. 300. 350. 400. 500. 600 | |
Separator current Ir(×ln) | Duplex structure | 10 | ||||
Electromagnetic type | 10 | 5, 10 | 5, 10 | |||
Rated limit short circuit (KA) | AC380V | 6 | 10 | 12 | 20 | 25 |
COS φ | 0. 7 | 0. 5 | 0. 3 | 0. 3 | 0. 25 | |
Rated voltage of shunt separator (v) | AC:220. 380 | |||||
Lack of rated voltage for voltage separator(v) | AC:220. 380 | |||||
Electric operating mechanism(v) | AC:220 AC:380 | |||||
Auxiliary contact | AC380V Up to two open and two closed | AC380V Up to four open and four closed | AC380V Up to six open and six closed | |||
Lifetime (thousands of times) | Electrical | 5 | 4 | 2 | ||
Machinery | 10 | 8 | 6 | |||
Operation frequency (times/h) | 60 | 30 | 30 | |||
2. The reverse time limit breaking characteristic of the overcurent release when the circuit breaker is opened under overload conditions (reverse time action), and allpoles are energized simultaneously at the ambient air temperature of+40℃

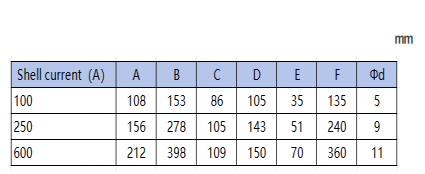

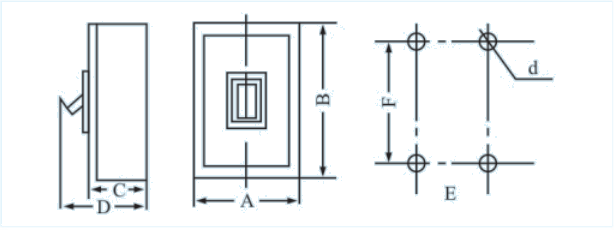

Test current name | Initial state | I/n | Appointed time | |||
Inm=100(A) | Inm(A) | |||||
Inm≤63 | 63<In≤100 | 250 | 600 | |||
Agree not to separate current | Cold | 1. 05 | 1h | 2h | 2h | |
Agreed separation current | Hot | 1. 3 | 1h | 2h | 2h | |
Returnable current | Cold | 3 | Returnable time | |||
5s | 8s | 8s | 12s | |||
