VINAC

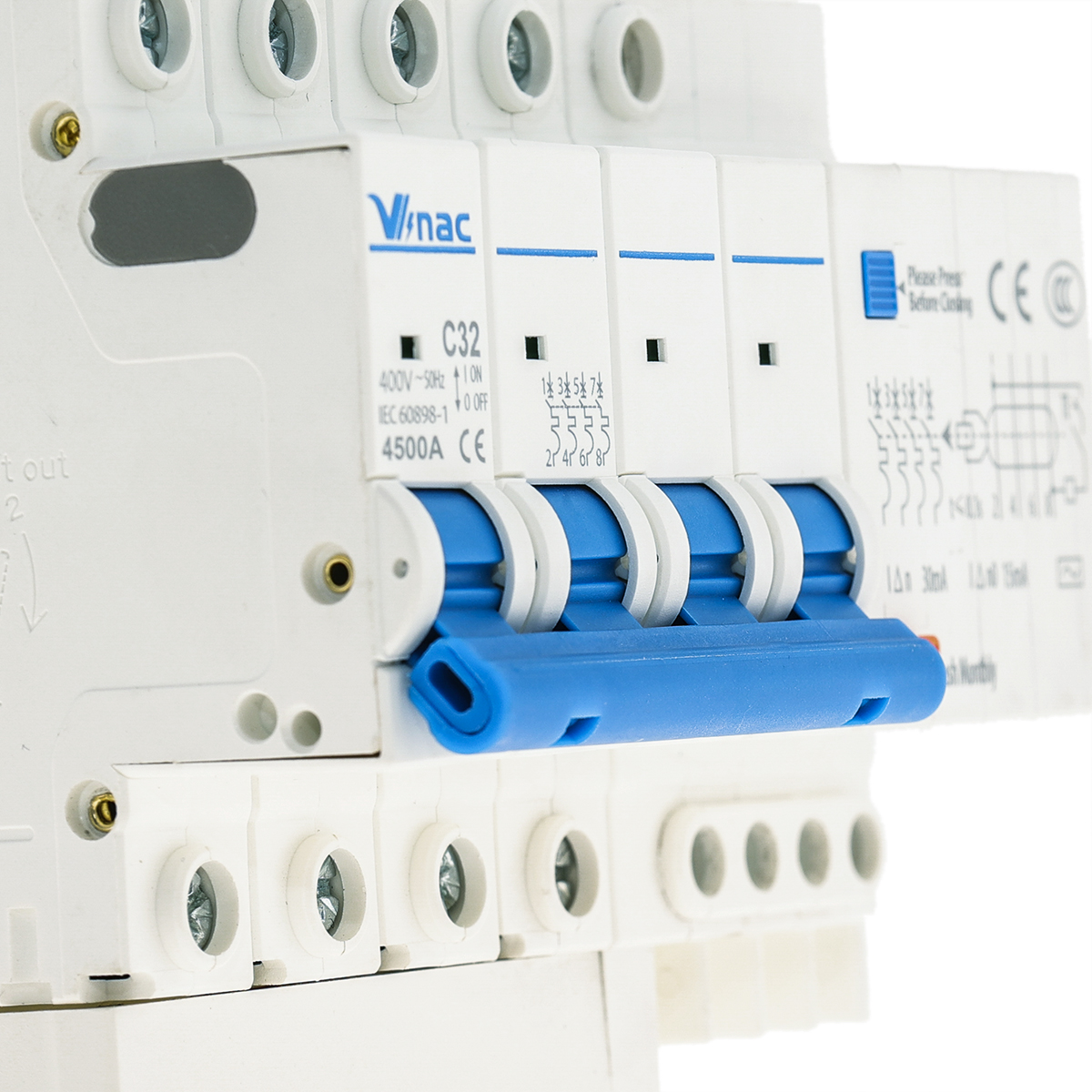

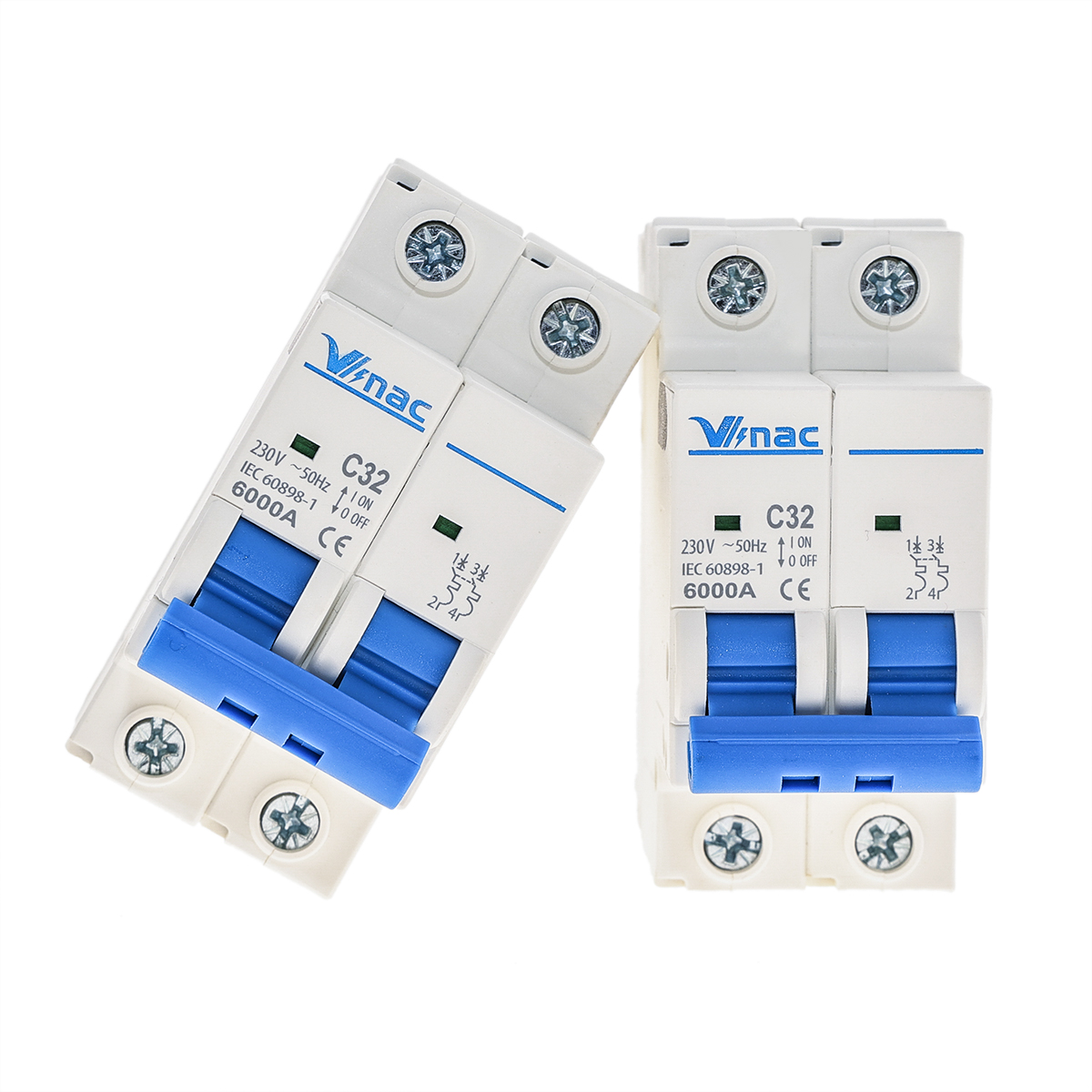

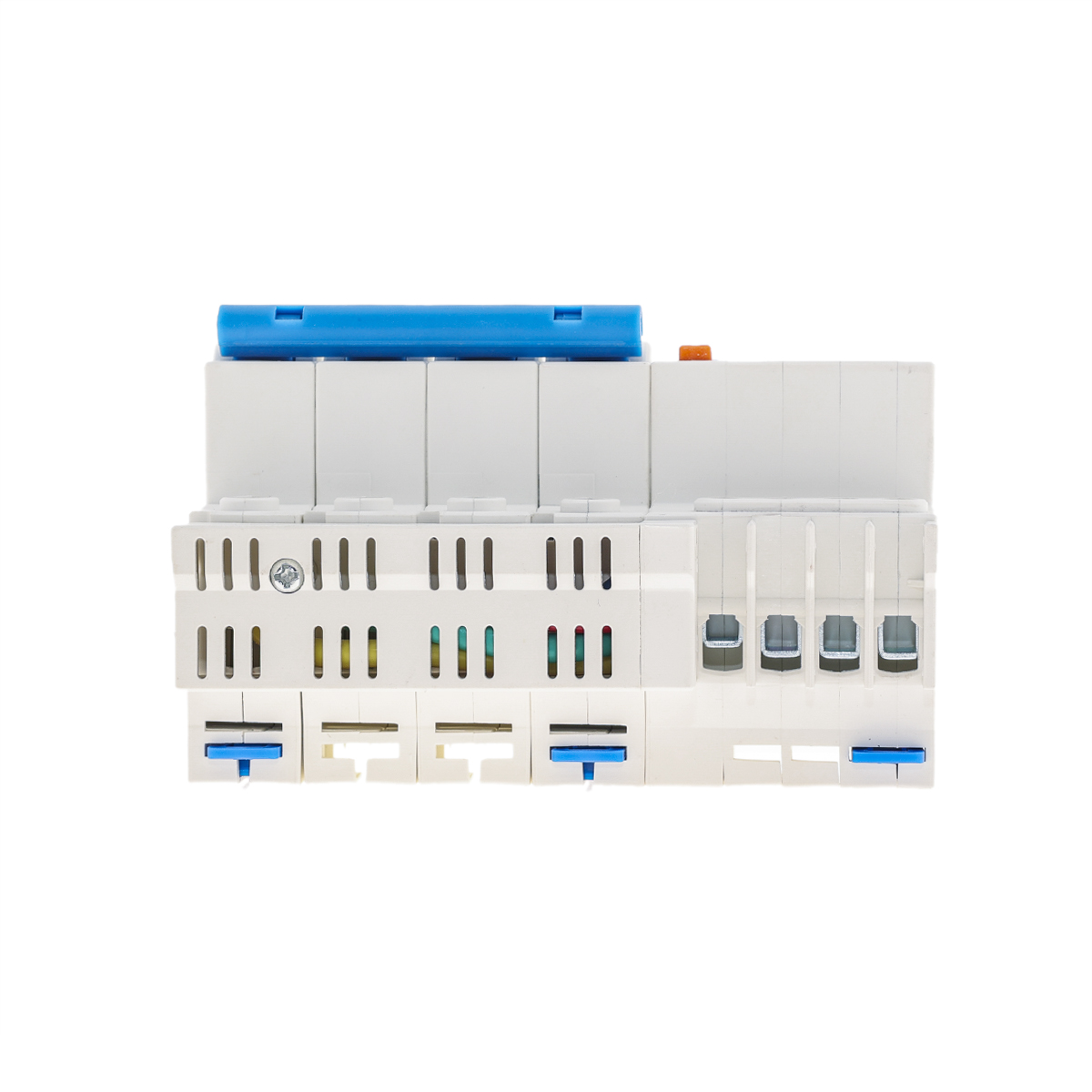

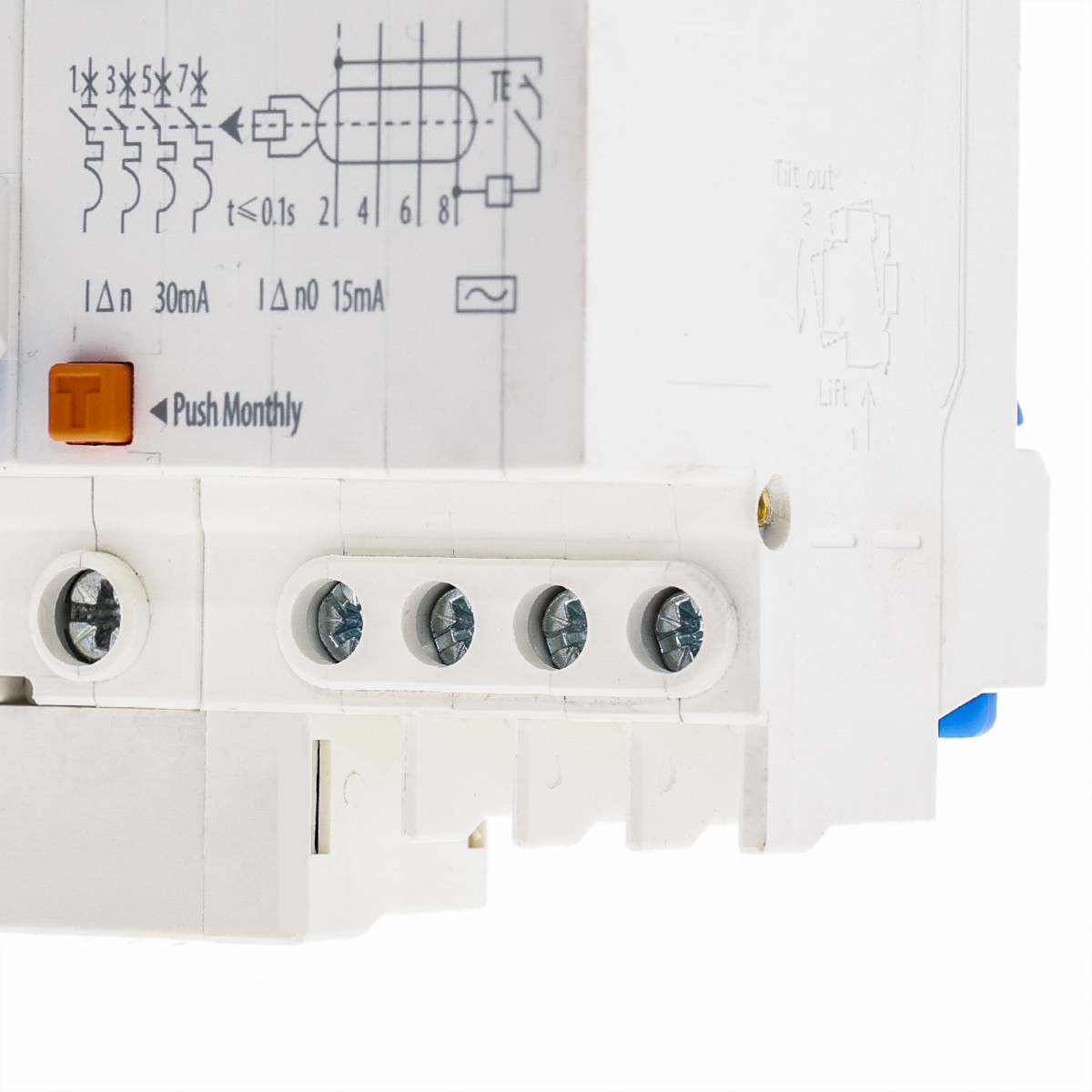

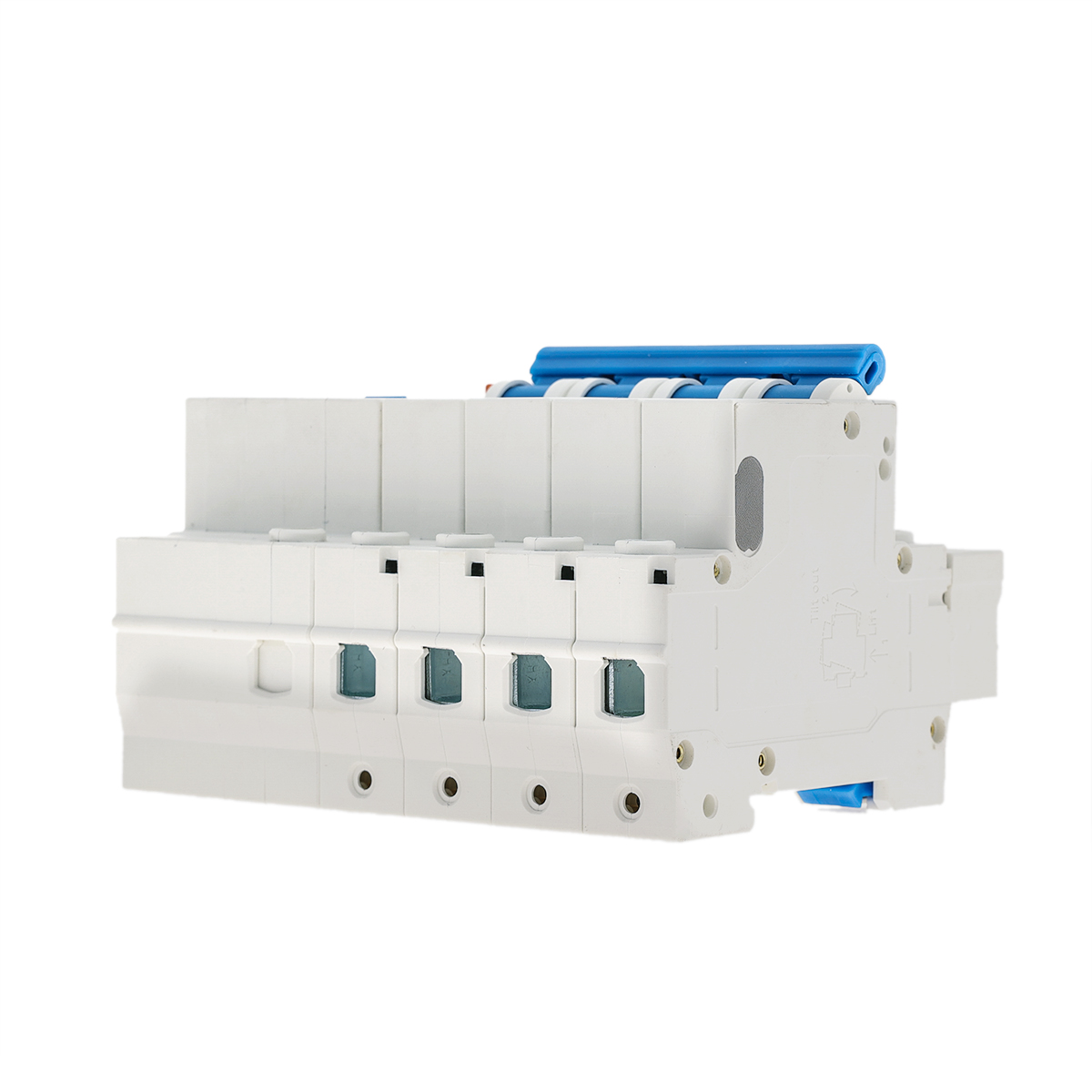

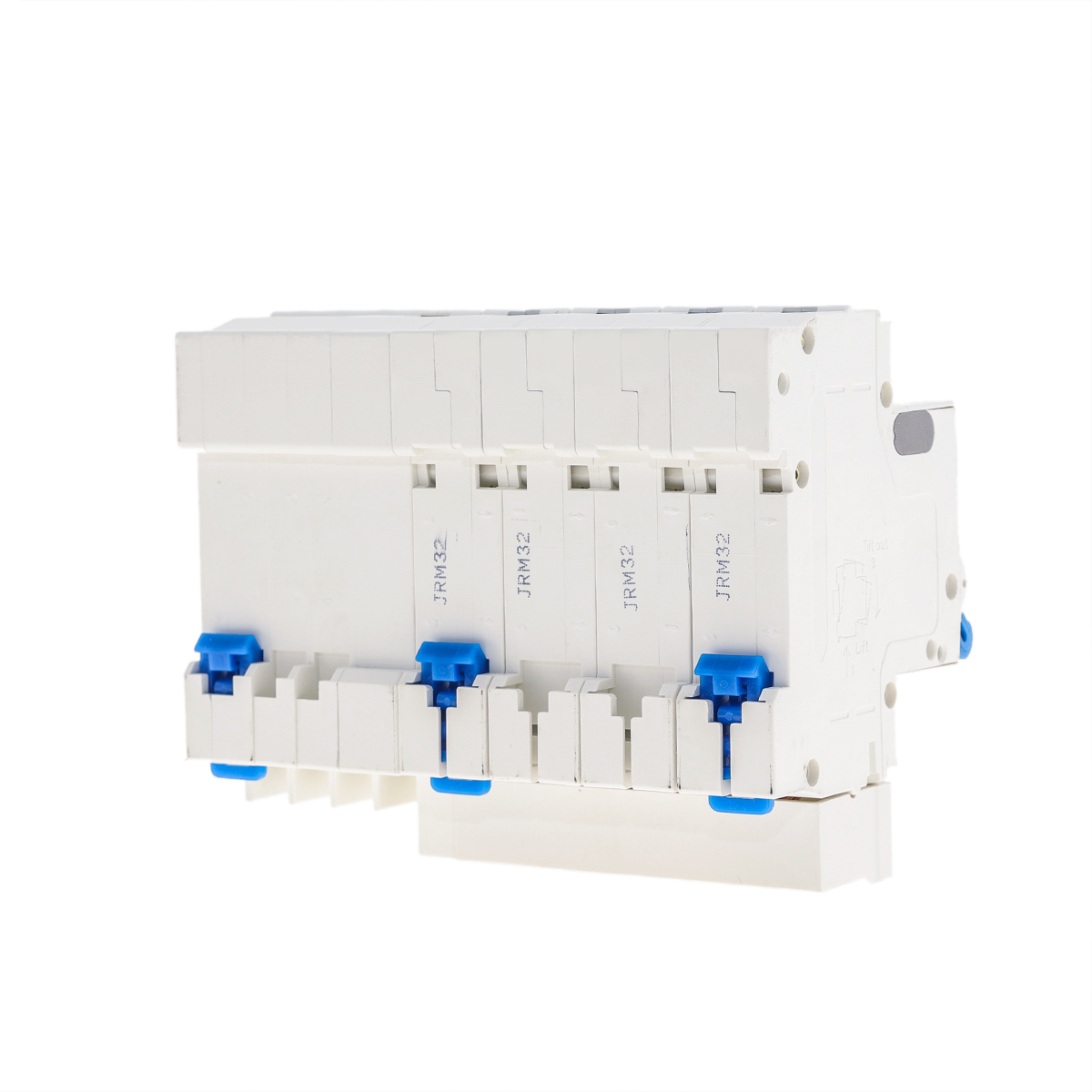

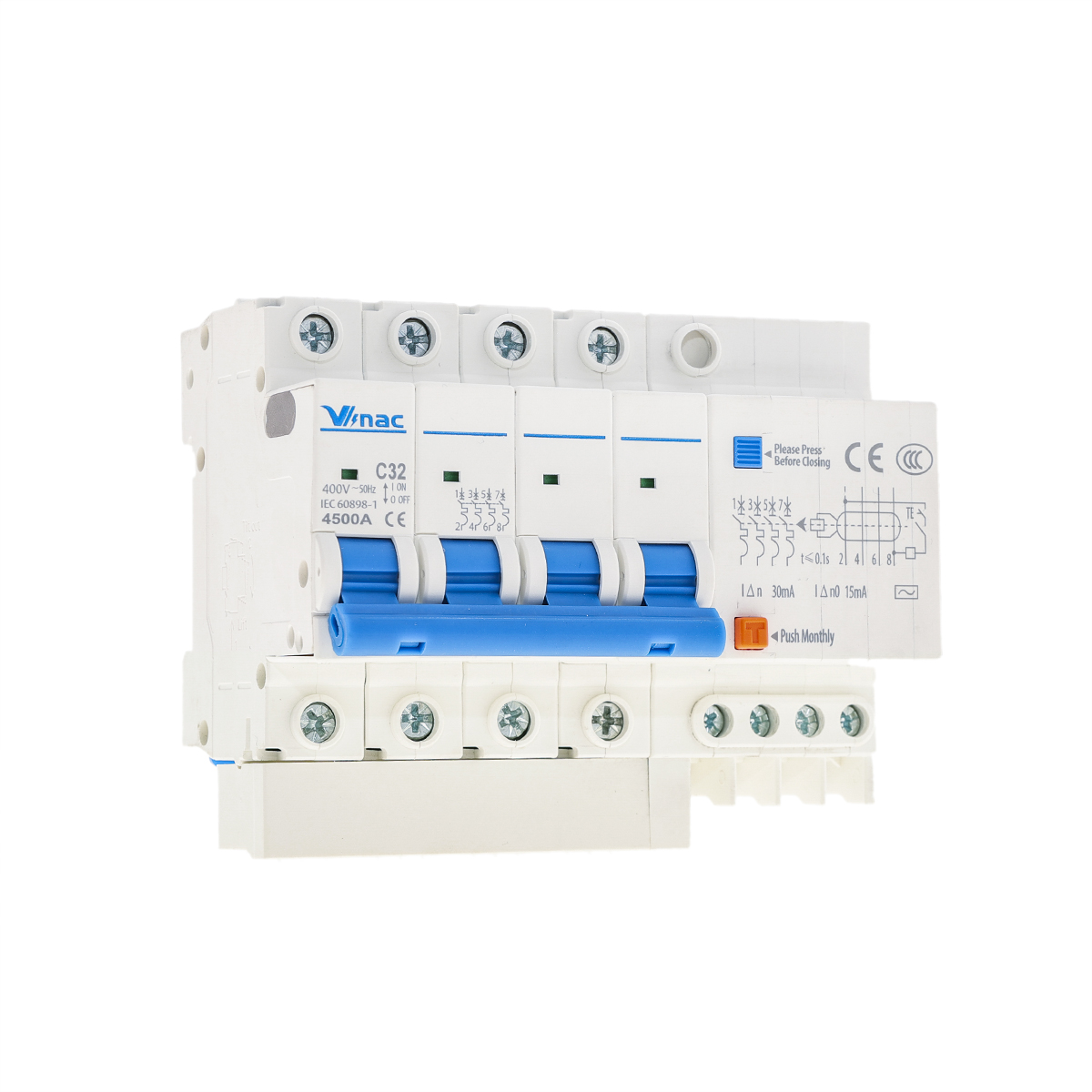

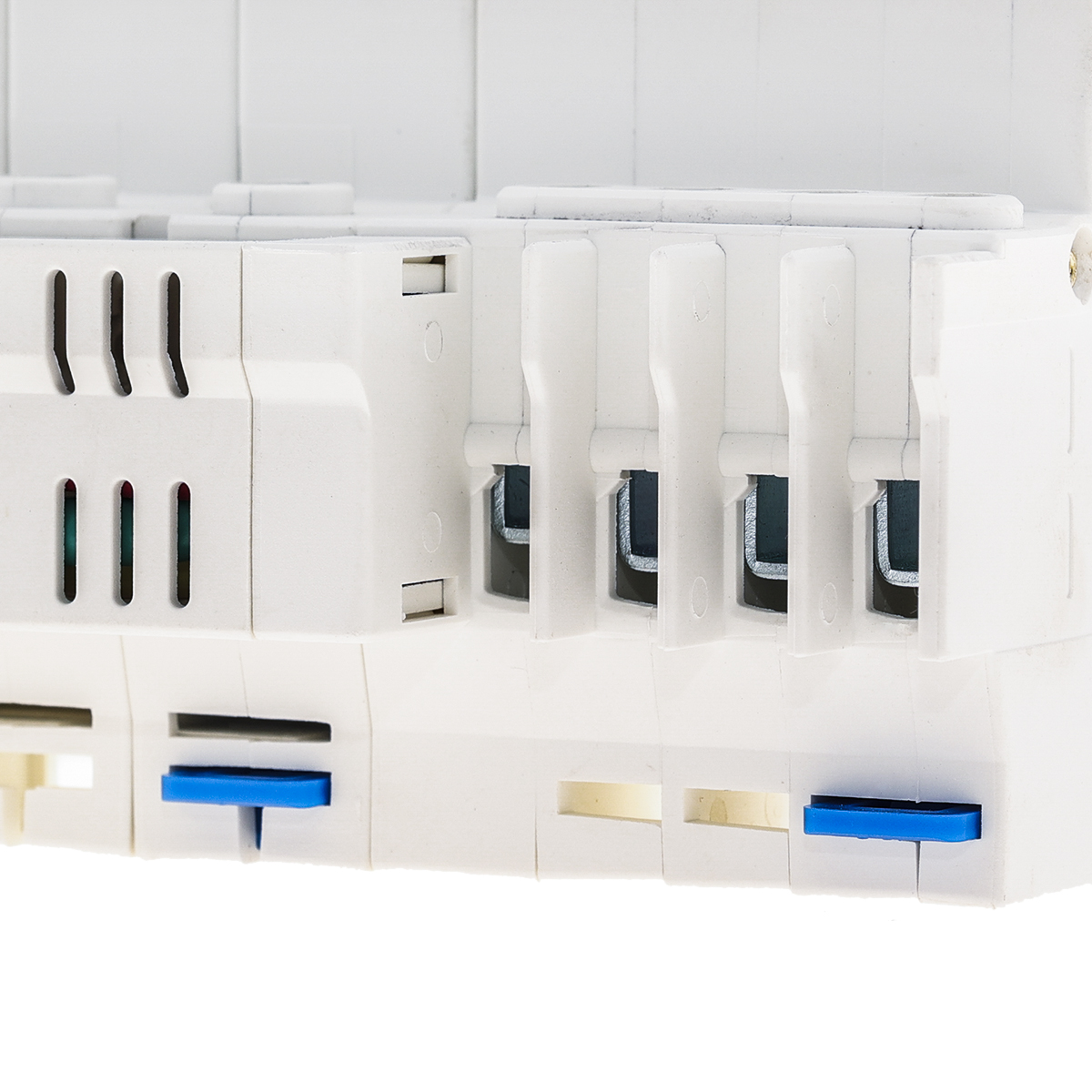

Frame current A: 63A Release accessories: Instantaneous release Electrical life times: 4000 times Tripping characteristics: C Frame code: DZ47-63 Protection type: Overload protection Release type: Shunt release Tripping mode: Shunt trip Wiring method: Screw type Installation method: Guide rail Mechanical life times: 16000 times 3C Rated voltage range V: 230V above 400V
1. Overload protection
2. Short circuit protection
3. Controlling
4. Used in residential building, non-residential building, energy source industry and infrastructure.
5. According to the type of instantaneous release classified as follows:type B(3-5)In, type C(5-10)ln, type D(10-16)In
Type | Test current | Tripping time | Type | Test current | Tripping time |
B, C, D | 1. 13In | t≤1h(In≤63A) | B | 3In | t≤0. 1s |
1. 13In | t≤2h(In>63A) | C | 5In | t≤0. 1s | |
B, C, D | 1. 45In | t<1h(In≤63A) | D | 10In | t≤0. 1s |
1. 45In | t<2h(In>63A) | B | 5In | t<0. 1s | |
B, C, D | 2. 55In | 1s<t<60s(In≤32A) | C | 10In | t<0. 1s |
2. 55In | 1s<t<120s(In>32A) | D | 16In | t<0. 1s |
Type | Standard |
| IEC/EN 60898-1 |
Electrical features | Rated current In | A | 1, 2, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63 |
Poles | P | 1, 2, 3, 4 | |
Rated voltage Ue | V | 230/400;240/415 | |
Insulation voltage Ui | V | 500 | |
Rated frequency | Hz | 50/60 | |
Rated breaking capacity | A | 45, 006, 000 | |
Rated impulse withstand voltage (1. 2/50) Uimp | V | 6000 | |
Dielectric test voltage at ind. Freq. for 1min | KV | 2 | |
|
| 2 | |
Thermo-magnetic release characteristic |
| B, C, D | |
Mechanical features | Electrical life | t | 6000 |
Mechanical life | t | 20000 | |
Protection degree |
| IP20 | |
Reference temperature for thermal element setting | ℃ | 30 | |
Ambient temperature (with daily average≤35℃) | ℃ | -5~+40 | |
Storage temperature | ℃ | -25~+70 | |
Installation | Terminal connection type |
| Cable/Pin-type busbar |
Terminal size top/bottom for cable | mm² | 25 | |
AWG | 18~3 | ||
Terminal size top/bottom for busbar | mm² | 25 | |
AWG | 18~3 | ||
Tightening torque | N*m | 2 | |
In-Ibs | 18 | ||

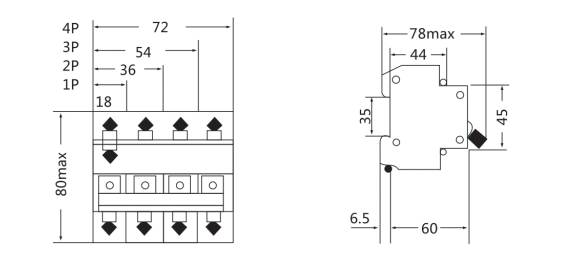

Mounting |
| On DIN rail EN 60715(35mm) by means of fast clip device | |
Connection |
| From top and bottom |
