Technical Parameters

Measured Medium: Liquid (mildly corrosive)

Measurement Range: 0-0.1, 0.2, 0.35, 0.5, 0.7, 1.0, 20, and 2.5 MPa (selectable)

Output: 4-20 mA (two-wire), 0-5 VDC, 0-10 VDC, 0.5-4.5 VDC, 1-5 VDC (three-wire), RS485 (four-wire)

Overall Accuracy: ±0.25% FS

Power Supply: 24 VDC (12-36 VDC)

Insulation Resistance: ≥1000 Ω/100 VDC

Load Resistance: Current Output: Maximum 800Ω; Voltage Output: Greater than 50 kΩ

Media Temperature: -20-85°C

Ambient Temperature: -20-85°C

Storage Temperature: -40-90°C

Relative Humidity:

0-95% RH

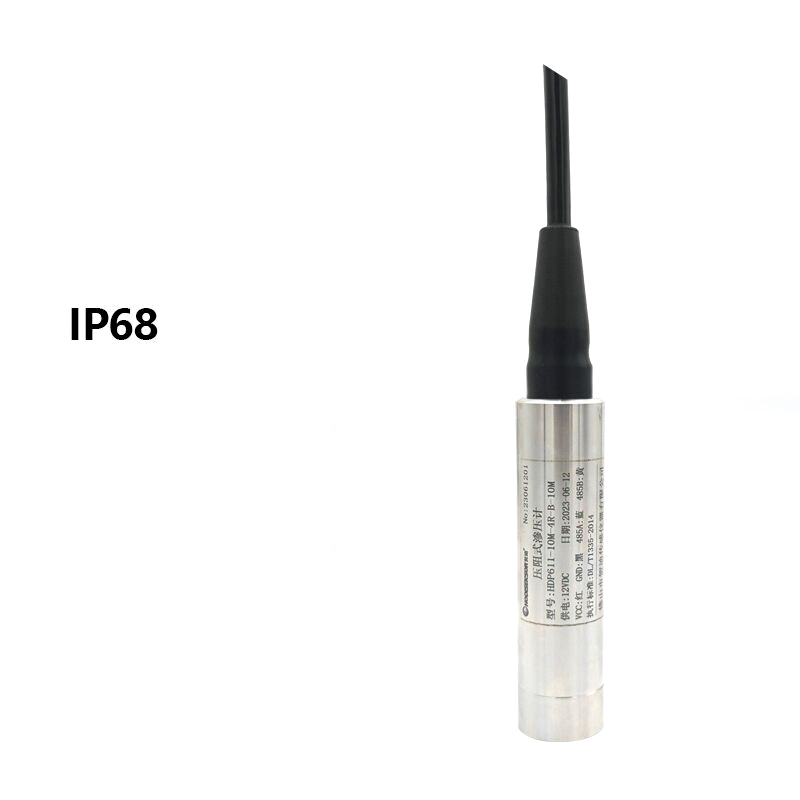

Sealing rating: IP68

Overload capacity:

150% FS

Response time: ≤5mS

Stability: ≤±0.15% FS/year

≤±0.15% FS/year (mechanical vibration frequency 20Hz-1000Hz)

Vibration impact:

Electrical connection: 4/5-core shielded cable, fully sealed; standard wiring is the range length plus 2 meters.

Pressure connection: Submersible

Connection thread material: 304/316L stainless steel
