Features:

Service life up to 100x10 times under various application conditions

Excellent linearity, up to ±0.04%

Resolution better than 0.01mm

High operating speed

DIN 43 650 standard plug and socket

IP 55 protection rating

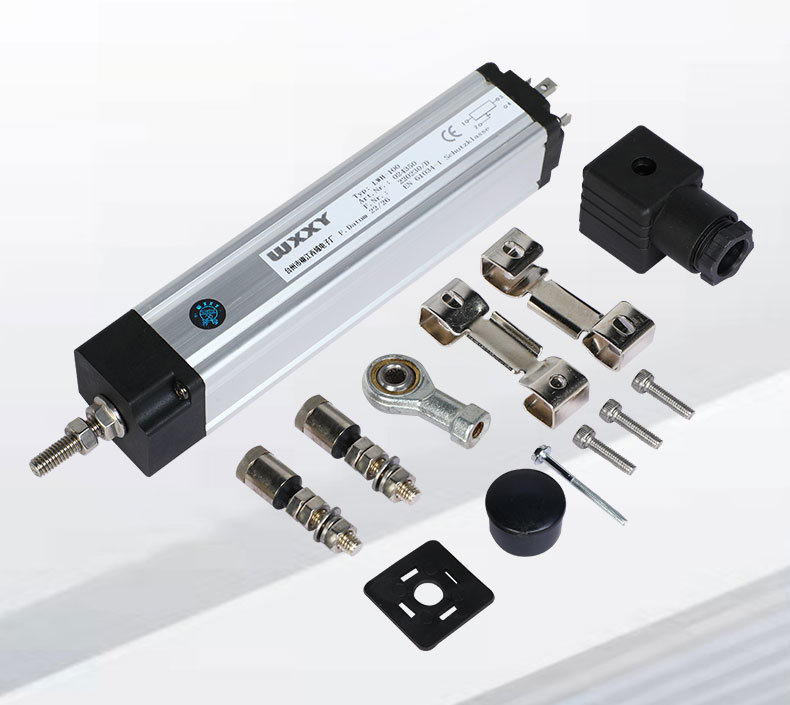

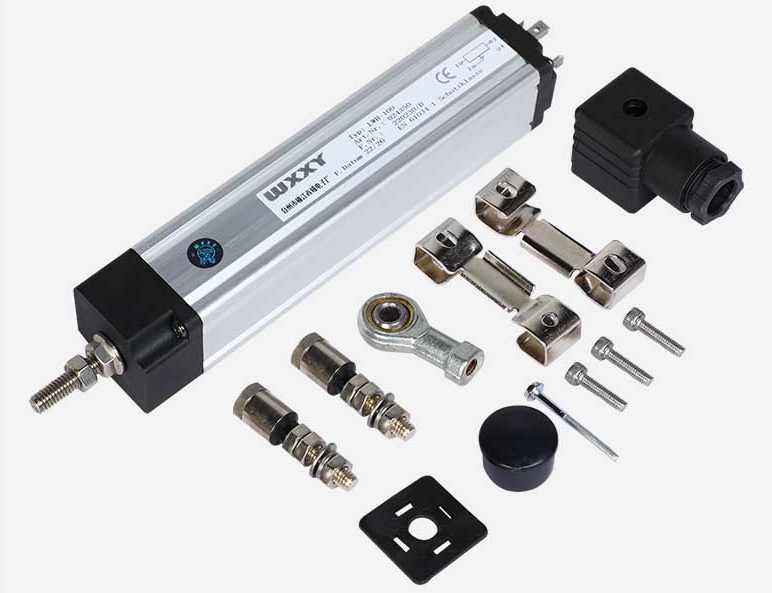

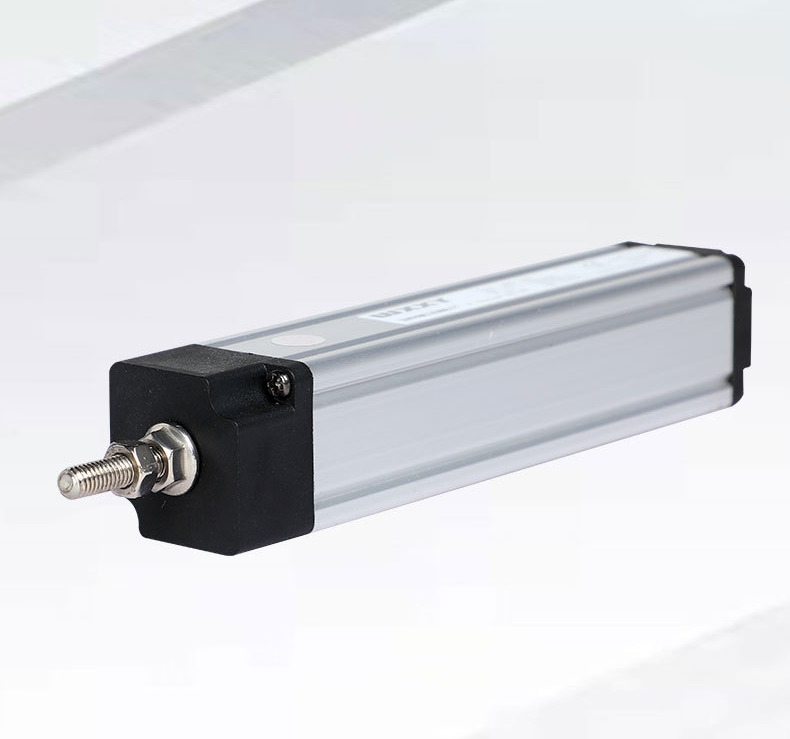

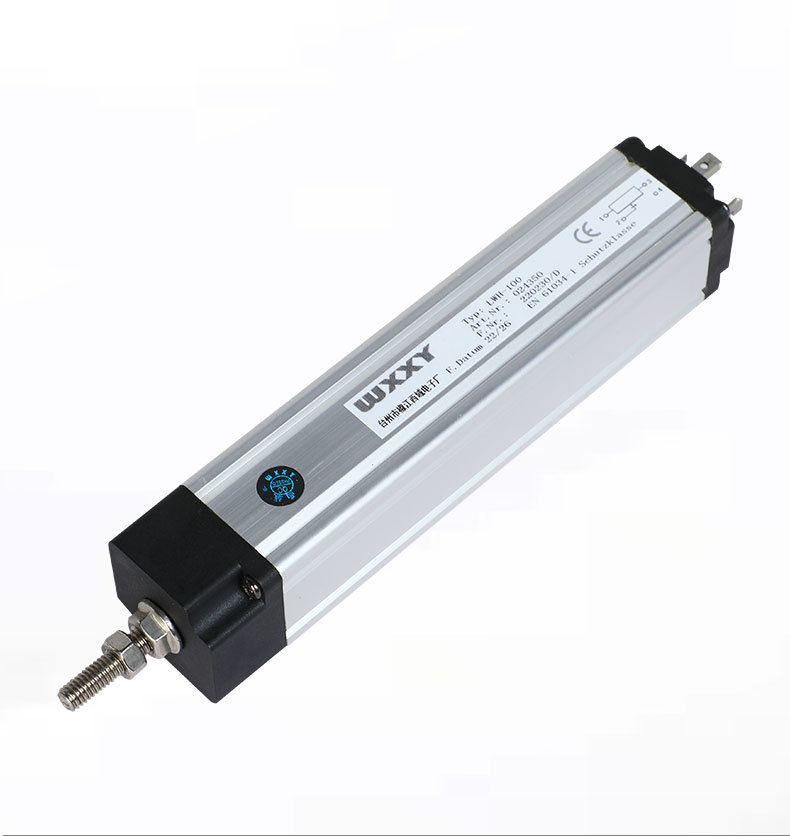

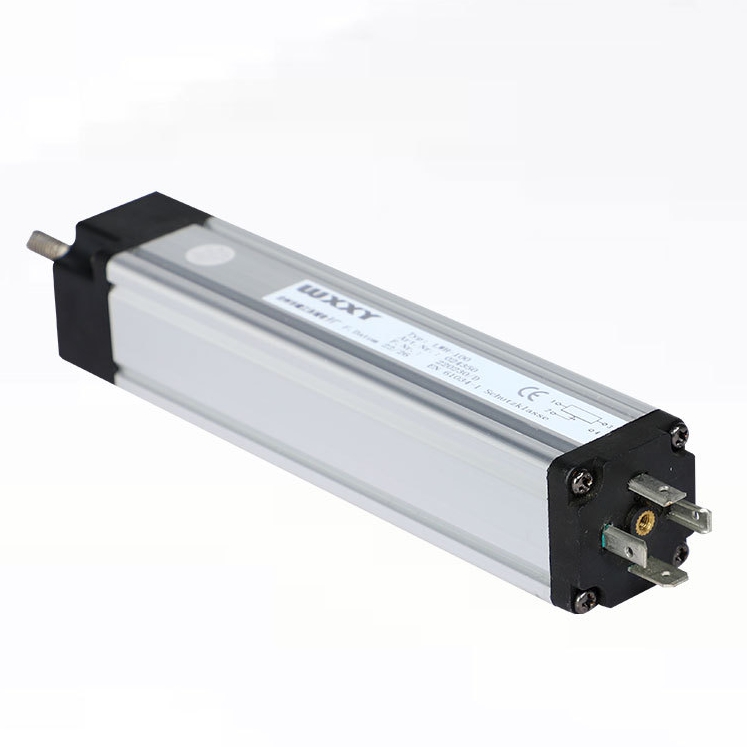

This series of sensors is used in measurement and control systems for direct and absolute measurement of displacement and length.

A maximum operating range of 900mm and high resolution (0.01mm) provide precise linear displacement measurement. The sensor's structural design is designed for easy installation and removal.

Specially treated internal and external surfaces ensure high-speed, low-wear operation. A flexible buffer bearing at the sensor's front end absorbs minor lateral stresses on the drive rod, ensuring proper sensor operation. The sensor's conductive material fixing and structural design ensure reliable operation even under the harshest conditions.

Mounting slots on all four sides of the sensor ensure that the conductive material is facing downward during installation, preventing the accumulation of small particles inside the sensor that could affect its lifespan. Description
