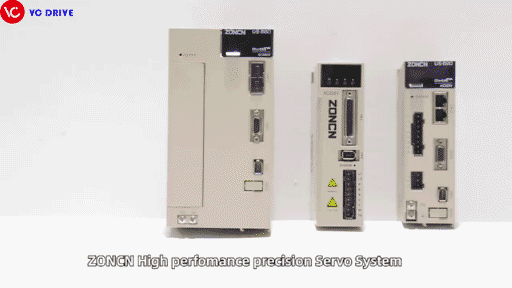

ZONCN US880/US810 Series AC Servo System

ZONCN US880/US810 Series AC Servo System

ZONCN

● Multi-function Control: Position/Velocity/Torque Control ● Electronic Gear Function ● Speed/Torque Limit Function ● Home Search Function ● Zero-Speed Lock Function ● Smooth Speed Command Ramp Function ● Dynamic Brake and Energy Consumption Brake ● Multiple Fault Protection Functions ● Soft Reset Function ● Support EtherCAT, Yaskawa M3 Bus Communication Protocol

send a message

Details
More

Details

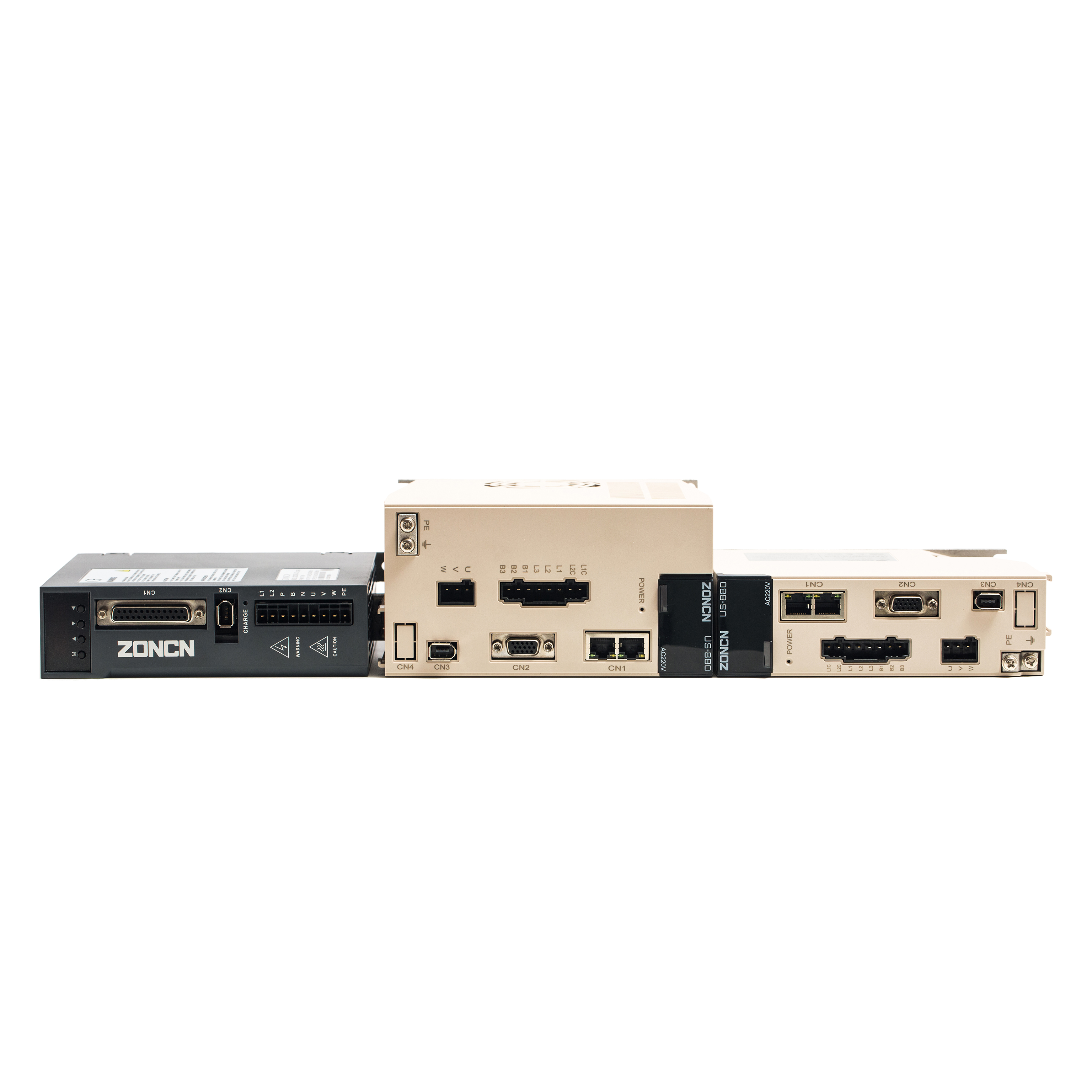

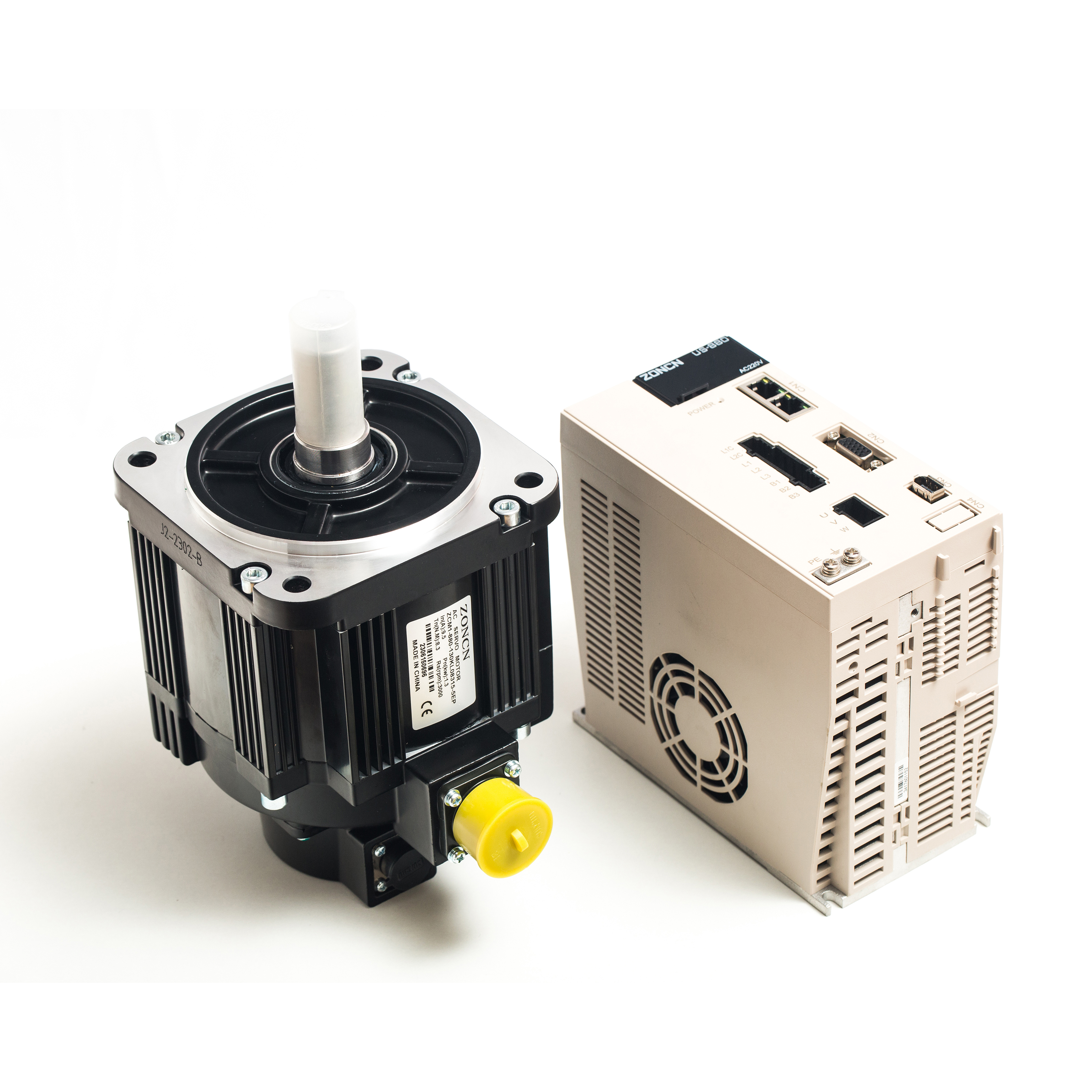

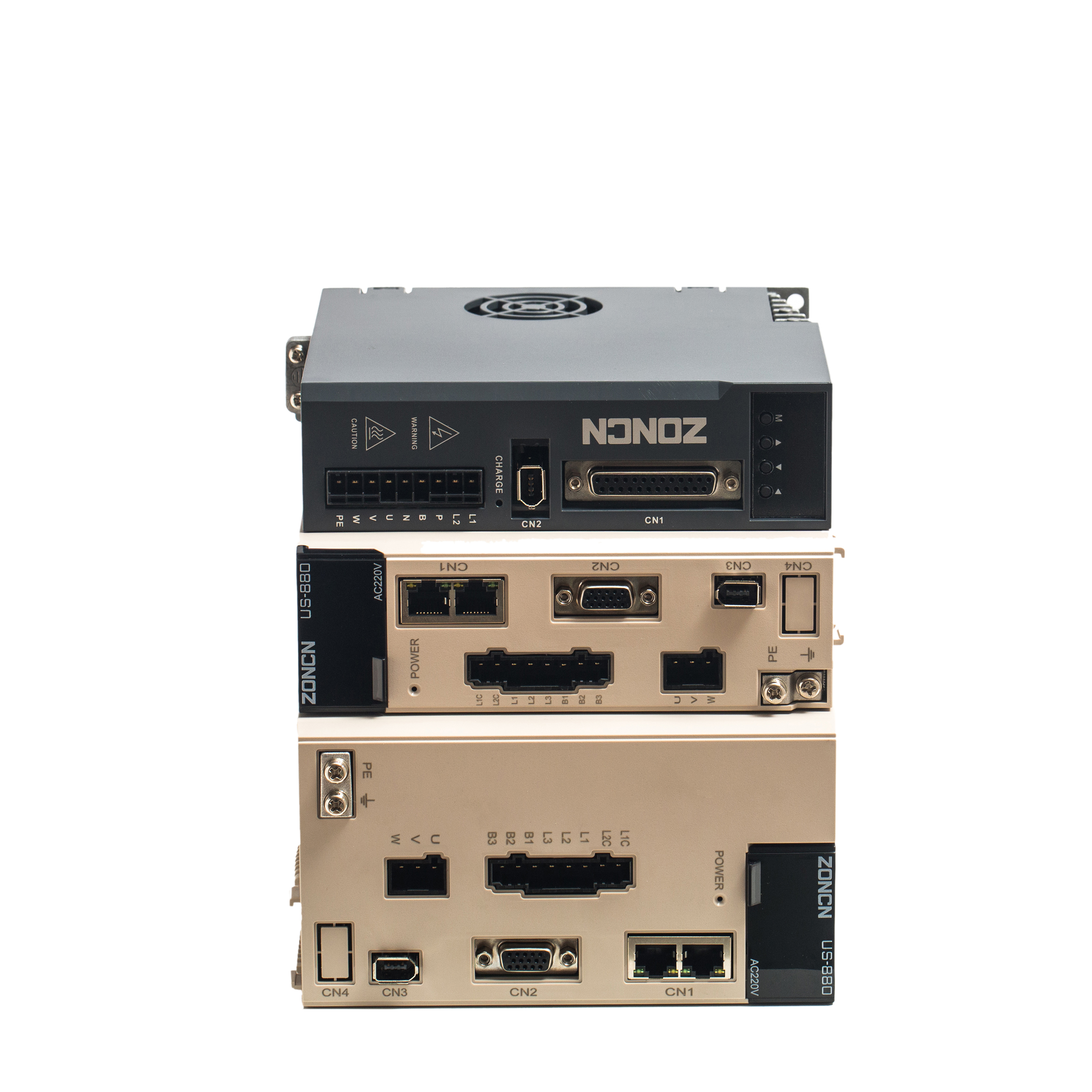

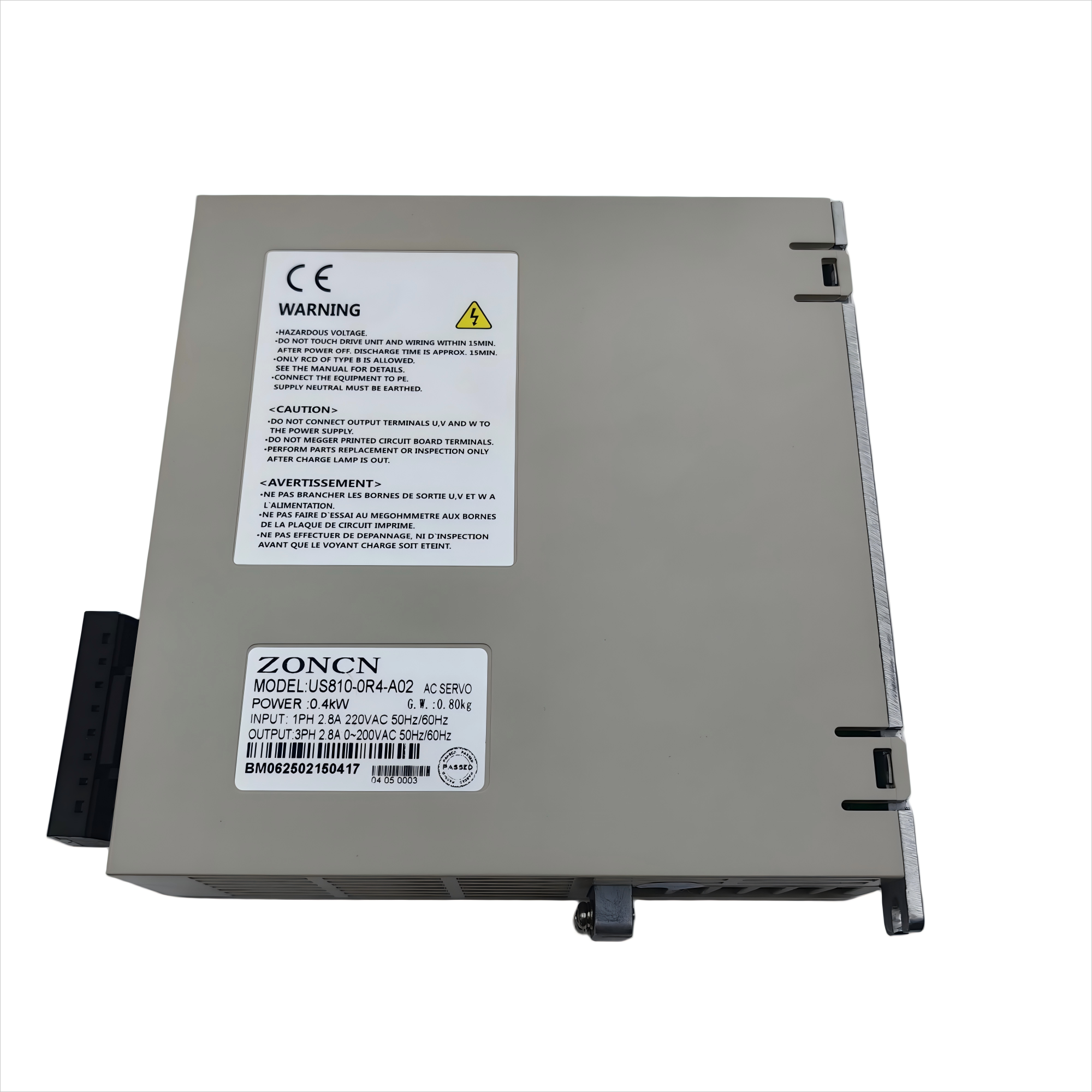

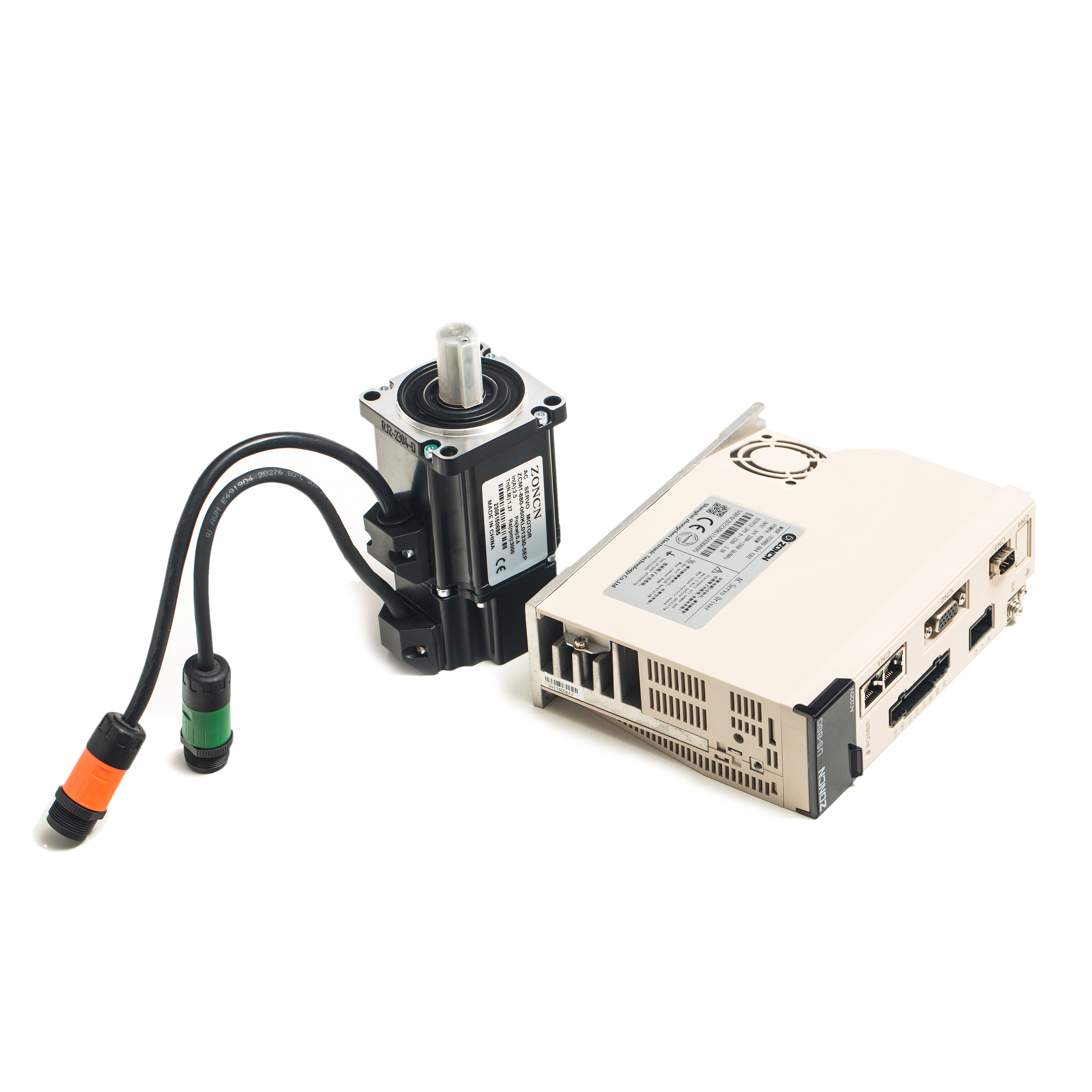

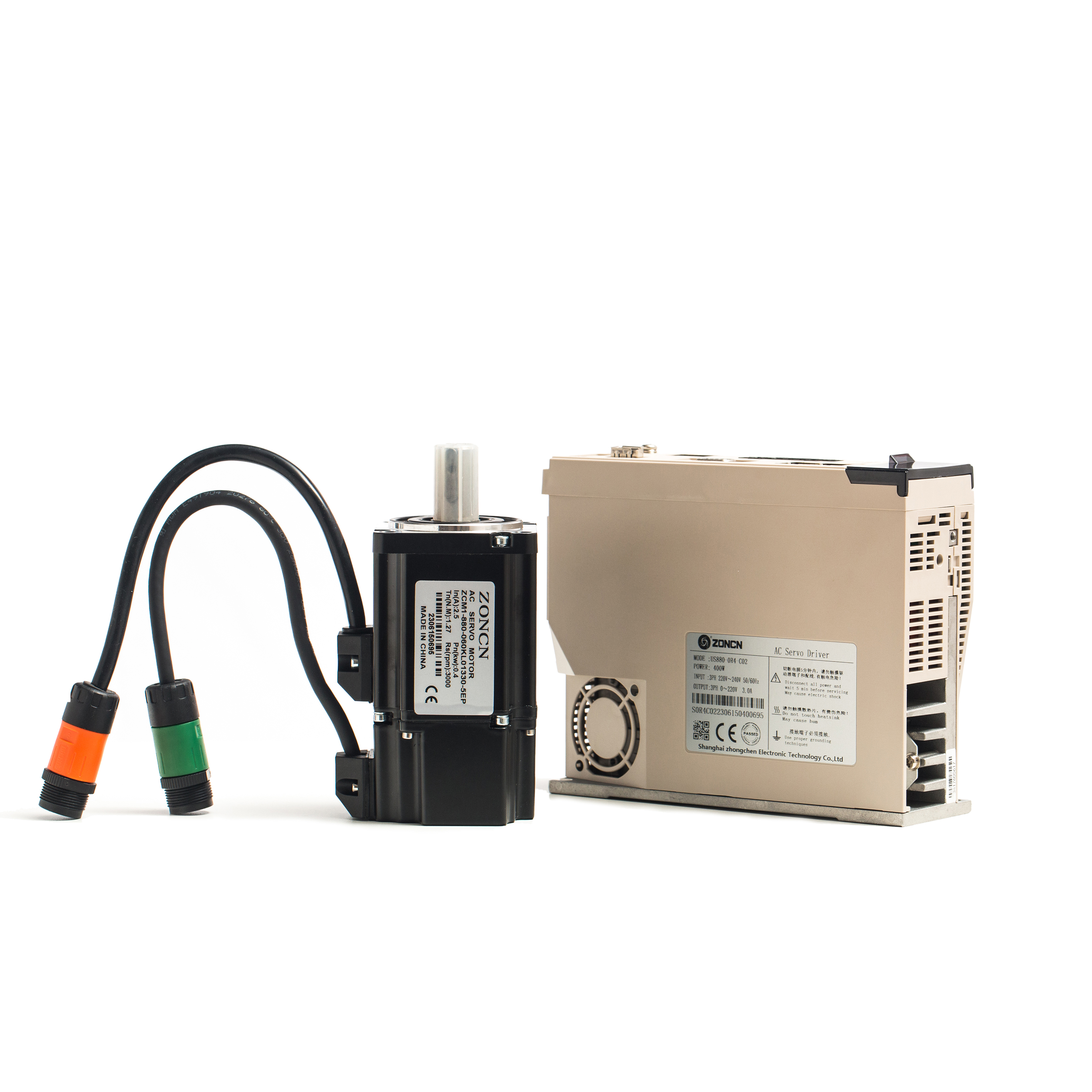

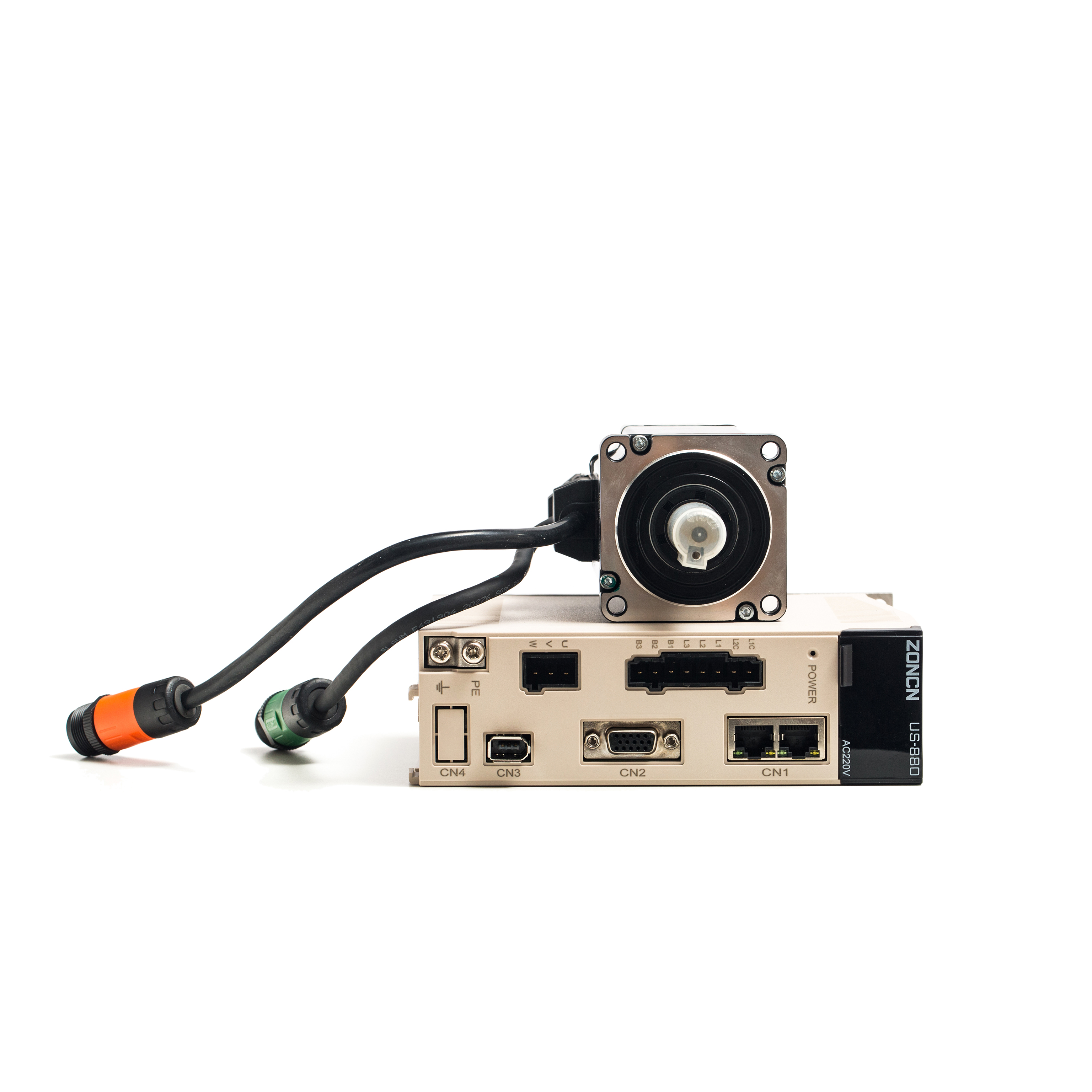

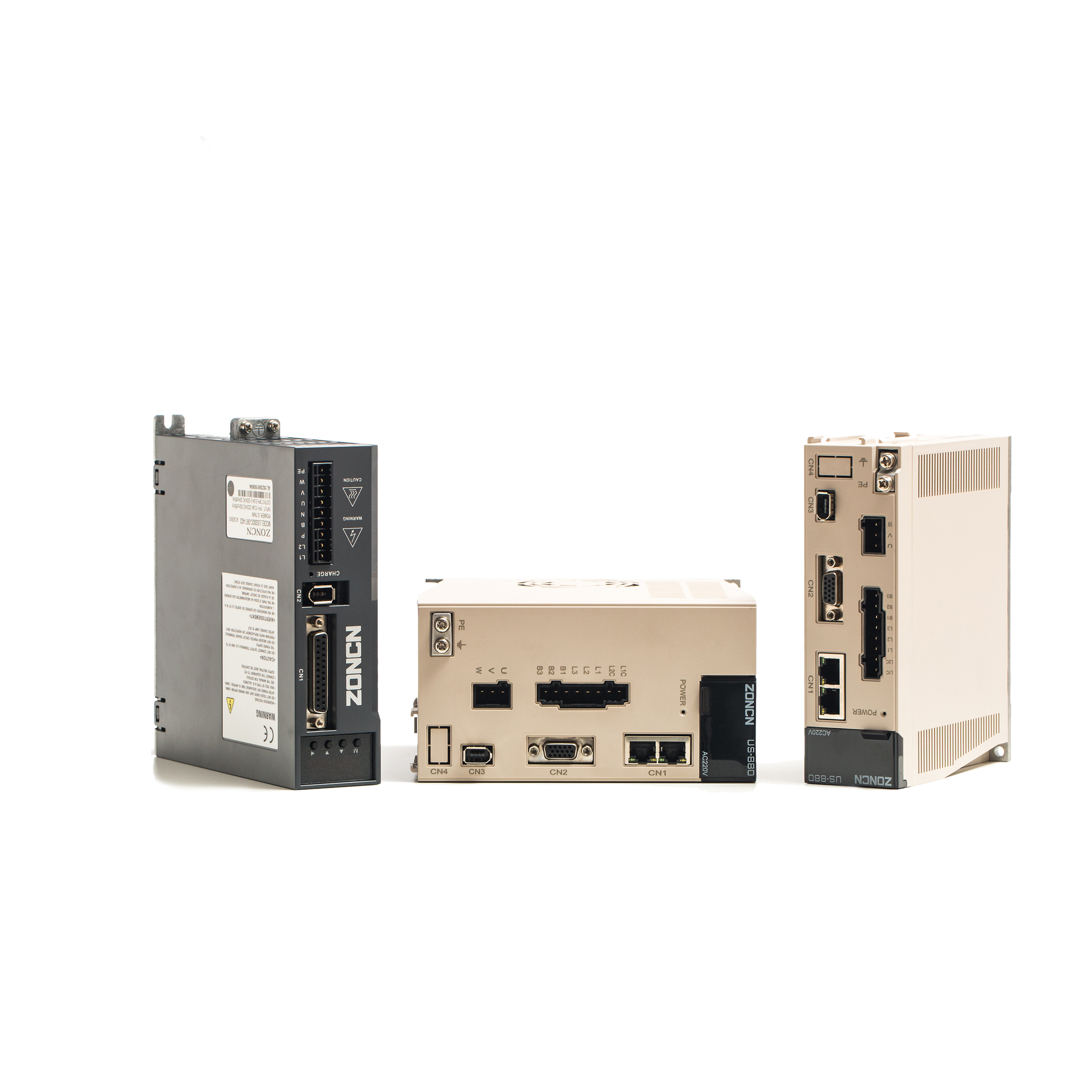

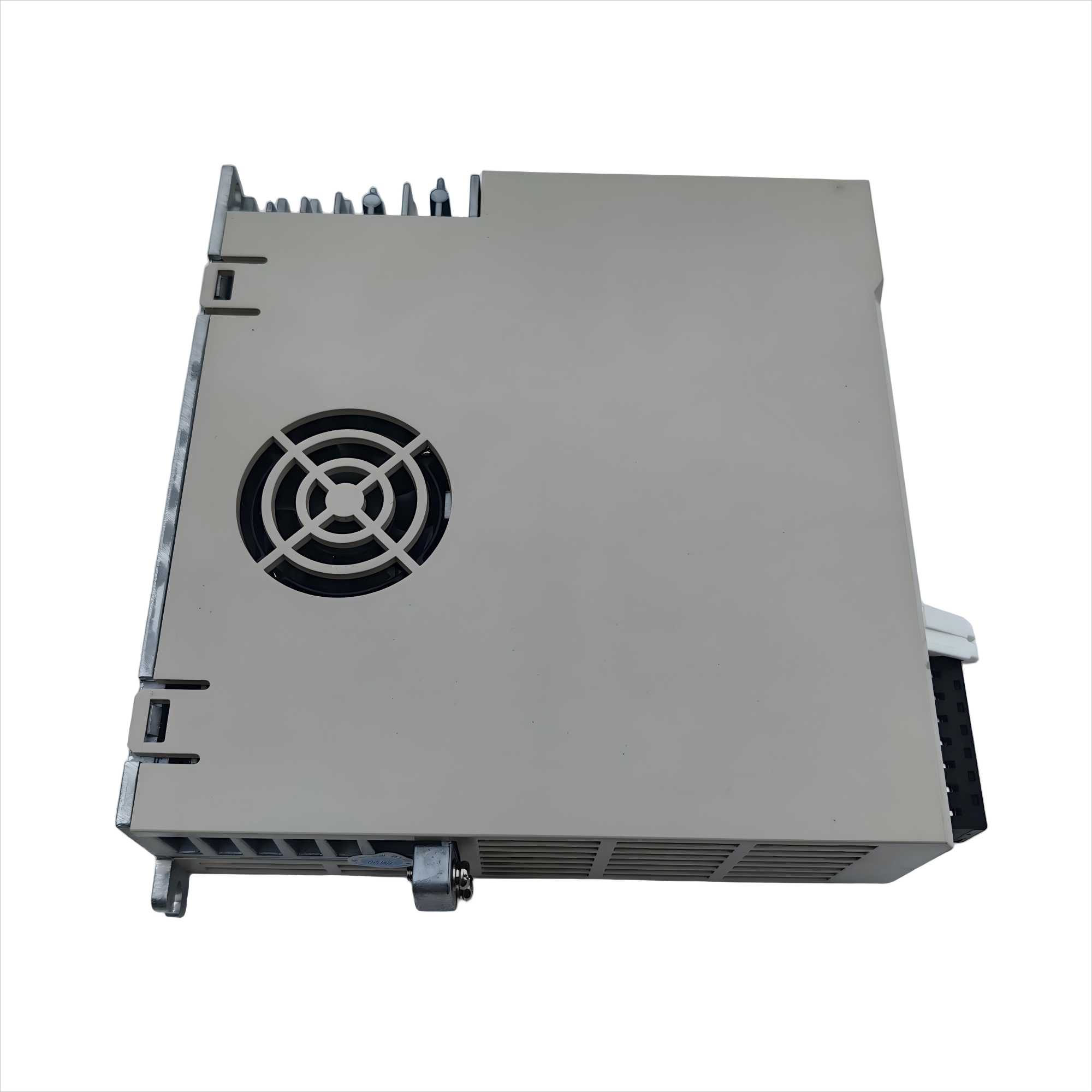

US880/US810 Servo Drive and Motor

AC Servo System

● Multi-function Control

● Position/Velocity/Torque Control

● Electronic Gear Function

● Speed/Torque Limit Function

● Home Search Function

● Zero-Speed Lock Function

● Smooth Speed Command Ramp Function

● Dynamic Brake and Energy Consumption Brake

● Multiple Fault Protection Functions

● Soft Reset Function

● Support EtherCAT Bus Communication Protocol

● Support Yaskawa M3 Bus Communication Protocol

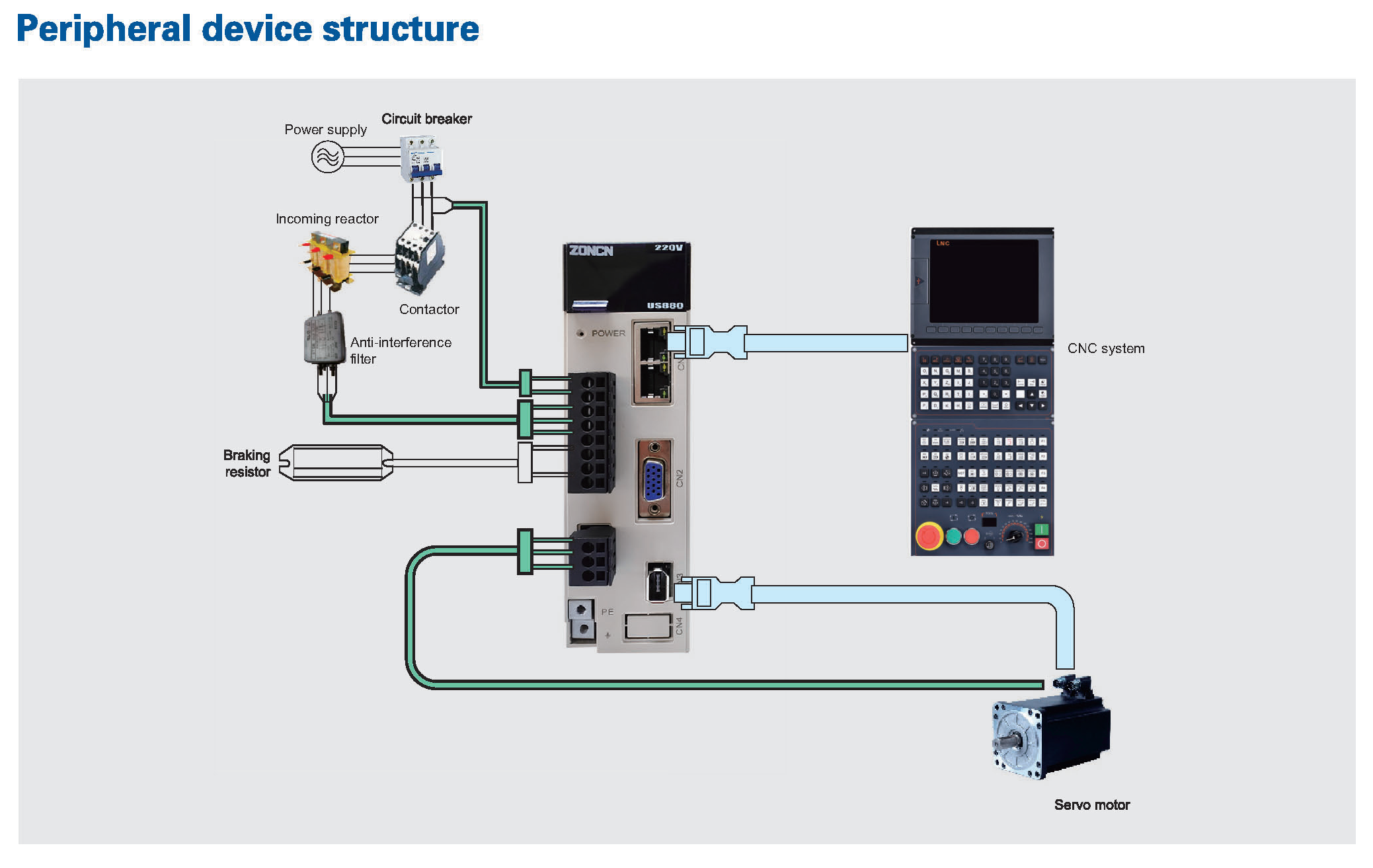

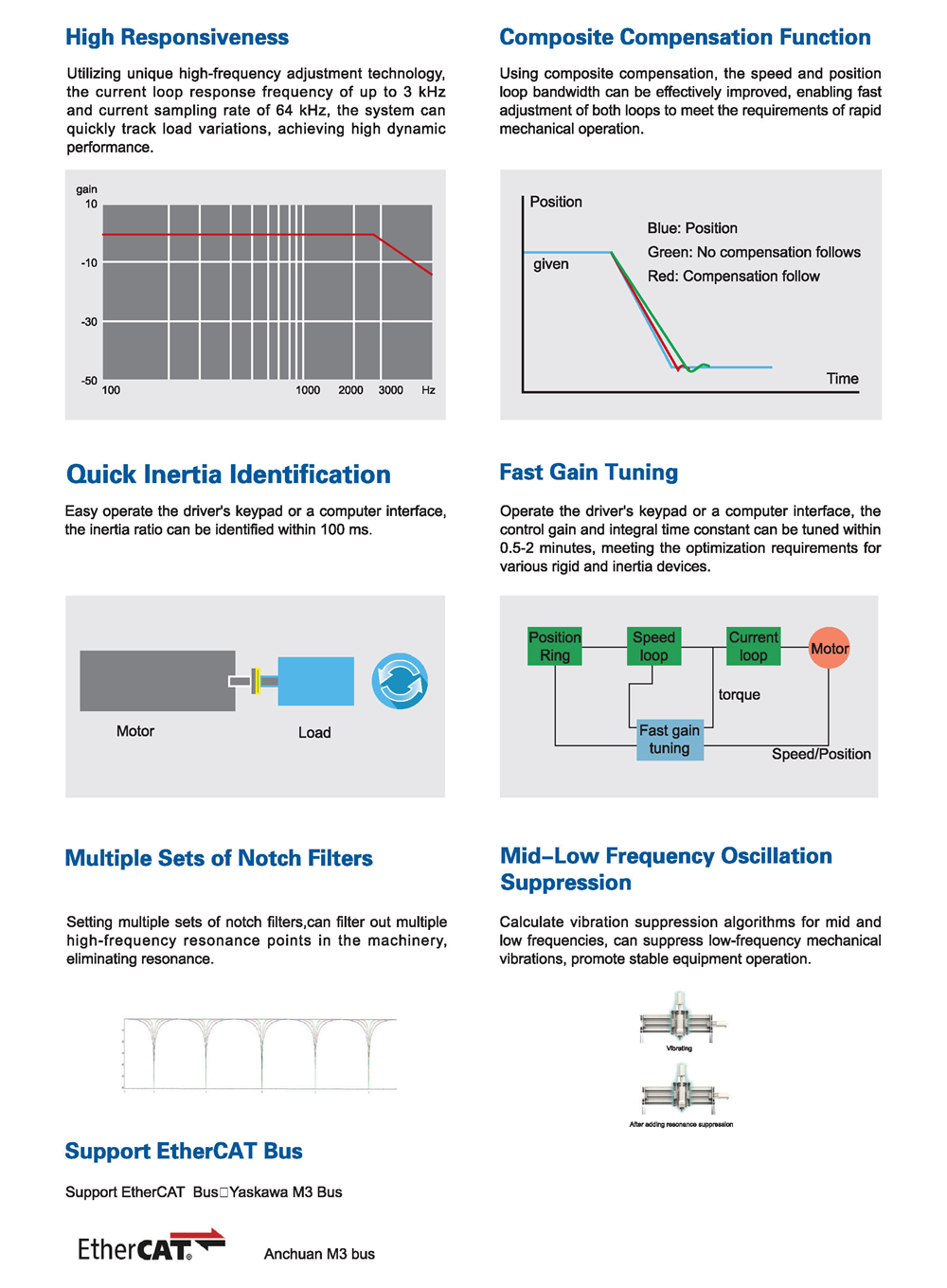

Typical Applications:

CNC lathes: Excellent product quality, high precision, fast speed, smooth surface, smooth and precise contouring of 3Dsurfaces,right angles and straight lines,chip cutting functionality.

Precision engraving machines: High resolution, precise positioning, matching of rotational inertia, high overload capacity. Engraving and milling machines: Good speed stability, high precision, fast response frequency, wide speed range, low-speed high torque.

Engraving machines: Fast speed response, good product smoothness, minimal patterns, smooth curve cutting. Drilling and tapping machines: High-speed and low-speed machining with high precision, wide adjustment range, adaptable to different product requirements.

Machining centers: Rich parameter settings, combined with debugging frequency division coefficients, inertia friction compensation, gain filter, and other parameters to accomplish various complex machining tasks.

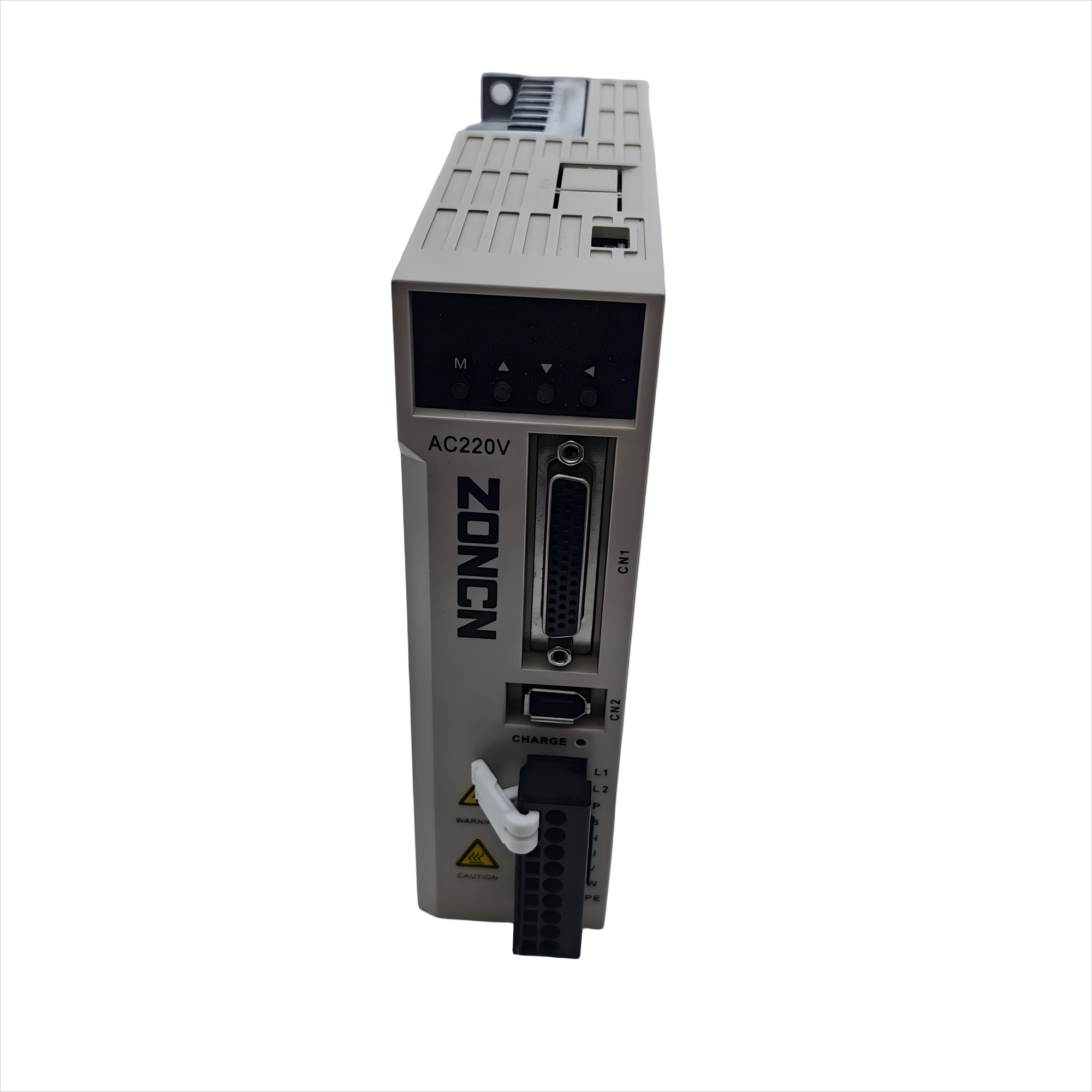

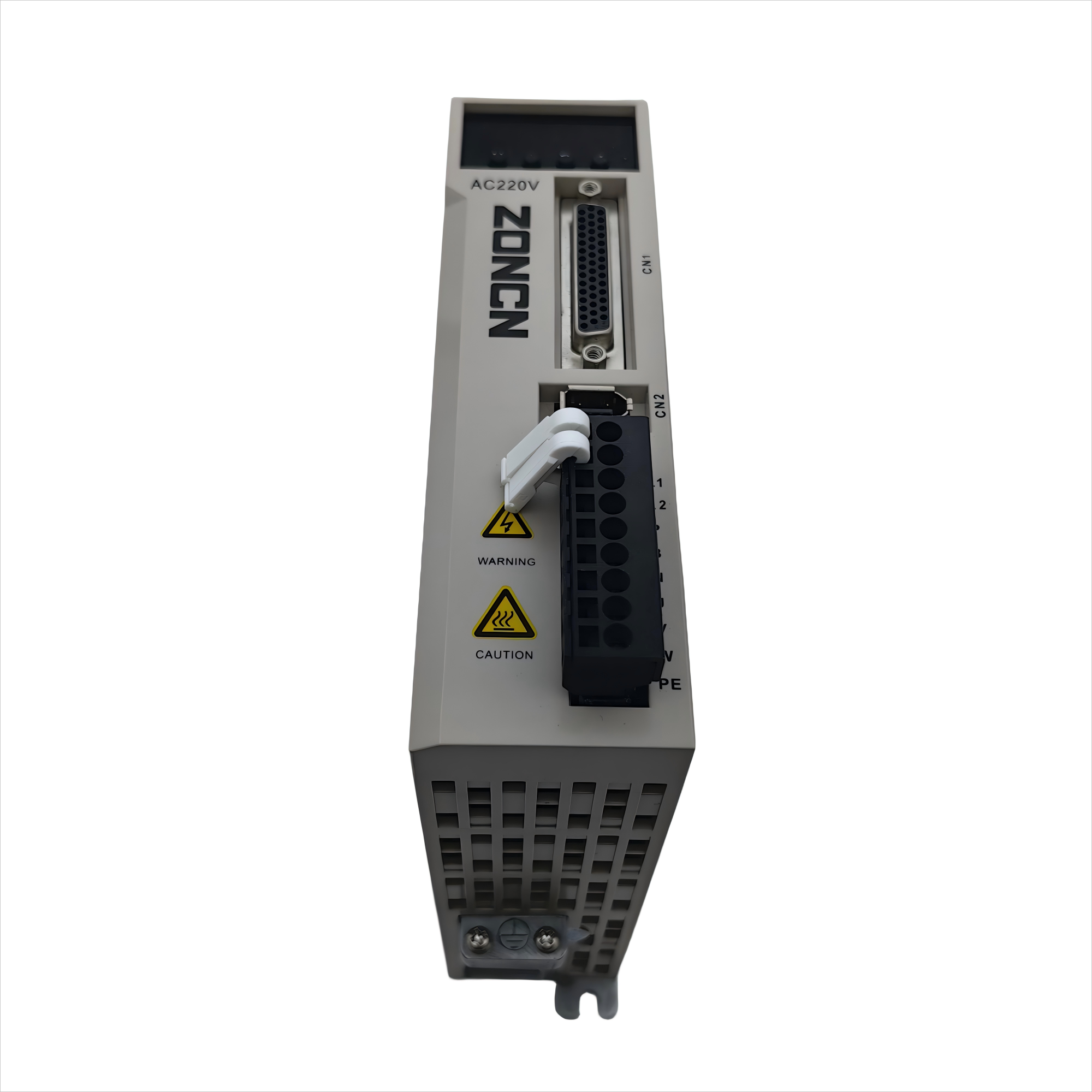

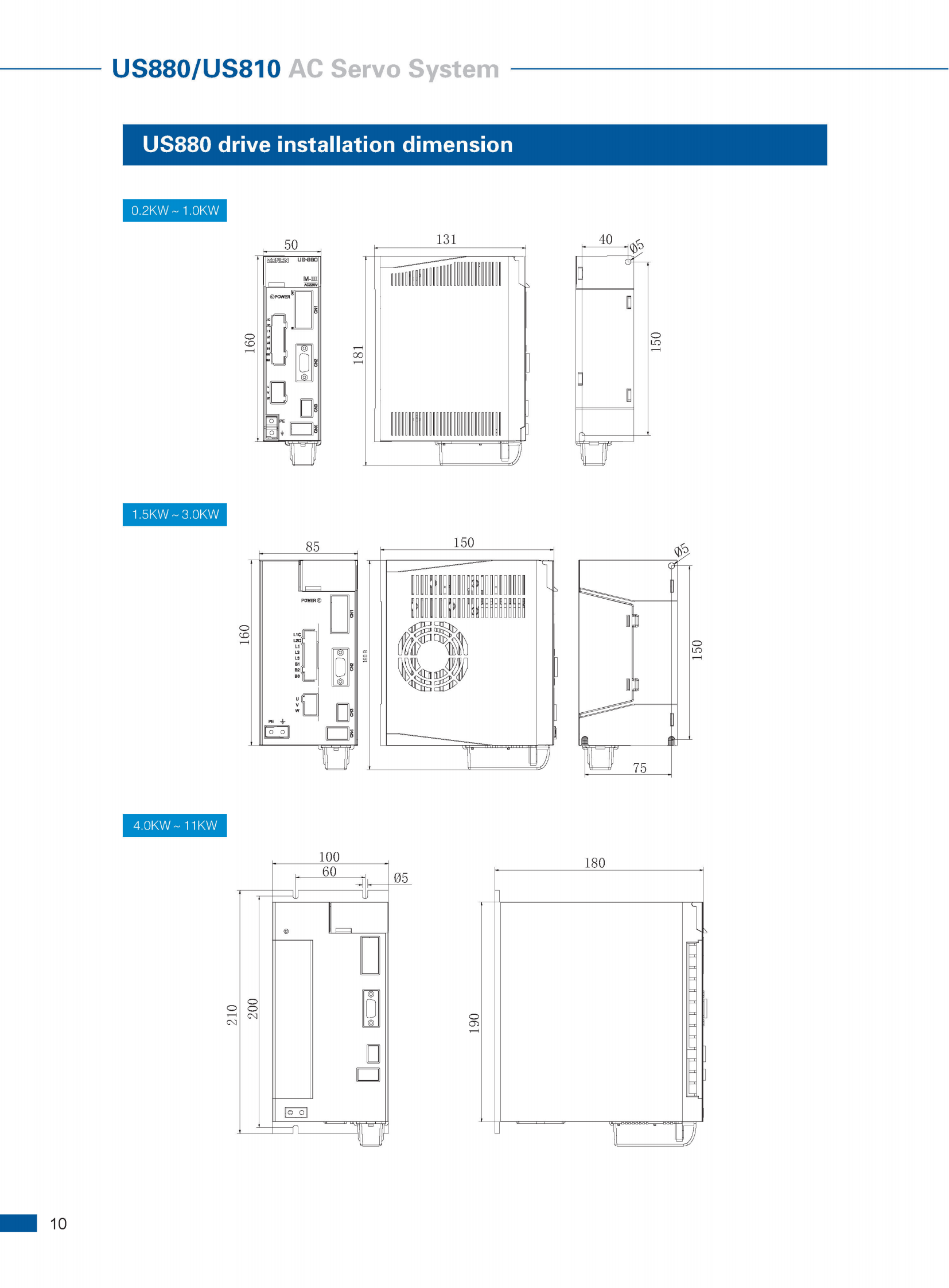

Drive Model Description

US - 880 - OR4 - C 02

① ② ③ ④ ⑤

①ZONCN Servo

④Product Type:

AC Servo System

A:Absolute+485 communication; C:Absolute+EtherCAT;

D:Absolute+MechatrolinkⅢ;

G:Incremental(ABZ)

②Product series

880:880 Series;810:810 Series

⑤Voltage:

02:3PH 220V; 04:3PH 380V

③Rated power

0R2:0.2KW; 0R 4:0.4KW;

0R7:0.75KW; 1R0 :1.0KW;

1R5:1.5KW; 2R 5:2.5KW;

3R0:3.0KW; 4R 0:4.0KW;

5R0:5.0KW; 7R 5:7.5KW;

11:11KW; 15 15KW

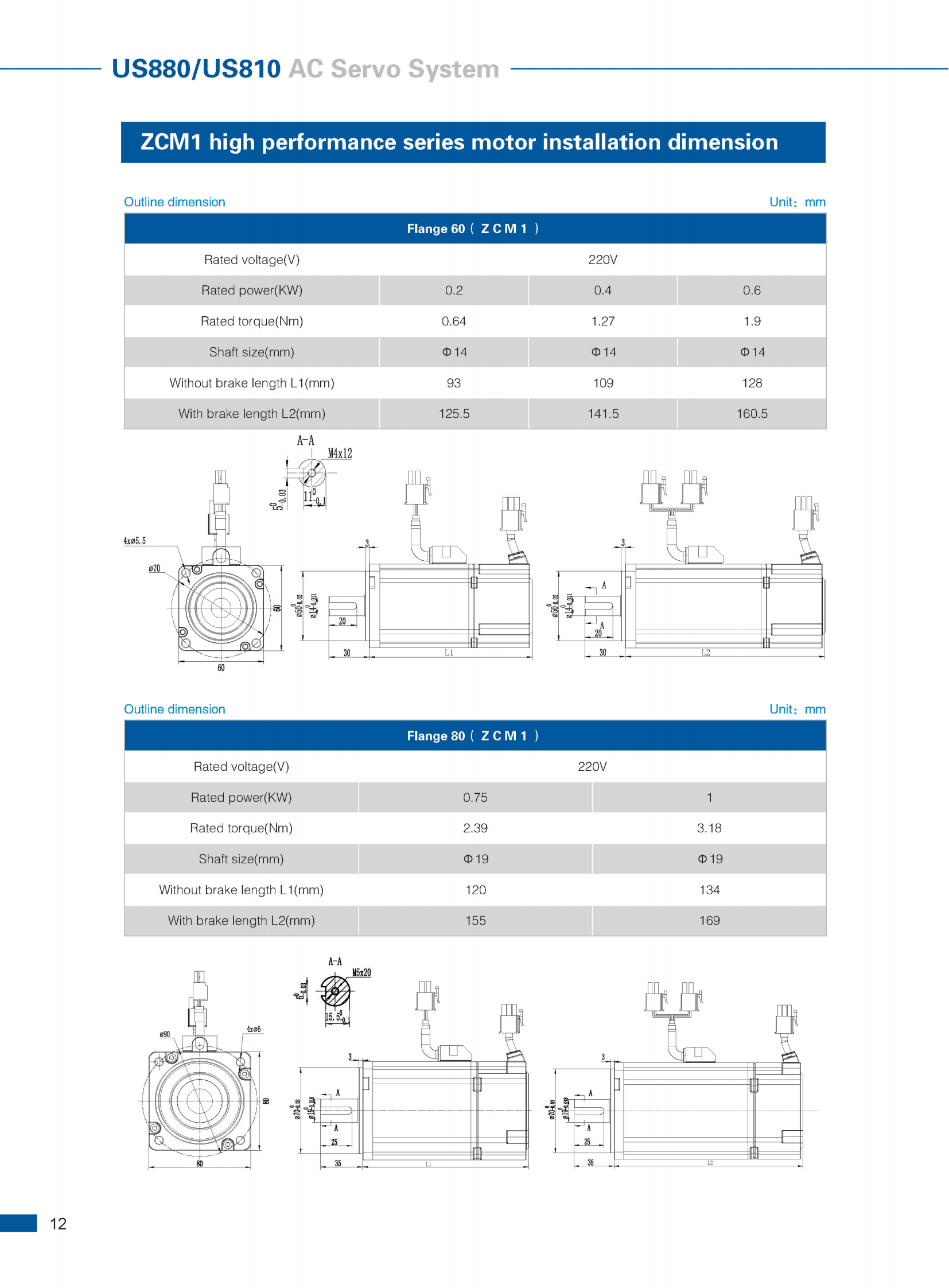

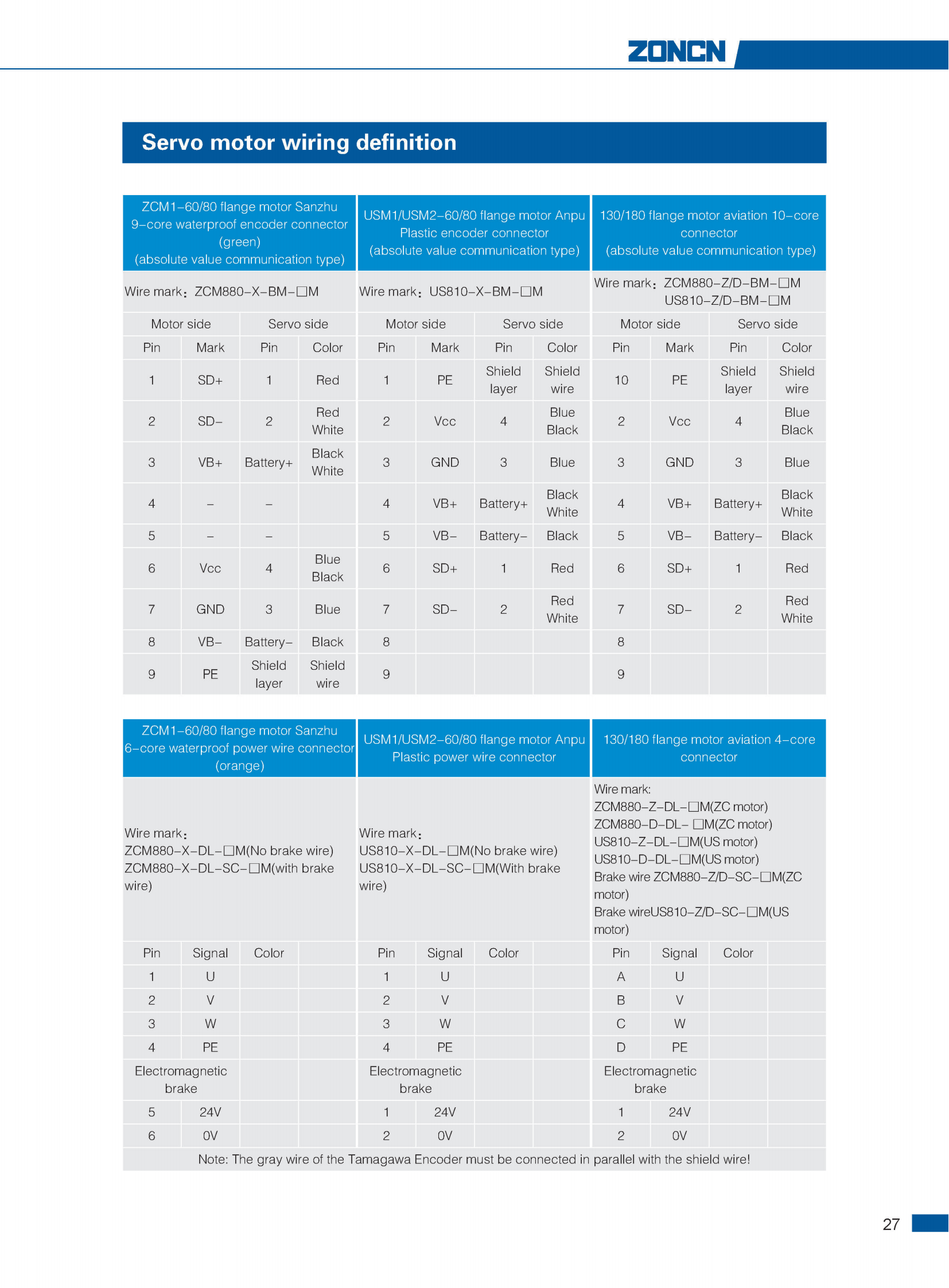

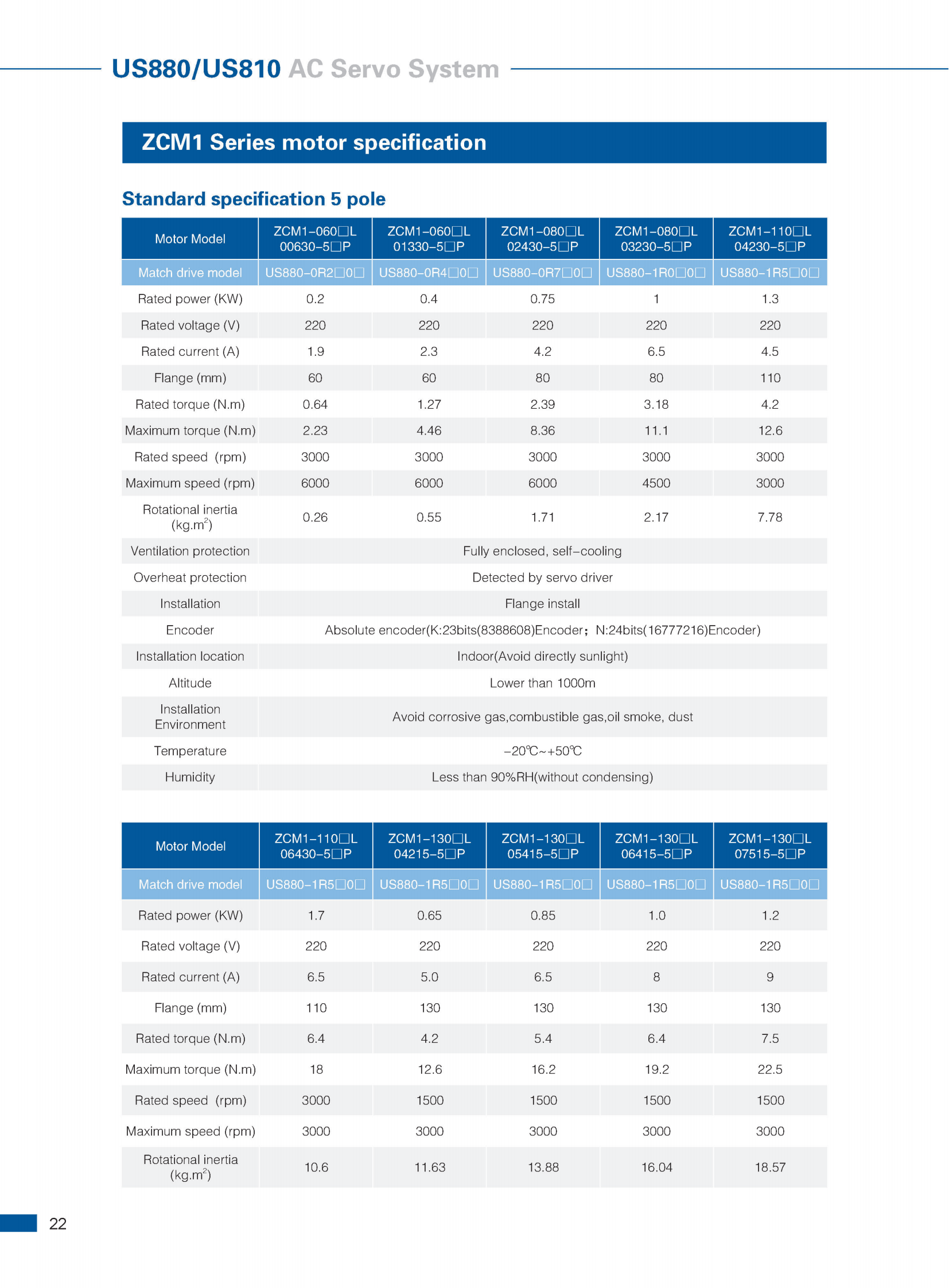

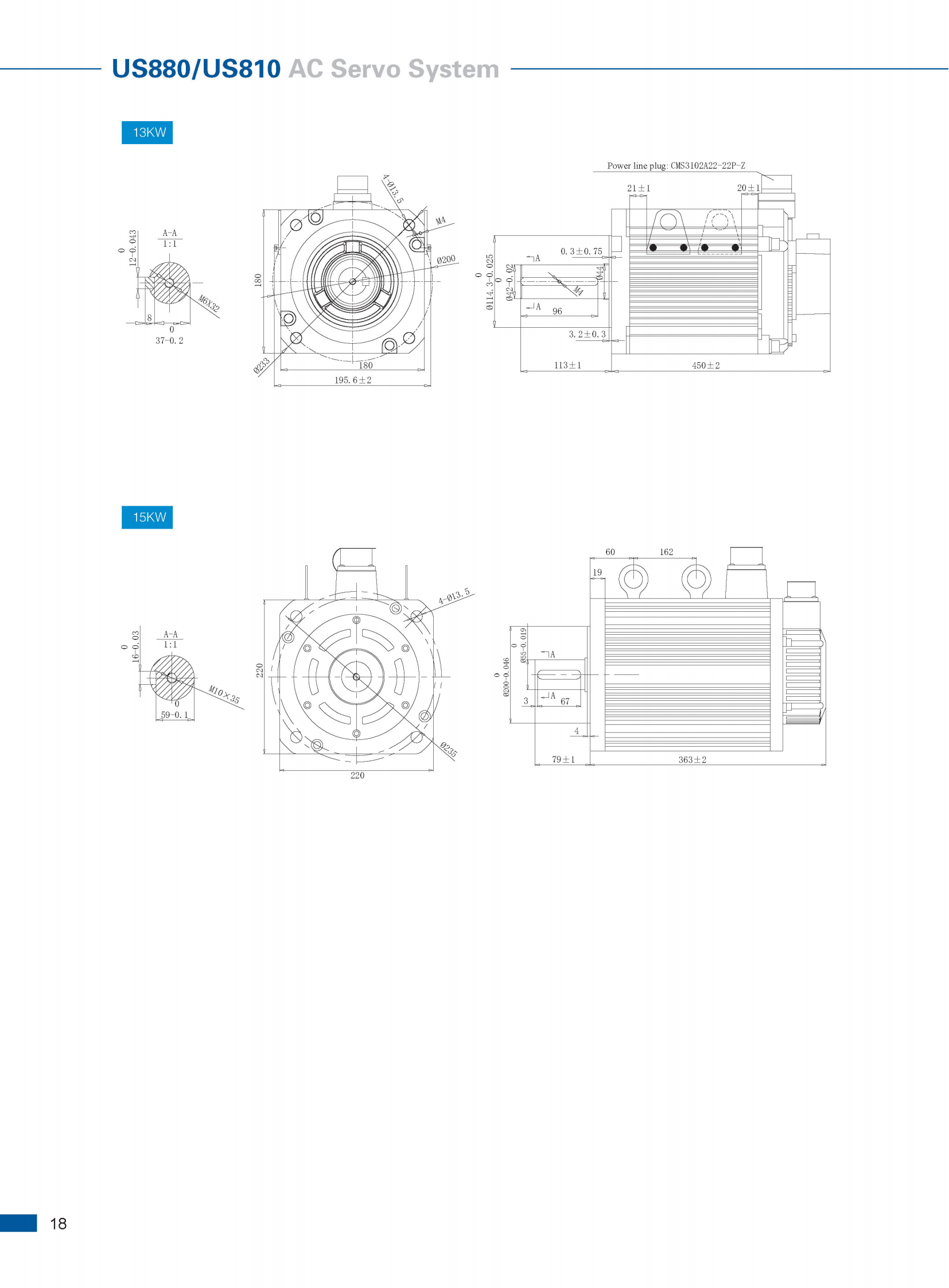

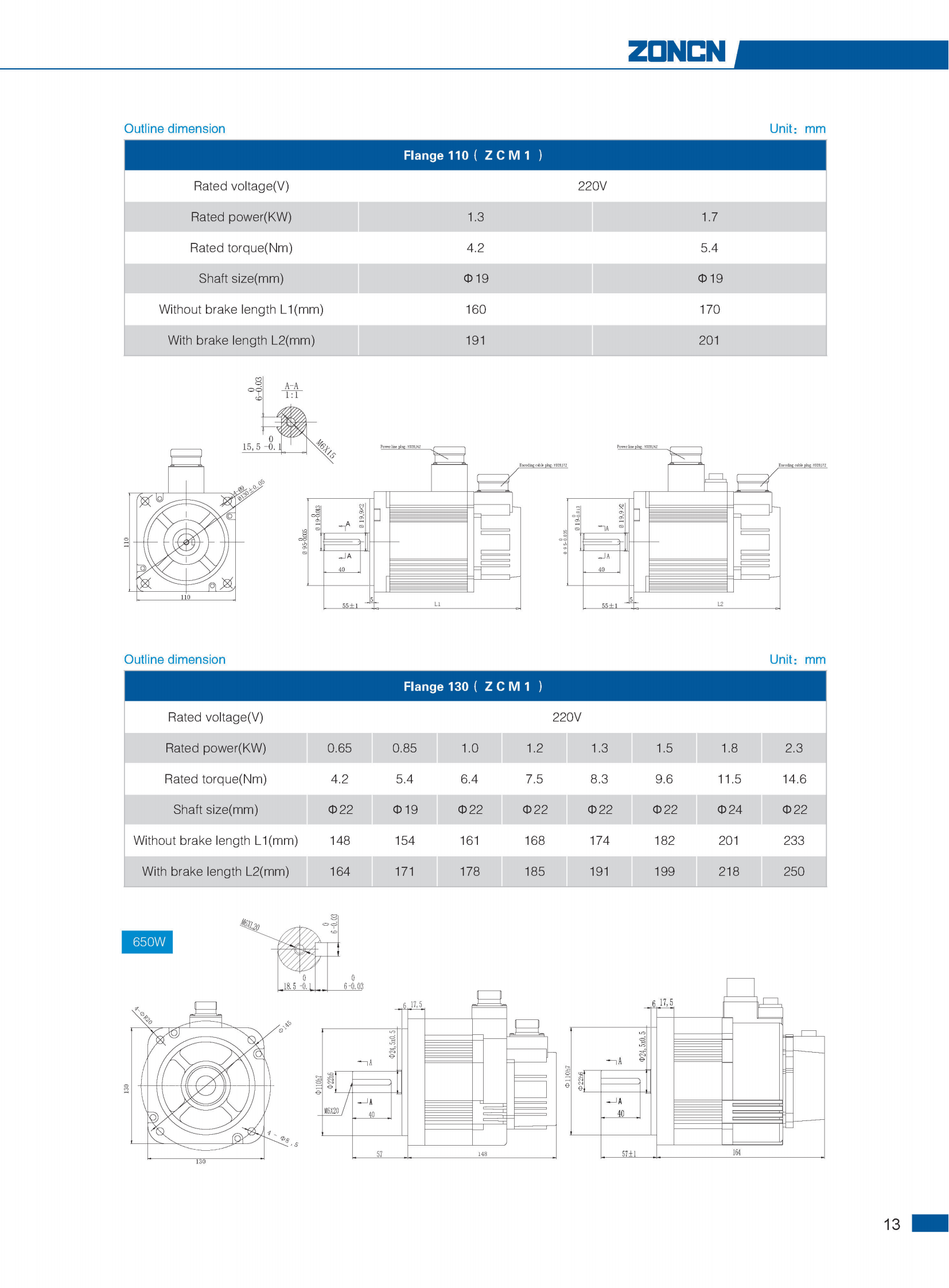

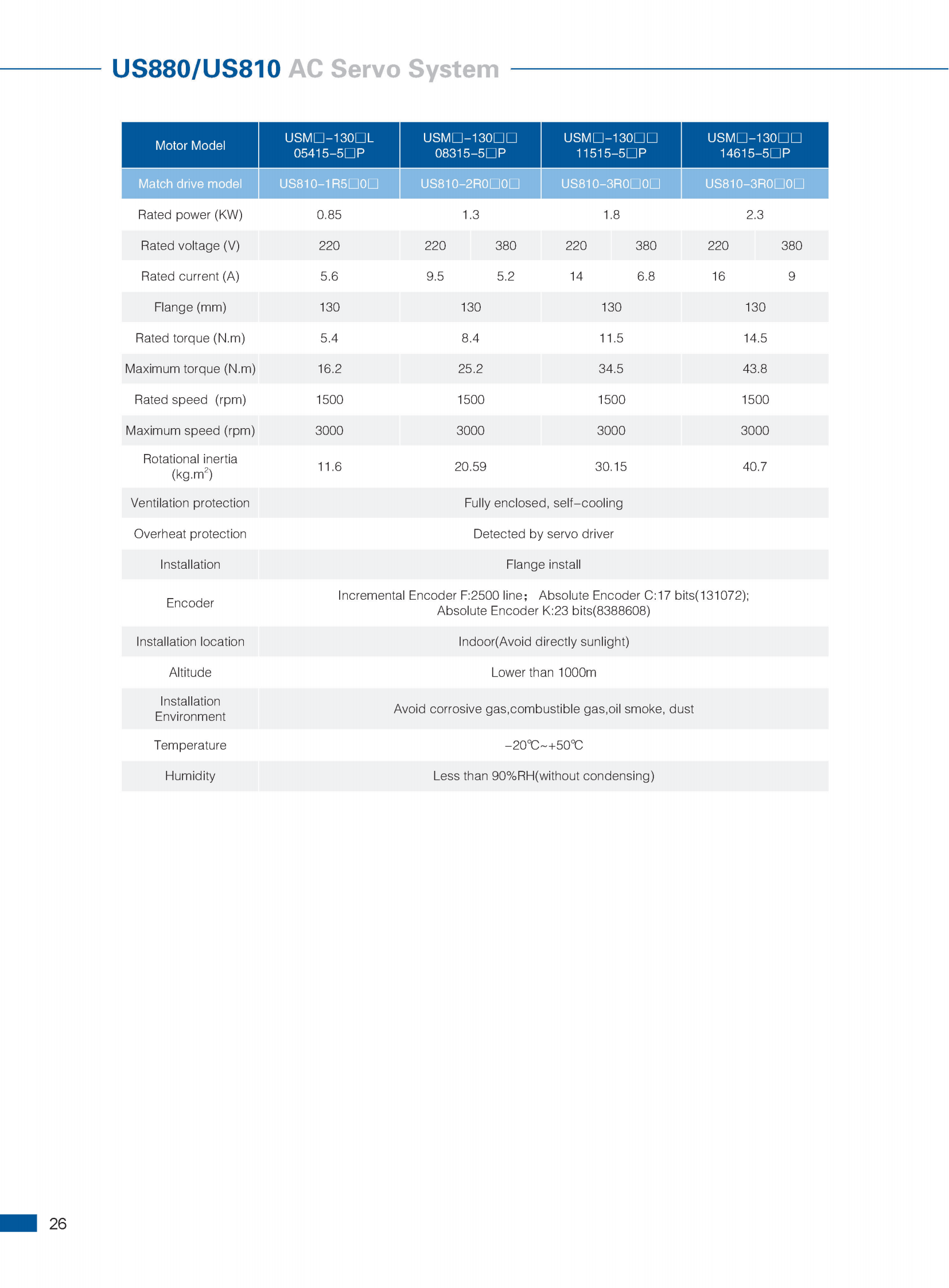

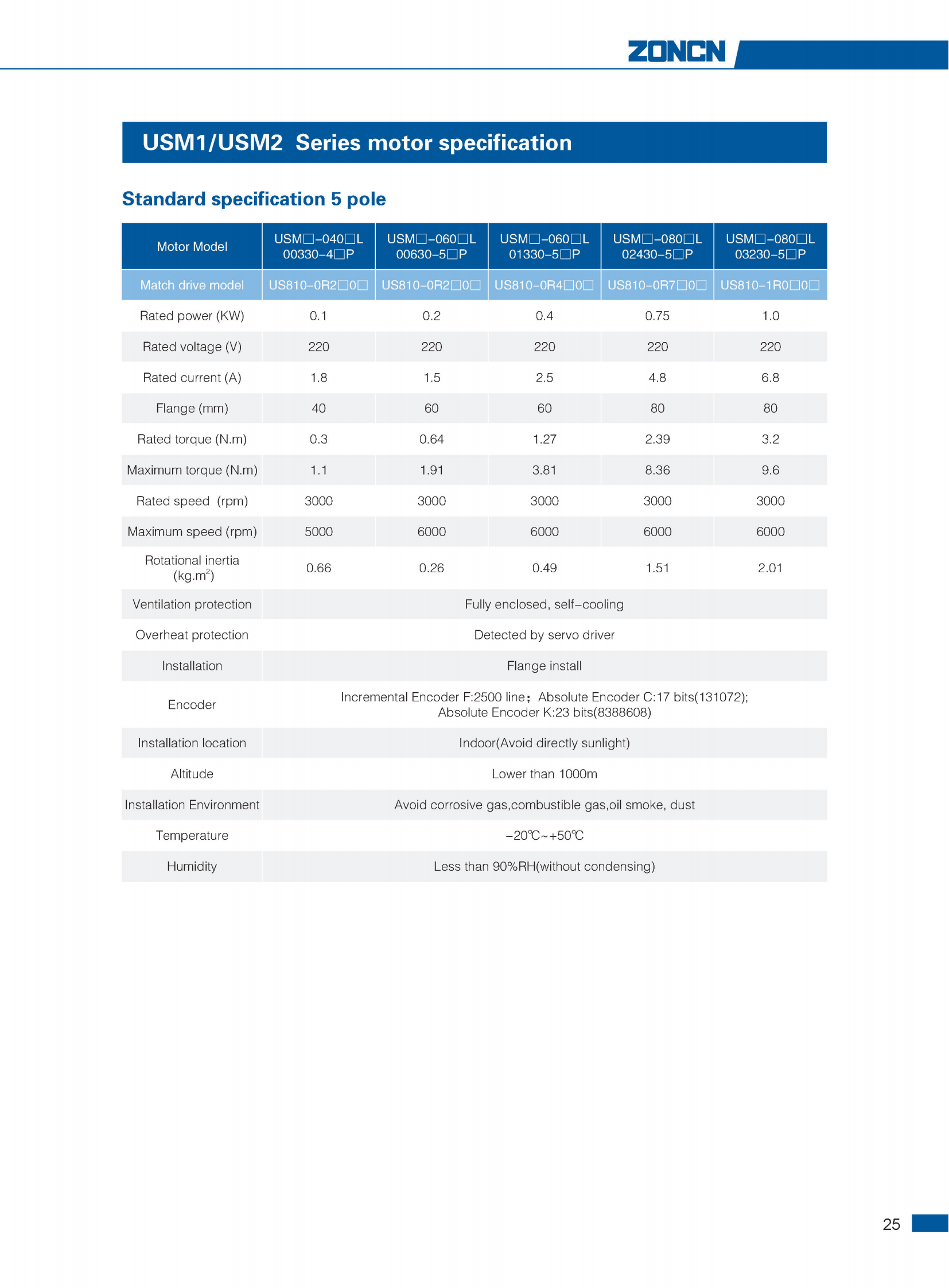

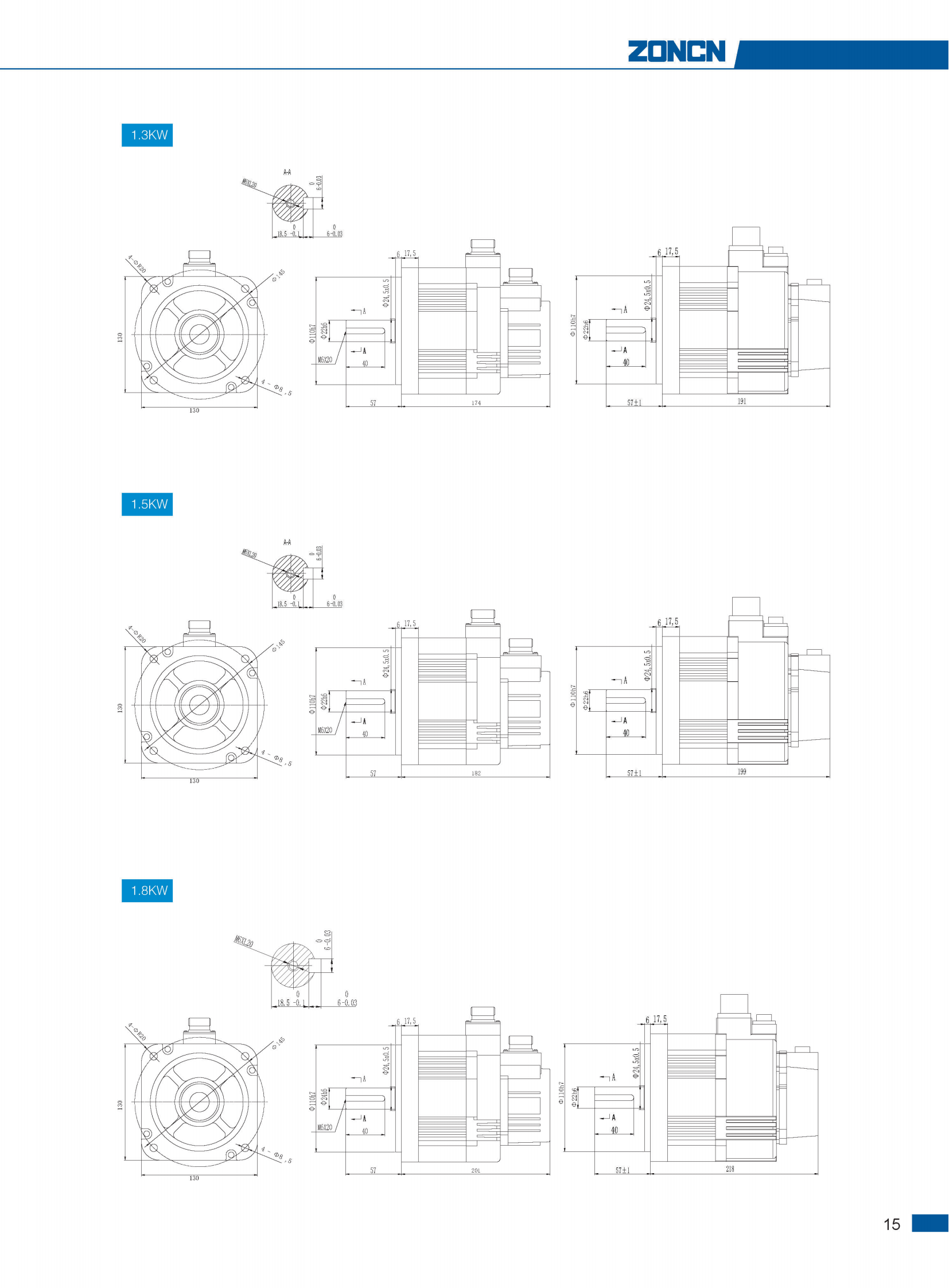

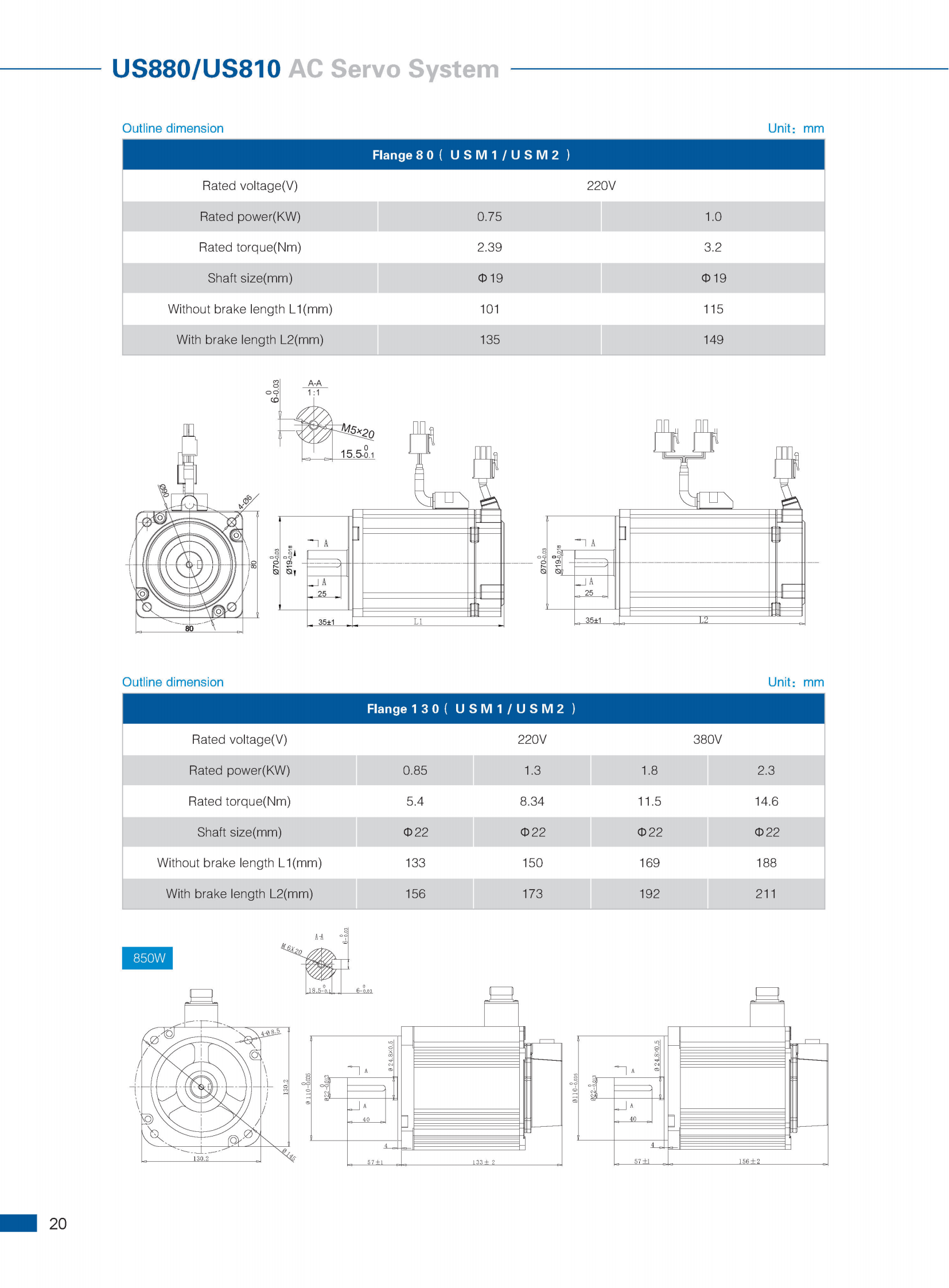

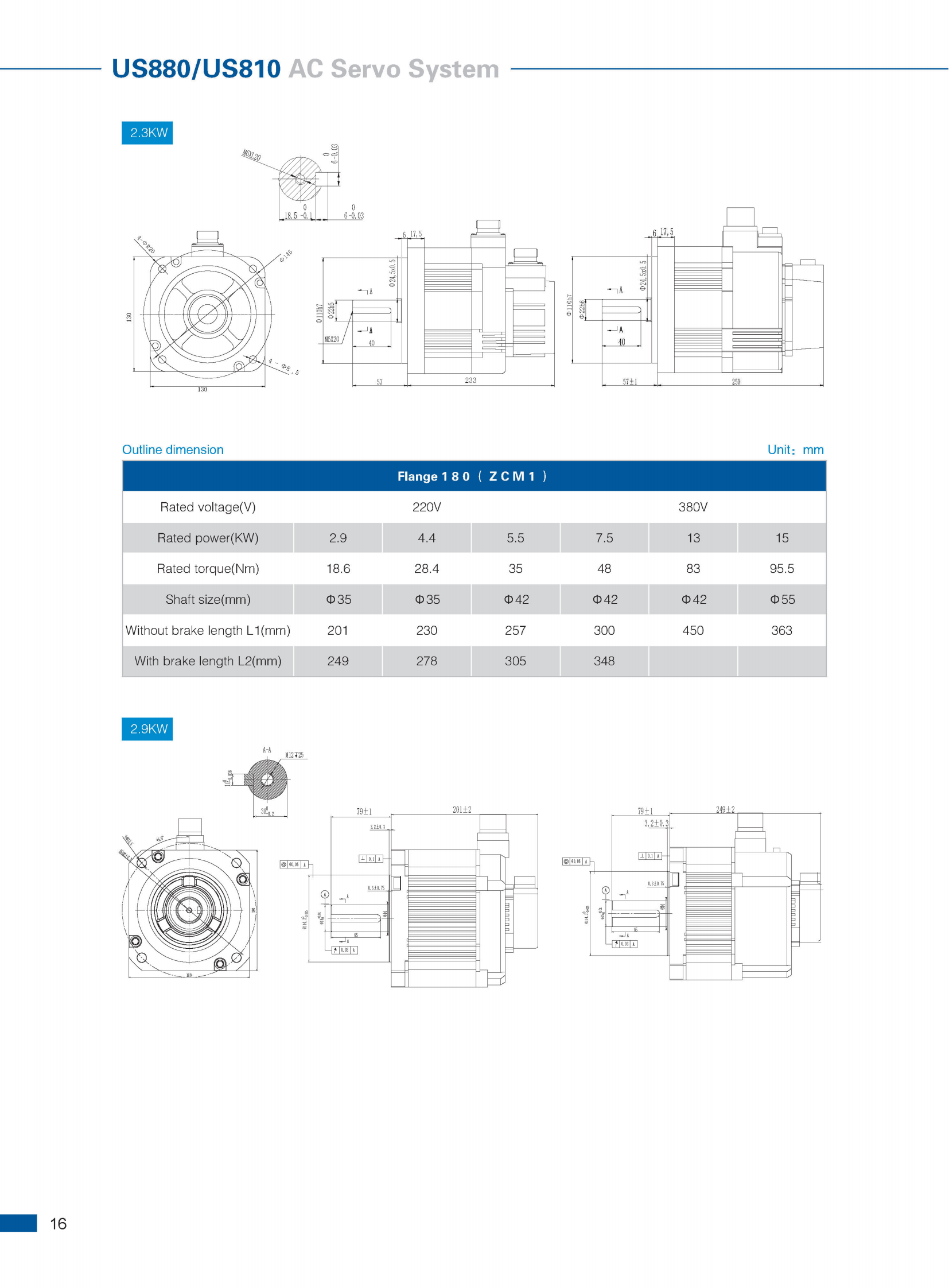

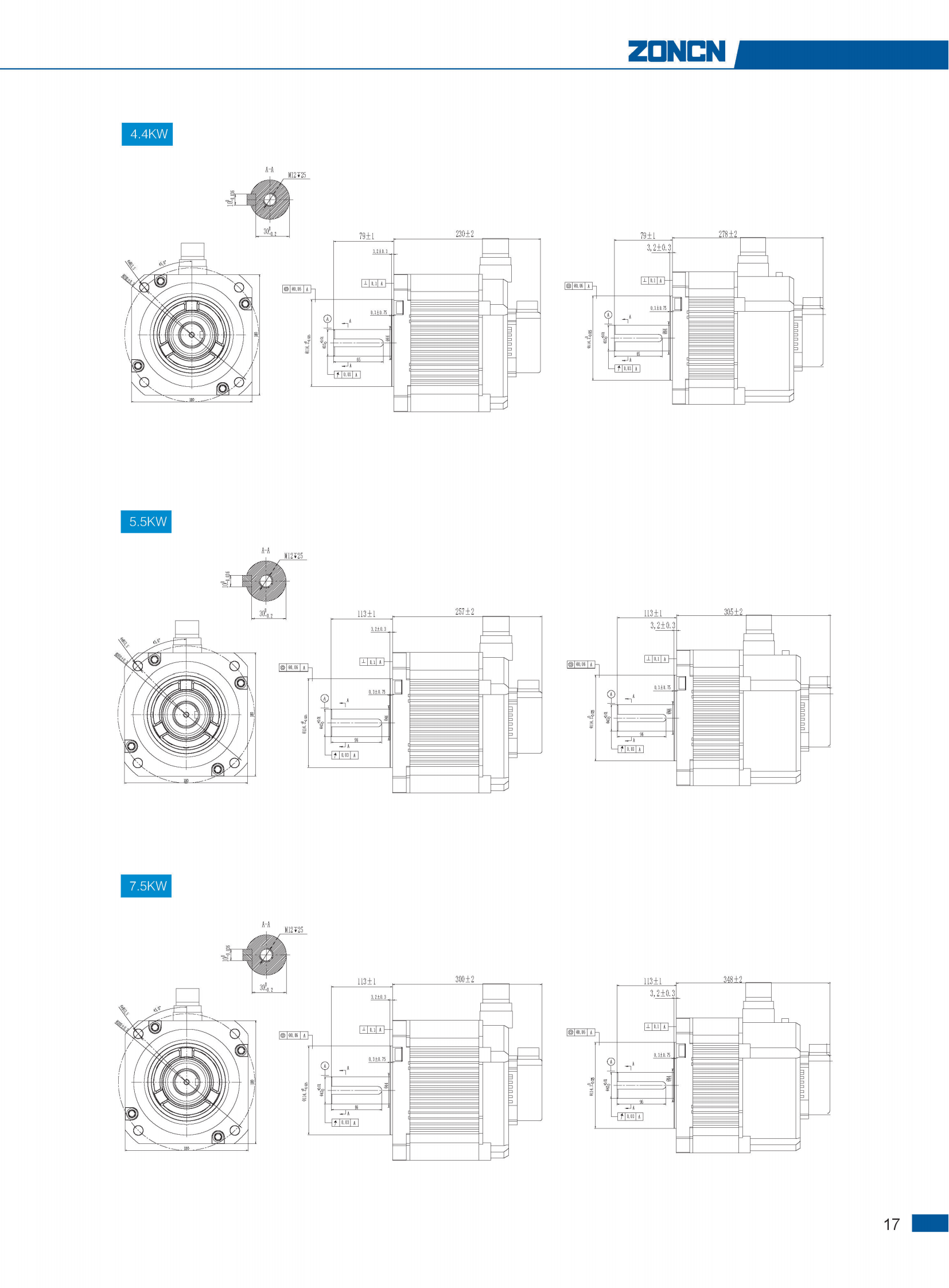

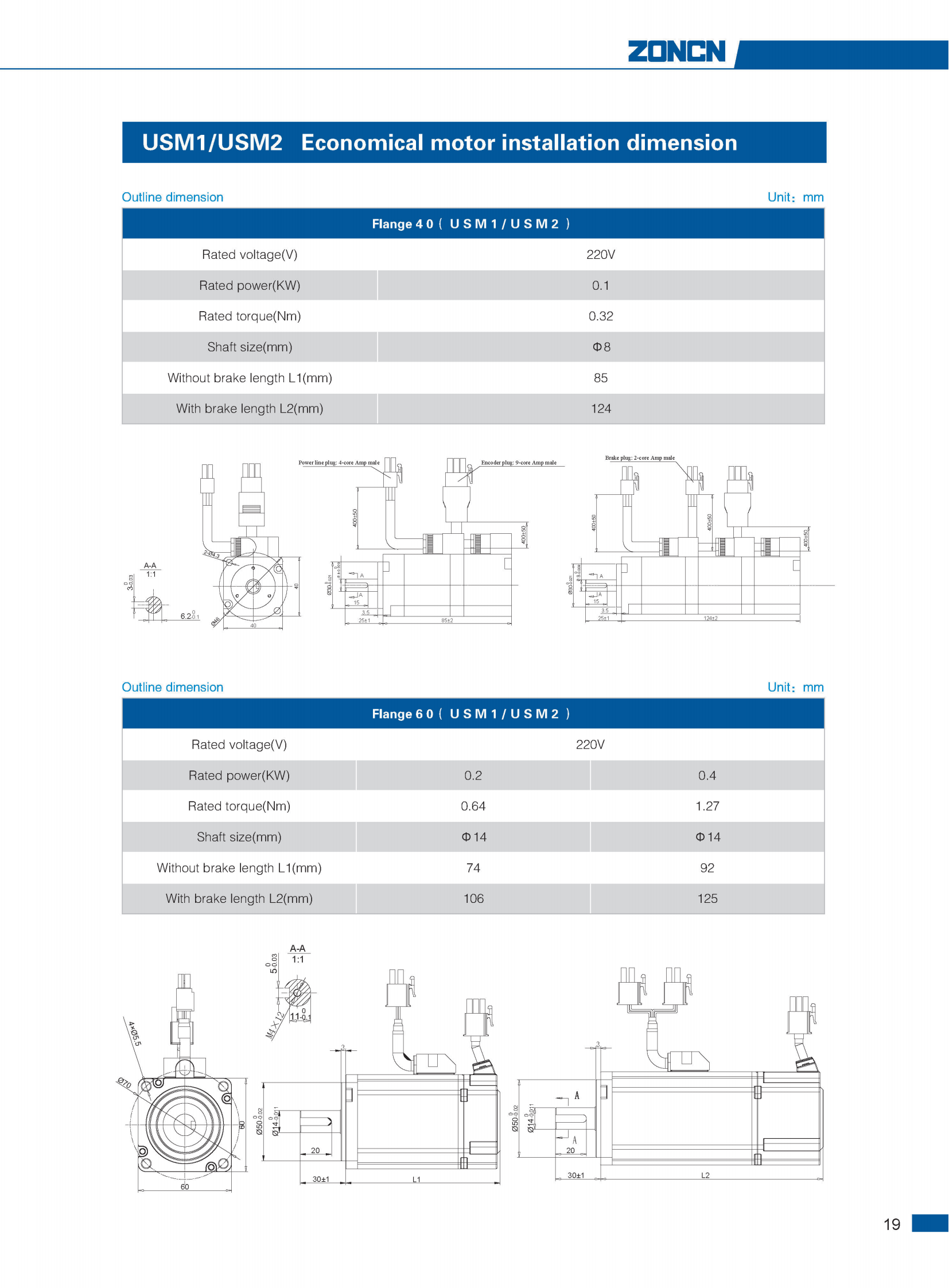

Motor Model Description

ZCM1 - 060 - K L 013 30 - 5 E P

① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩

①Series

⑥Rated torque

ZC: High performance motor;

US: Economic motor

003: 0.32N.m; 006:0.64N.m; 013 :1.27N.m; 024: 2.39N.m; 032:3.2N.m; 042:4.2N.m; 054:5.4N.m; 060:6N.m; 077:7.7N.m; 083:8.3N.m; 115:11.5N.m; 146:14.6N.m; 186:18.6N.m; 284:28.4N.m; 350:35N.m; 480:48N.m; 830:83N.m; 955:95.5N.m

②Encoder type

M1 :Photoelectric encoder;

M2: Magnetoelectric encoder

⑦Rated speed

15:1500rpm; 20:2000rpm; 25:2500rpm; 30:3000rpm

③Flange

040:40; 060:60; 080:80; 110:110; 130:130; 180:180; 220:220

⑧Polar logarithm

4:4 pole; 5:5 pole

④Encoder type

N:Absolute 24-bit Multi-turn

K:Absolute 23-bit Multi-turn

K1:Absolute 23-bit Multi-turn Split Type

C:Absolute 17-bit single turn

C1:Absolute 17-bit Multi-turn

⑨Brake

E:No brake; B: Brake

⑤Phase/Voltage

L:3 phase 220V; S:3 phase 380V

⑩Waterproof/ Oil seal

Y:With oil seal; W: Without oil seal; P:Waterproof and oil seal

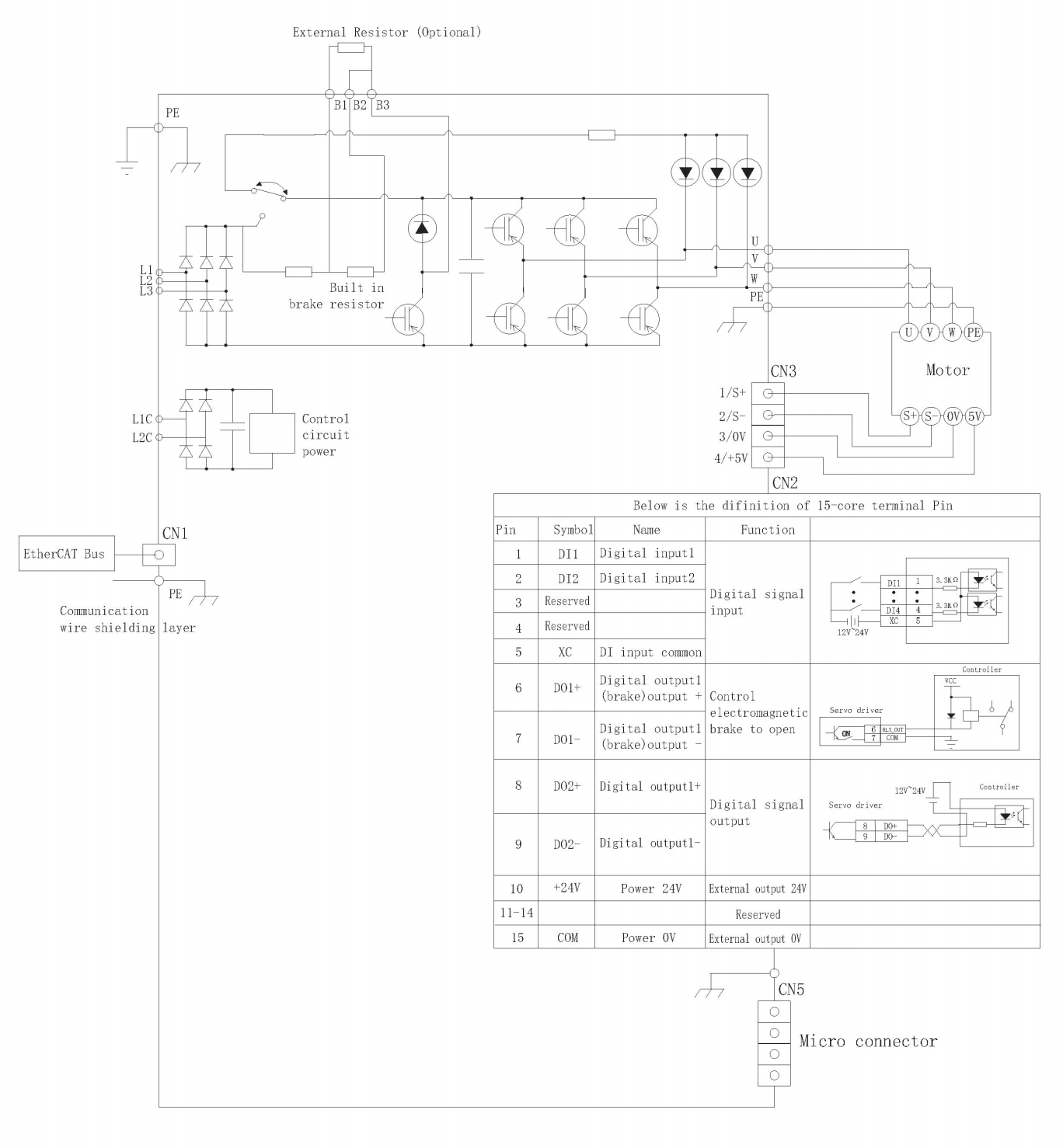

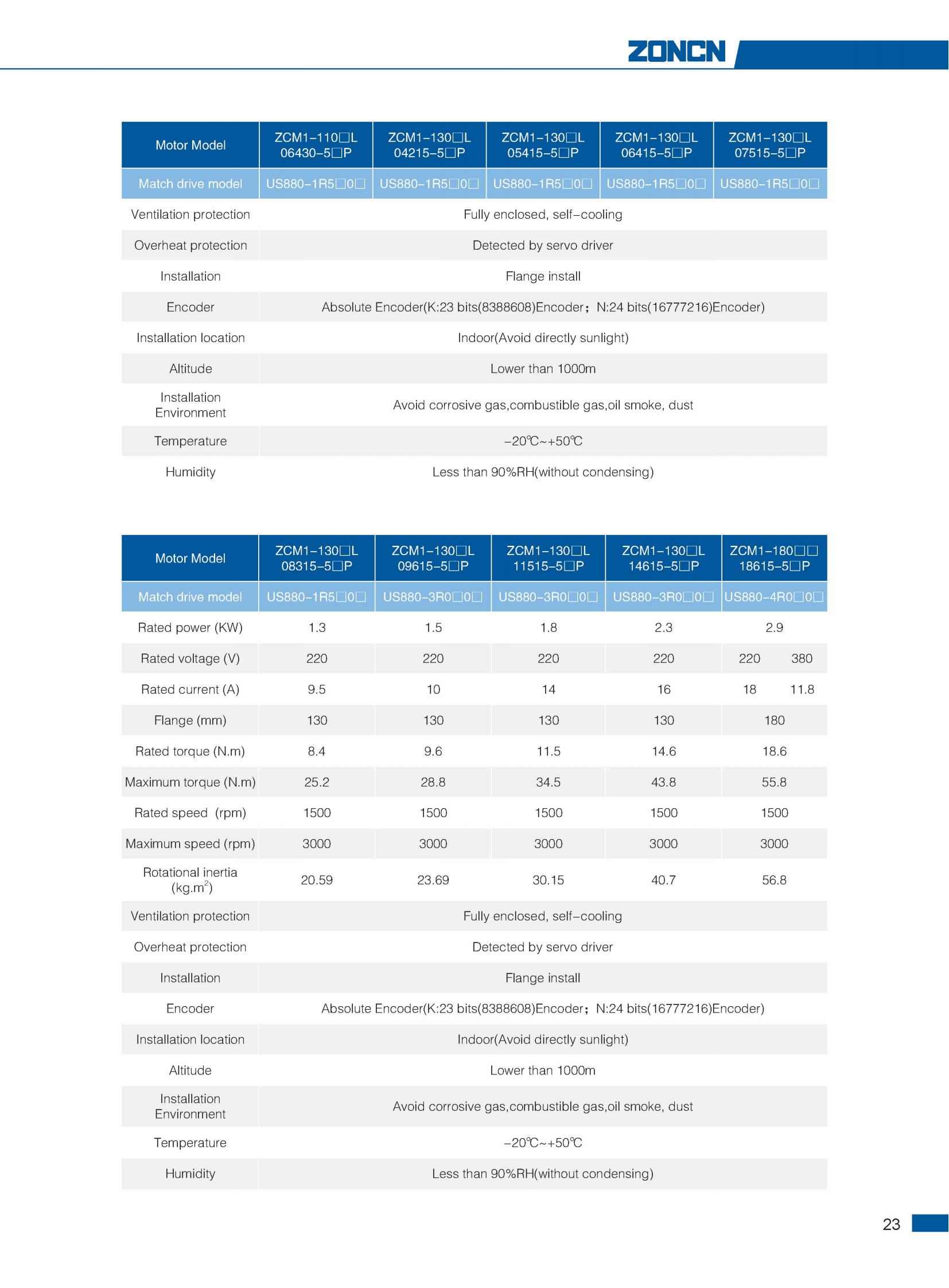

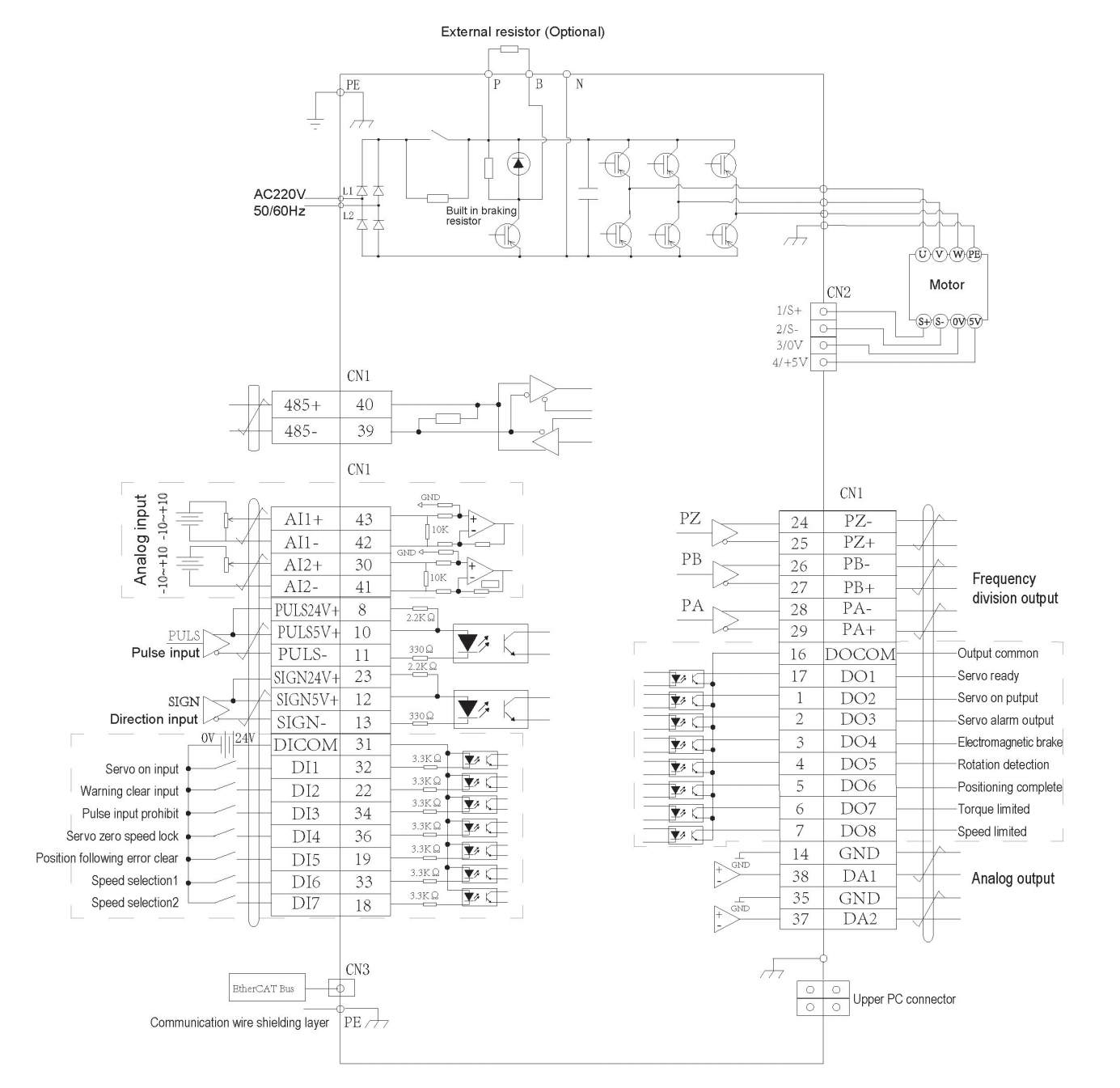

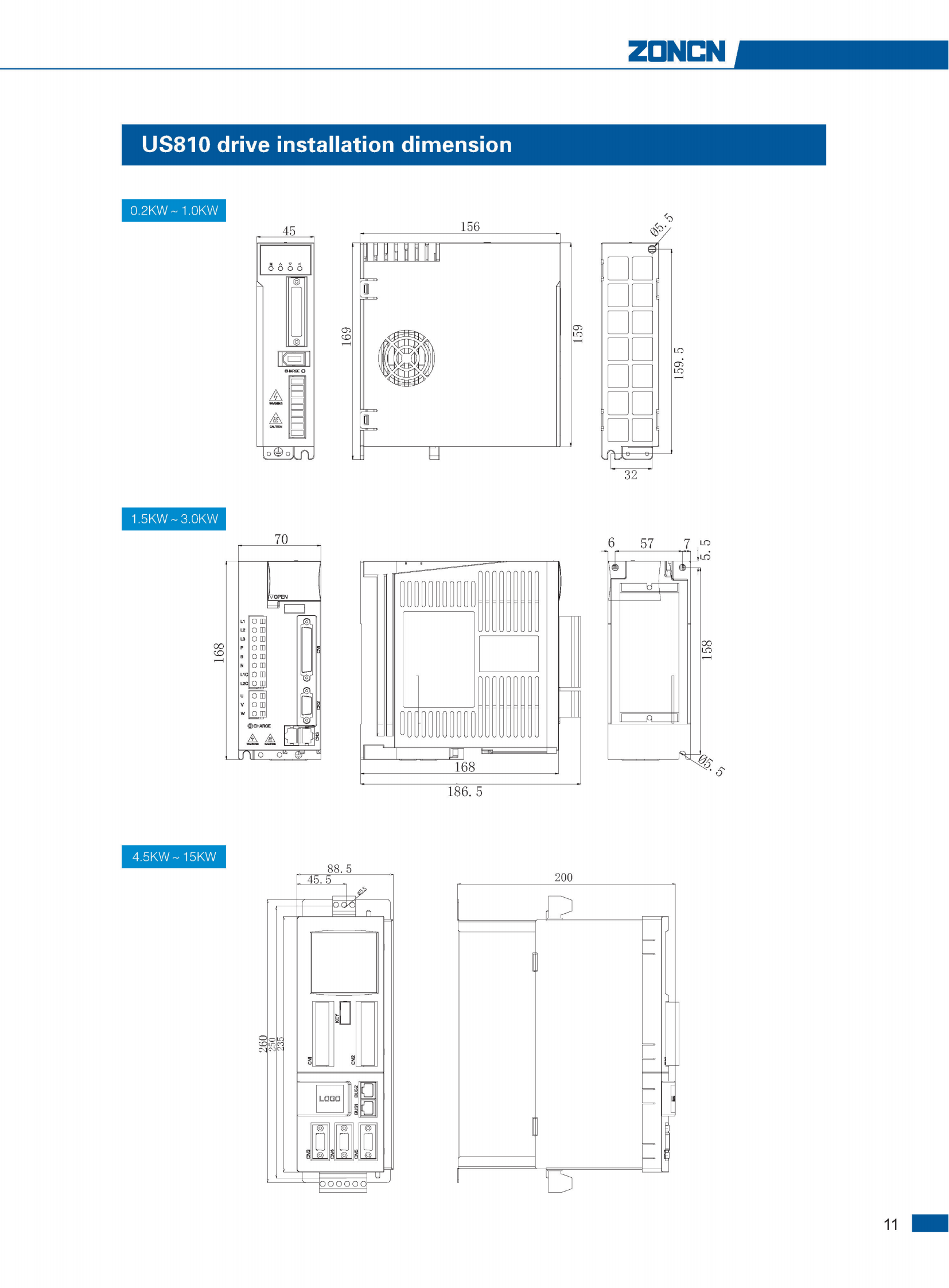

Technical Specification

Item				US880/US810
Basic Function	Input power	Control Circuit Power		1PHAC200V～AC240V 50/60Hz
		Main Circuit Power		US880		US810
				3PH220V:0.2KW~5.5KW 3PH380V:1.5KW~11KW		1PH220V:0.2KW~1.0KW 3PH220V:1.5KW~2.0KW 3PH380V:2.0KW～15KW
	Environment Condition	Temperature		Environment temperature 0℃~55℃(without condensing) Storage temperature-20℃~65℃(Maximum temperature 87℃72 hours)
		Humidity		Both using and storage need to keep below 90%RH(without condensing)
		Altitude		Lower than 1000m
		Vibration		Less than 5.88m/S²,10-60Hz(Can not continuous use under resonance frequency)
	Control mode			IGBT PWM type sine wave drive
	Encoder feedback			24Bit(16777216)Absolute encoder 23Bit(8388608)Absolute encoder 17Bit(131072)Absolute encoder
	Communication	EtherCAT、M3		Industrial Ethernet bus(COE)
	Operation panel			1.4 keys 2.LED light 5 bits 3.CPU workable light 4.Vector signal monitor output
	Brake resistor			Built-in regenerative resistor (Can be external)
	Dynamic brake			Built in
Function	Position control	Signal input		US880 series support EtherCAT.M3
				US810 series support EtherCAT. Pulse signal input
		Resistance to vibration		Support
	Speed control	Signal input		US880 series support EtherCAT.M3
				US810 series support EtherCAT. External speed input
		Zero speed dead zone		According to zero speed dead zone input
		Instantaneous velocity observer		Support
		Speed command filter		Support
	Torque control	Signal input		US880 series support EtherCAT.M3
				US810 series support EtherCAT .External torque input
	Common use	Protection	Hardware error		Over voltage, under voltage, over speed, overload, over heat, over current, encoder fault
			Software error		Position deviation too large, command pulse frequency division, EEROM fault
		Alarm data track		Refer to alarm data list
