ZX300 series PLC The ZX300 series PLC supports two expansion modes: the X10 and E10 expansion...

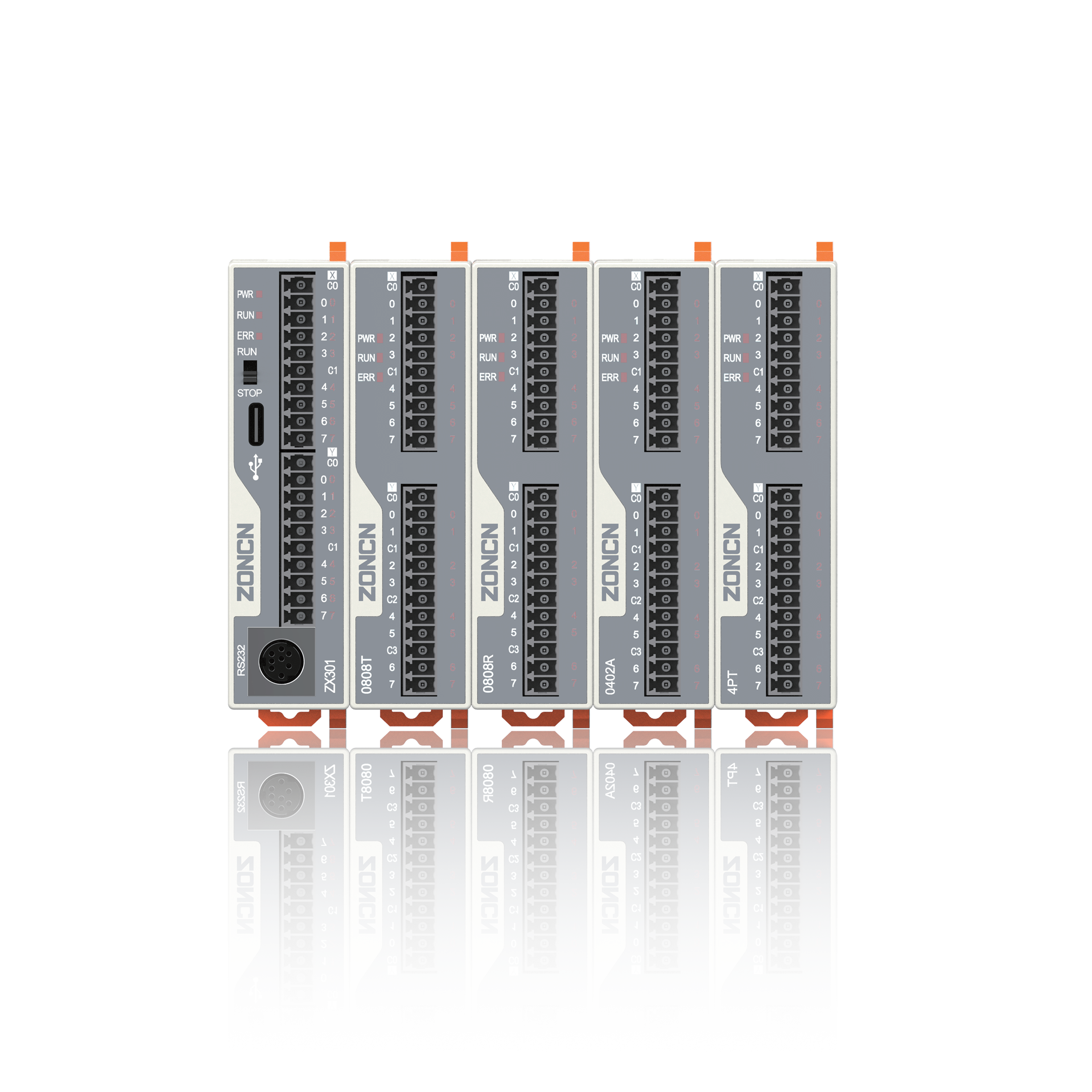

The ZX300 series PLC supports two expansion modes: the X10 and E10 expansion modules. Both modules have the same configuration, but the X10 module is expanded via communication and can support up to four expansion modules, while the E10 series connects directly to the host and supports up to one expansion module. The ZX300 series can be expanded with up to 1 E10 series and 4 X10 series modules
Model | ZX301 |
|
|
Input power supply | DC24V is 10%, the maximum is 4A, the typical is 2.4A, support short circuit/reverse connection protection, no external UPS is required | ||
Data/storage capacity | 64k | ||
Instruction processing speed | 0.065us | ||
High speed counting | Single-ended 4-way high-speed counting (100K) Or AB phase 2 high-speed counting (100K) | ||
IO | High-speed output at 4 km/h (100K) | ||
pulse output | The body has 8 inputs and 8 outputs (including high-speed inputs and outputs) | ||
How the program is executed | Circular scanning, parsing and execution | ||
Power-off maintenance | 1S | ||
Communication specifications | 1 RS232; 1 RS485 | ||
RUN/STOP | Can realize PLC operation/stop | ||
Modbus communication | Support ModbusRTU communication | ||
Type-C | USB is converted to Type-C, which can realize program download, monitoring and debugging | ||
Expand the module | E10 series (directly connected to the host, up to 1) X10 series (communicates with the host, up to four) | ||
programming software | ZxWorks, compatible with GxWorks2 | ||

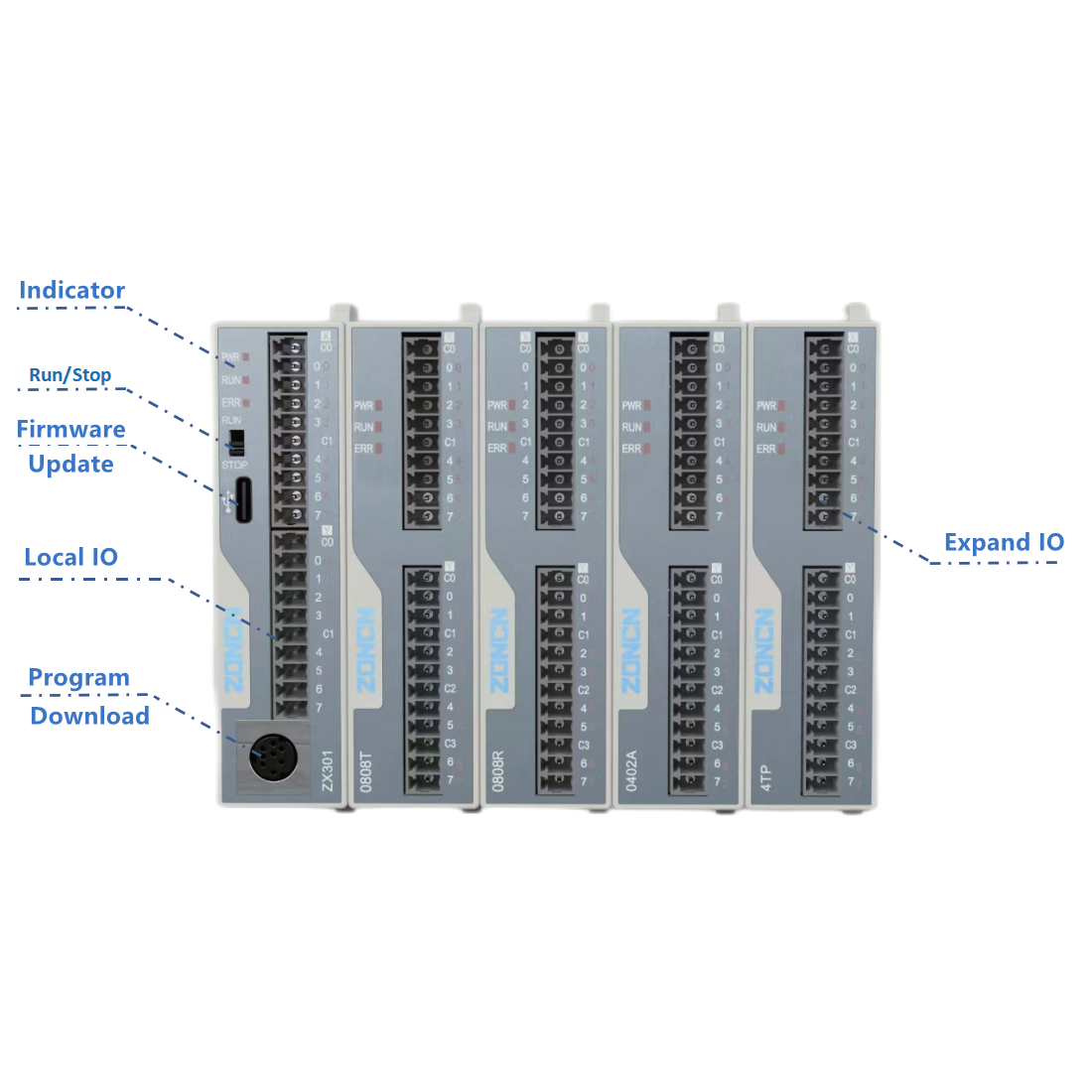

The ZX300 series PLC supports two expansion modes: the X10 and E10 expansion modules. Both modules have the same configuration, but the X10 module is expanded via communication and can support up to four expansion modules, while the E10 series connects directly to the host and supports up to one expansion module. The ZX300 series can be expanded with up to 1 E10 series and 4 X10 series modules
Expand module types
Host direct connection type:

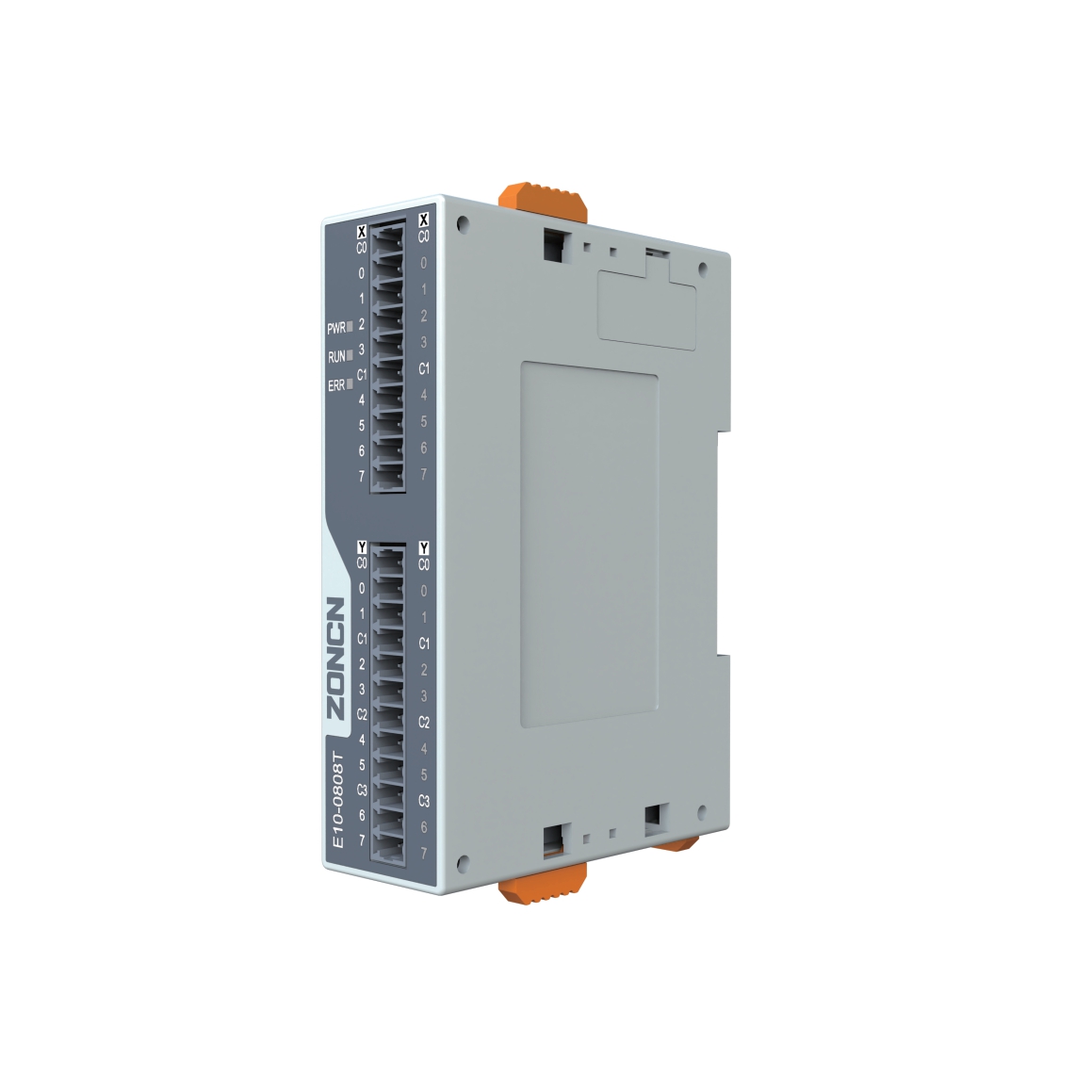

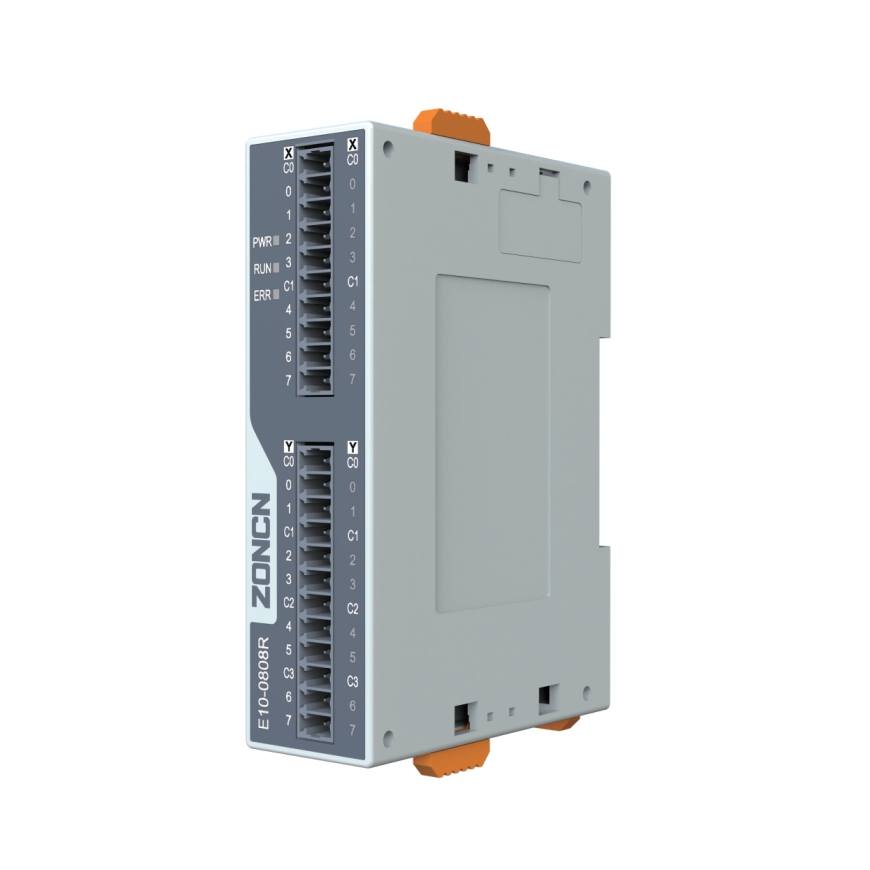

model | E10-0808T | E10-0808R | E10-0402A | |||||||
interface specification | 8 DI and 8 DO/NPN type open drain output | 8 DI and 8 relays / 4 groups | 2 AO, 4 Al | |||||||
parameter declaration | Isolation mode: optocoupler isolation Rated voltage: 24VDC±20% Current consumption: maximum 0.3A at a single point | Isolation mode: optocoupler isolation / relay isolation Rated voltage: 24VDC±20% Current consumption: maximum 5A at a point | Input: 0~10V,4~20mA Input accuracy: 12 bits ±5% output ：0~10V，4~20mA Output accuracy: 16 bits ±5% | |||||||
Bus expansion type:

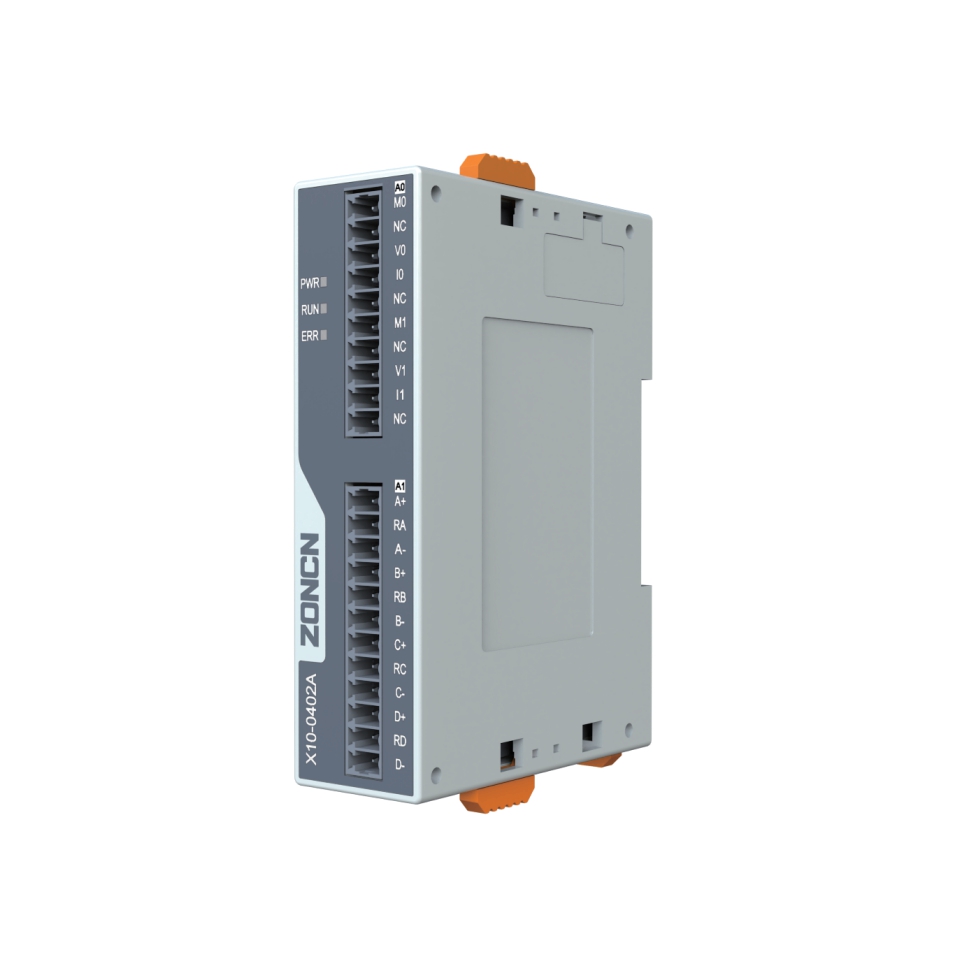

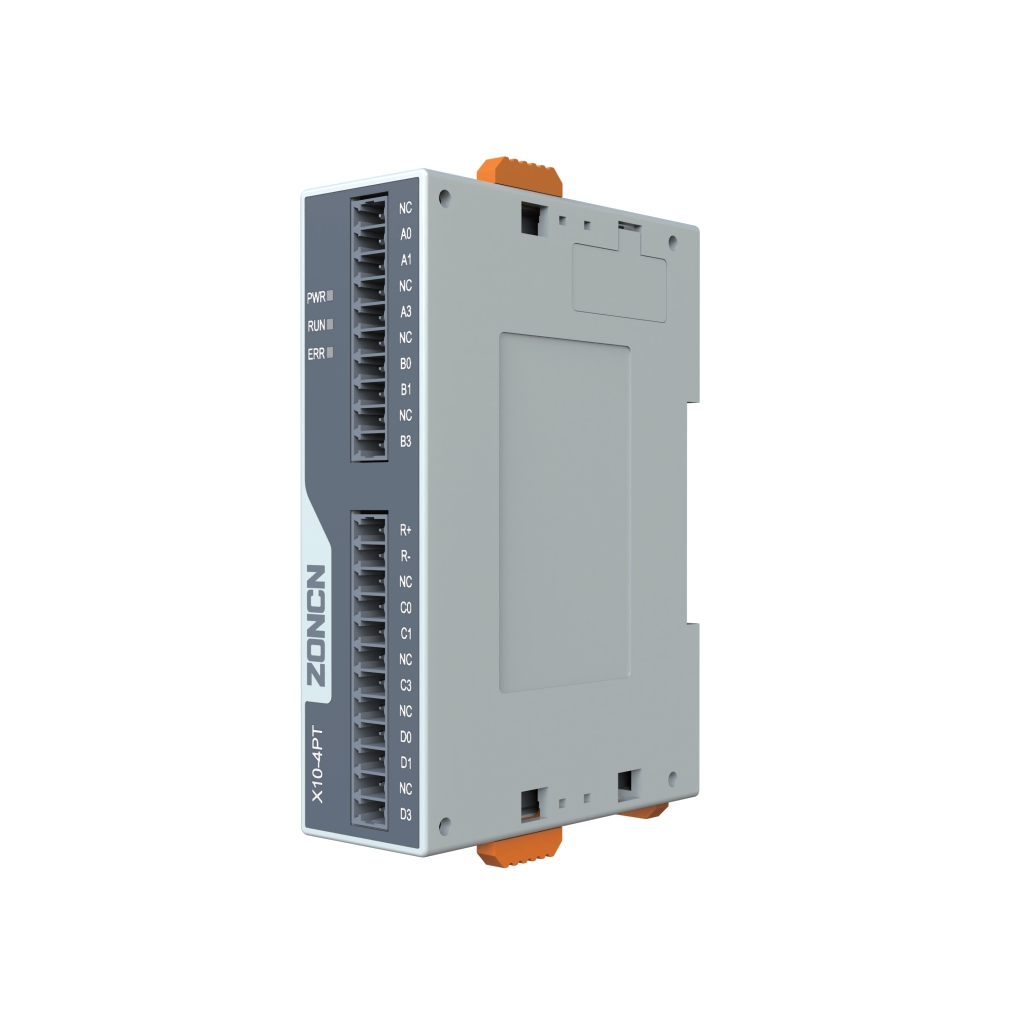

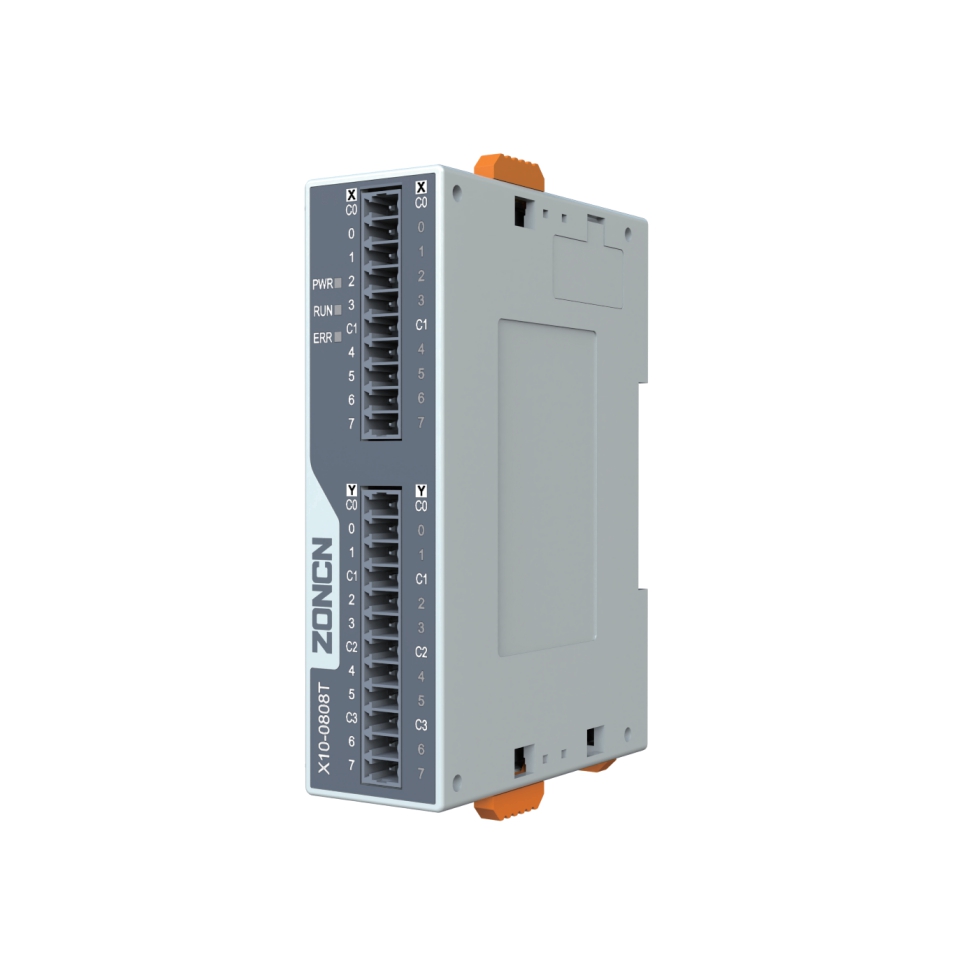

model | X10-0808T | X10-0808R | X10-0402A | X10-0402A | |||||
interface specification | 8 DI and 8 DO/NPN type open drain output | 8 DI and 8 relays / 4 groups | 2 AO, 4 Al | 4/2 line thermal resistance acquisition | |||||
parameter declaration | Isolation mode: optocoupler isolation Rated voltage: 24VDC±20% Current consumption: maximum 0.3A per point | Isolation mode: optocoupler isolation / Relay isolation Rated voltage: 24VDC±20% Current consumption: maximum 5A per point | Input: 0~10V,4~20mA Input accuracy: 12 bits ±5‰ output ：0~10V，4~20mA Output accuracy: 16 bits ±5‰ | Pt100,Pt500, Pt1000,Cu100, KTY84-130, NTC5K,NTC10K | |||||
