MODEL SELECTION INFORMATION 1,Display Characteristics:Size & Resolution;Display Technology: LCD;OLED. 2.Processor & Memory 3.Touch screen: Resistive (low-cost) or capacitive (high sensitivity, multi-touch). 4.Interfaces & Expandability
Products Overview
VC7000 series HMl is new generation IOT HMI, it is with high performance, industrial ABS economic frame, low cost, high reliability. Fully new cover mold setting, optimize back cover design in 6000 series HMI, removing back cover design, adding some antenna holes to increase products design, and more resolution models can be selected to meet different application needs.
VC7070WE is traditional HMI products by optimizing 1G,4-core A7 processer, it is with quite high resolution and applicable for various industrial production scene.
Products Specification
Hardware Parameters | Touch Screen | 7” 16:9 TFT LCD touch screen |
Resolution | 1024×600 | |
Color | 24-bit | |
Brightness | 350 cd/m² | |
Backlight | LED | |
LCD life | 50000 hours | |
Touch Screen | 4-wire industrial Touch Screen | |
CPU | 1GHz ，4-core CortexTM-A7 | |
Memory | 4GB Flash + 128M DDR3 | |
RTC | Built-in | |
Ethernet | 1-line 10M/100M adaptable | |
SD Card | Supporting | |
USB Ports | 1 Type-C OTG interface | |
Program | USB Slave/U-disc | |
Downloading | ||

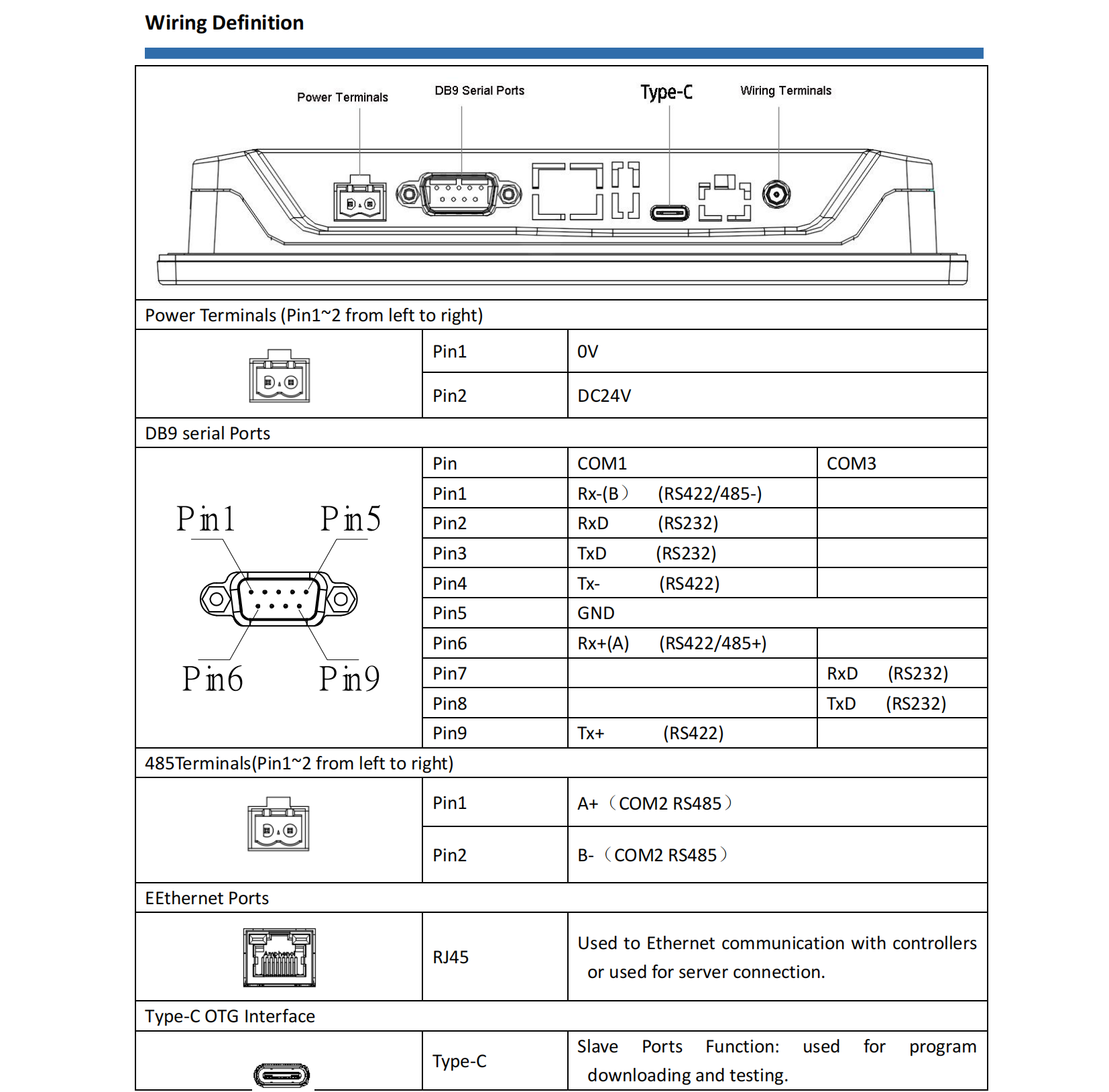

Serial | COM1:RS232/RS485/RS422 COM2:RS485 | |
Communication Port | COM3:RS232 | |
LCD View Angle (T/B/L/R) | 85'/85'/85'/85' | |
Electric Specifications | Rated Power | < 10W |
Rated Voltage | DC24V, working range DC 9V~28V | |
Power Protection | It is with lightening and surging protection | |
Power Loss | < 5mS | |
CE & RoHS | It confirms to EN61000-6-2:2005 ，EN61000-6-4:2007 standard Confirms to RoHS, lightening and surging±1KV,group pulse ±2KV, Static contact 4KV, air discharge: 8KV | |
Environment | Working | 0~50℃ |
Temperature | ||
Storage | -20~60℃ | |
Temperature | ||
Anti-violet | It prohibits working under strong violet (such as direct sunshine). | |
Environment Humidity | 10~90%RH(non condensate) | |
Anti-vibraiton | 10~25Hz(X,Y, Z direction 2G/30 minutes) | |
Cooling | Natural Cooling | |
Mechanical | Protection Grade | Front panel confirms to IP65 (equip with flat cabinet installation), back cover confirms to 20 |
Mechanic | Plastic Engineering | |
Structure | Hole Size | 192mm×138mm |
Machine Size | 204mm×145mm×34mm(difference±0.5mm) | |
Machine Weight | About 472g |
