VINAC

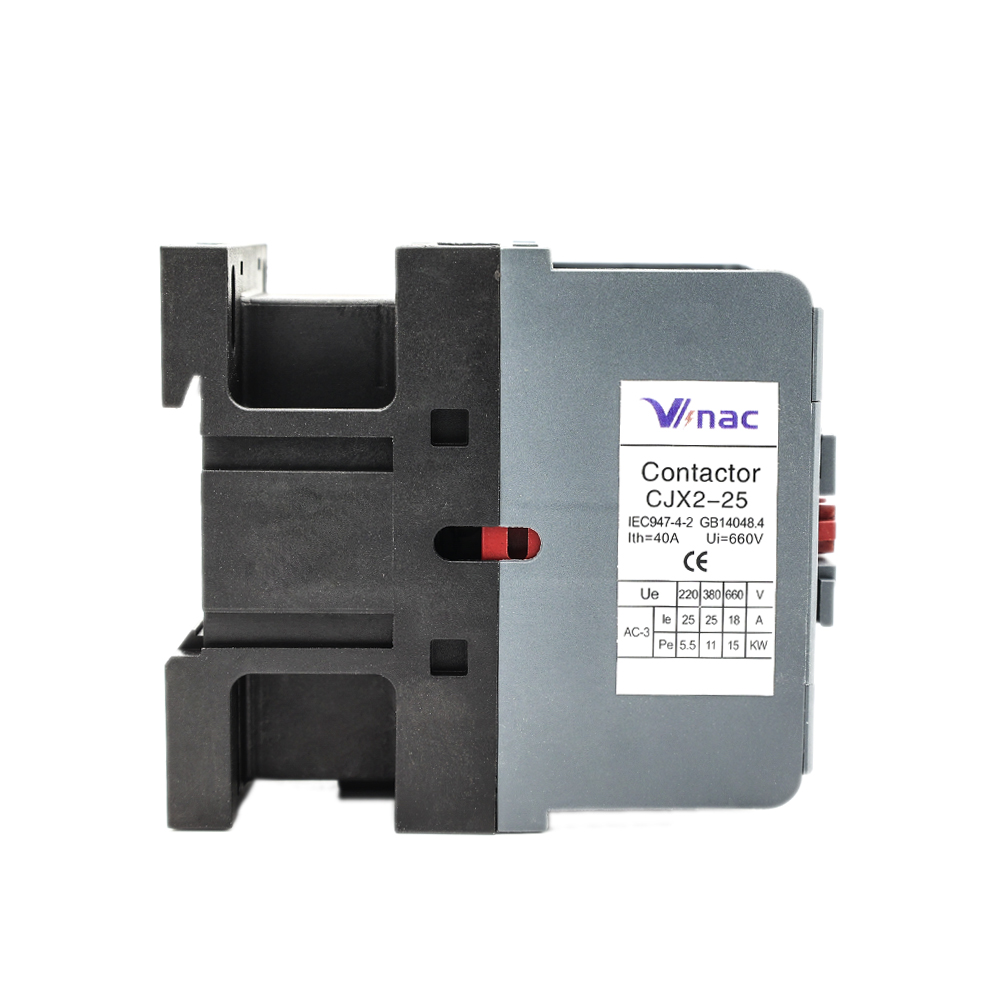

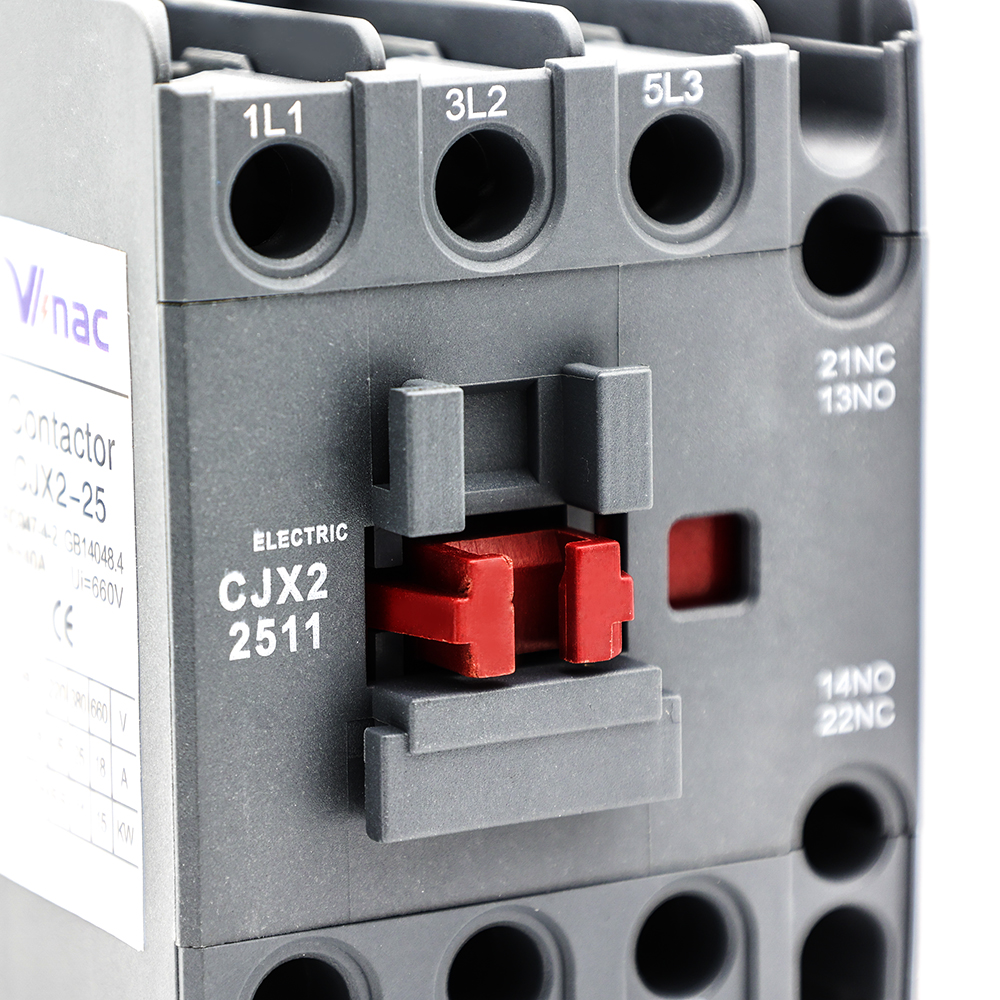

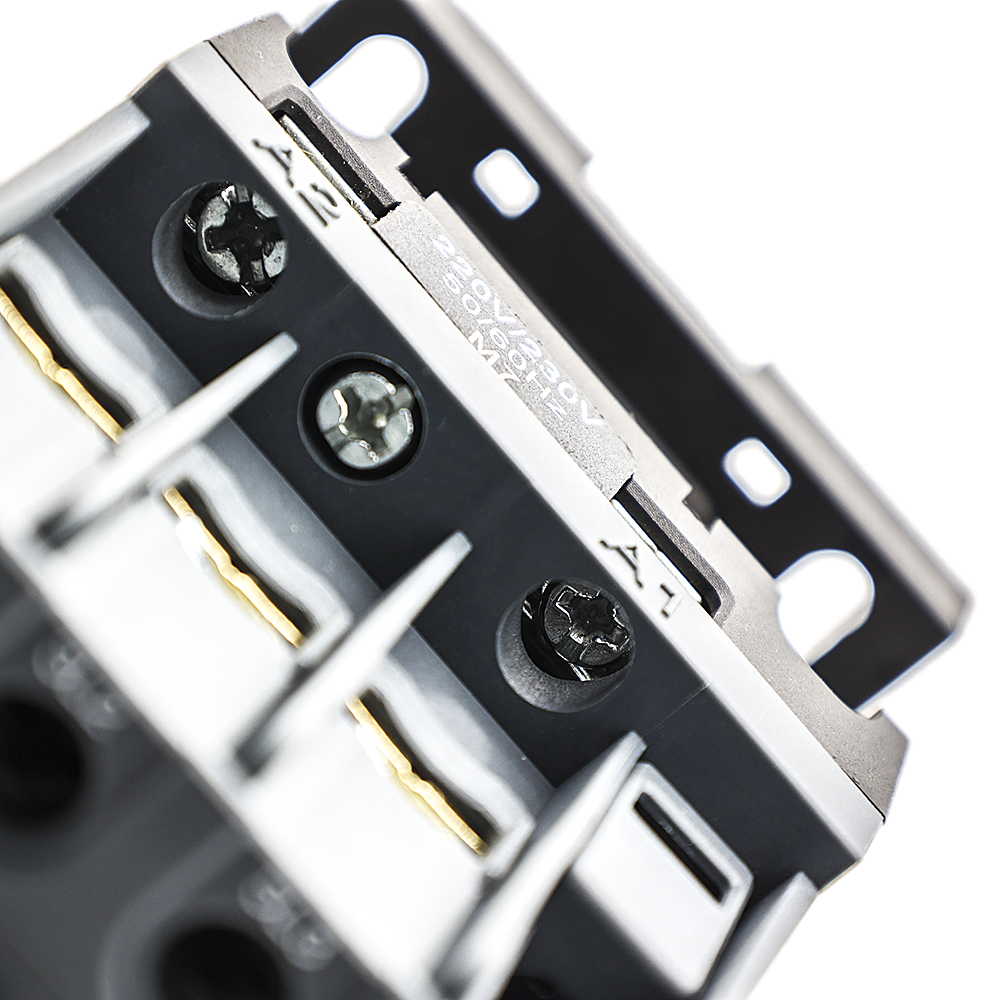

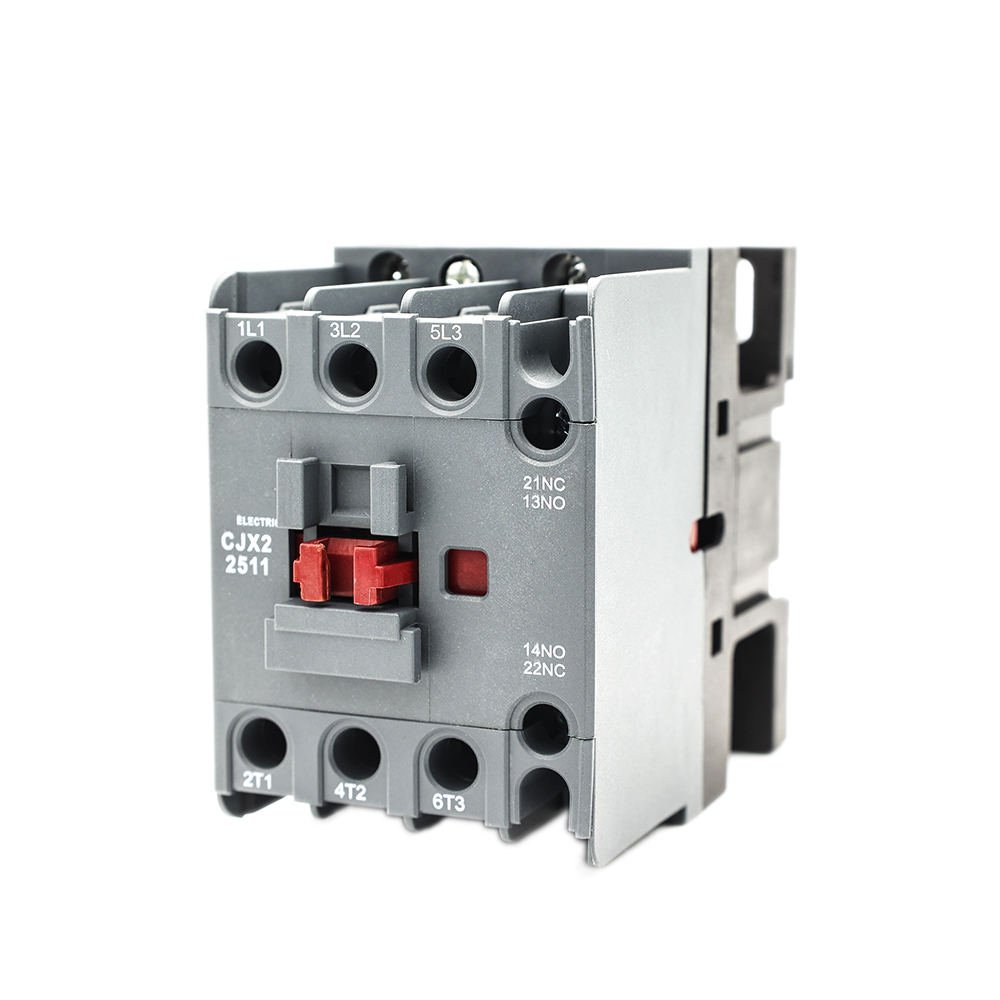

Number of poles: 3P Main contact form: 30% or 100% silver point Number of main contacts: 1 Number of auxiliary contacts: 2 Coil frequency HZ: 50/60HZ Insulation voltage V: 690V Protection type: motor protection Wiring method: manual Installation method: guide rail/fixed installation Weight kg: 0.4KG Electrical life times: 20000 Mechanical life times: 9 million times 3C Rated voltage range V: 50V or more 440V or less
Model | Rated insulation Voltage (V) | Agreed fever Current(A) | Rated working current 400V AC3(A) | Control power(kw) | Number of contacts | Notes | ||||
230V | 400V | 415V | 440V | 690V | ||||||
CJX2-0910 -0901 |
690 | 20 | 9 | 22 | 4 | 4 | 4 | 5. 5 | 3P+NO 3P+NC |

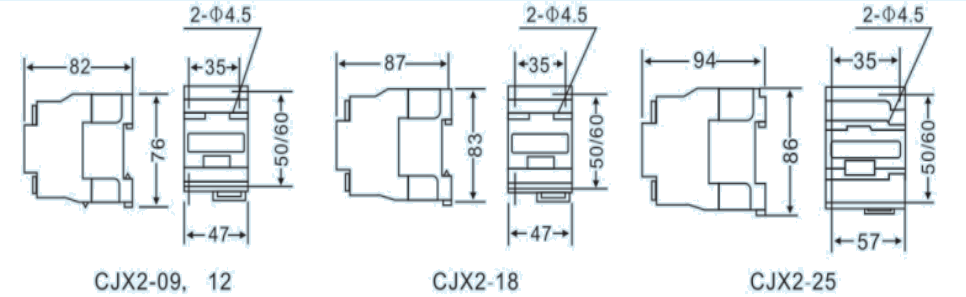

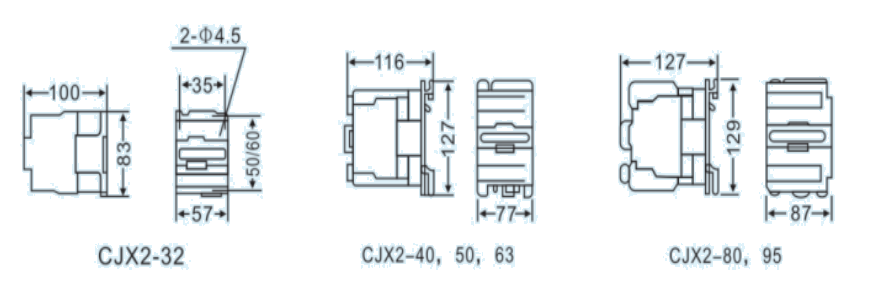

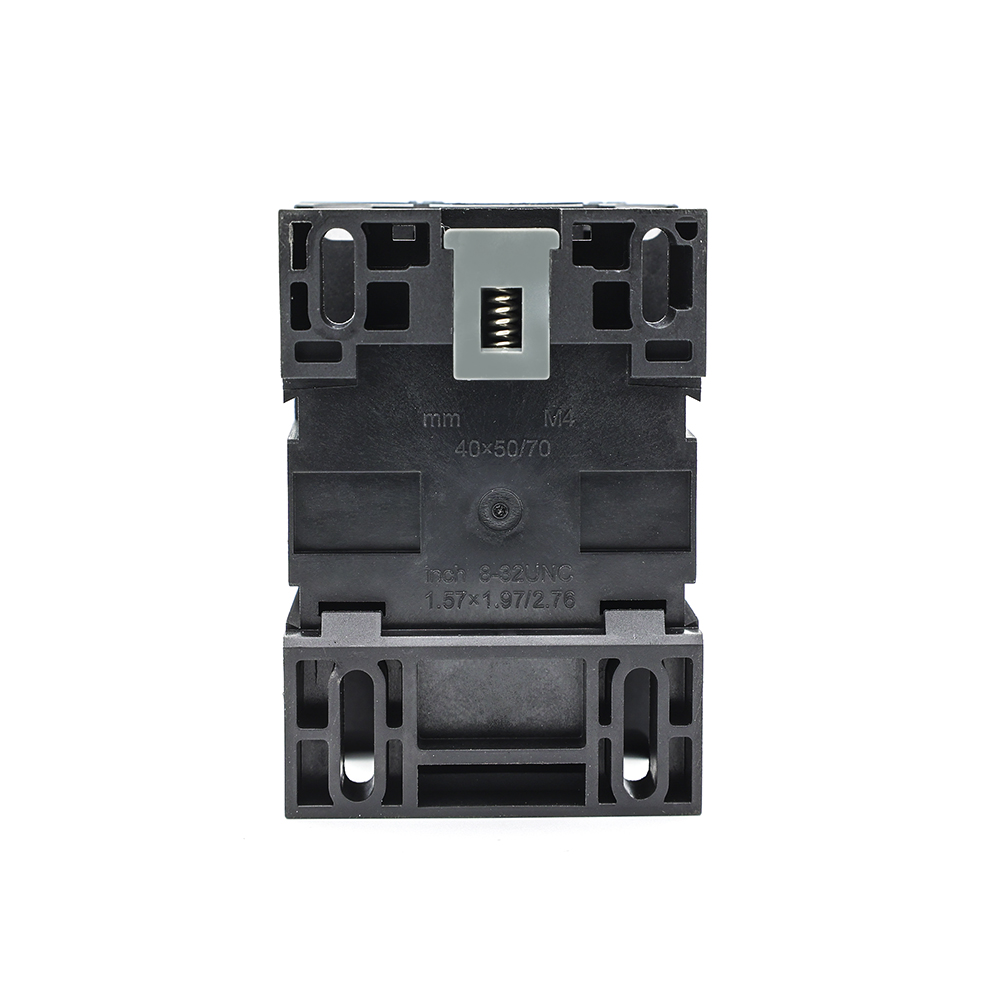

Installation method 1. Installation of two screws 2. Installation of 35mm guide rail |

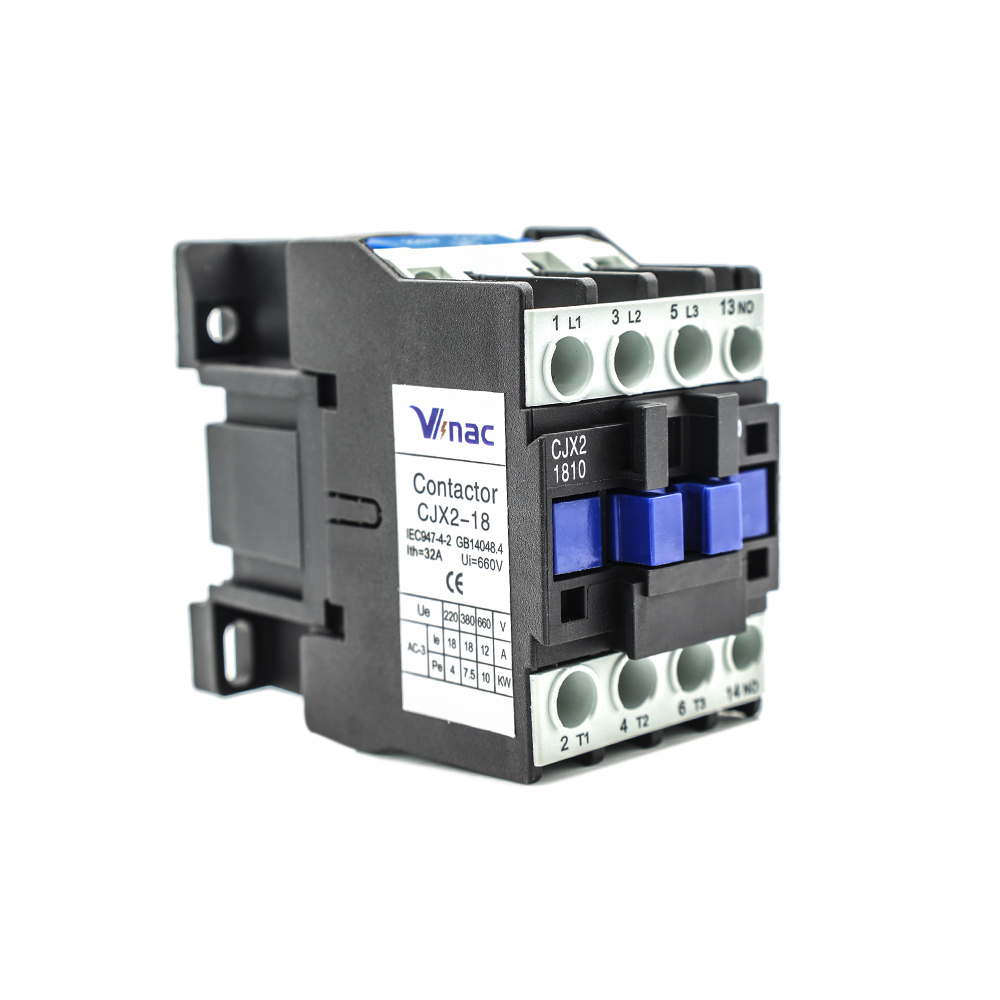

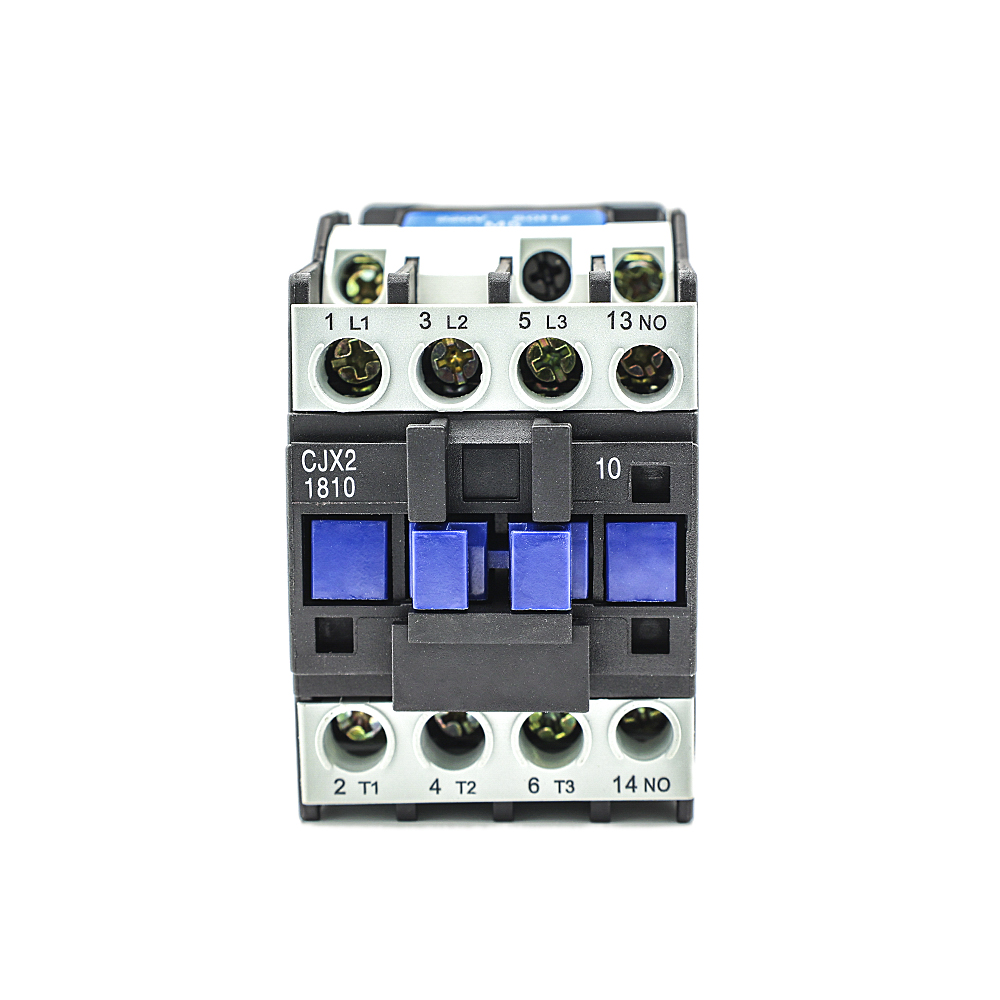

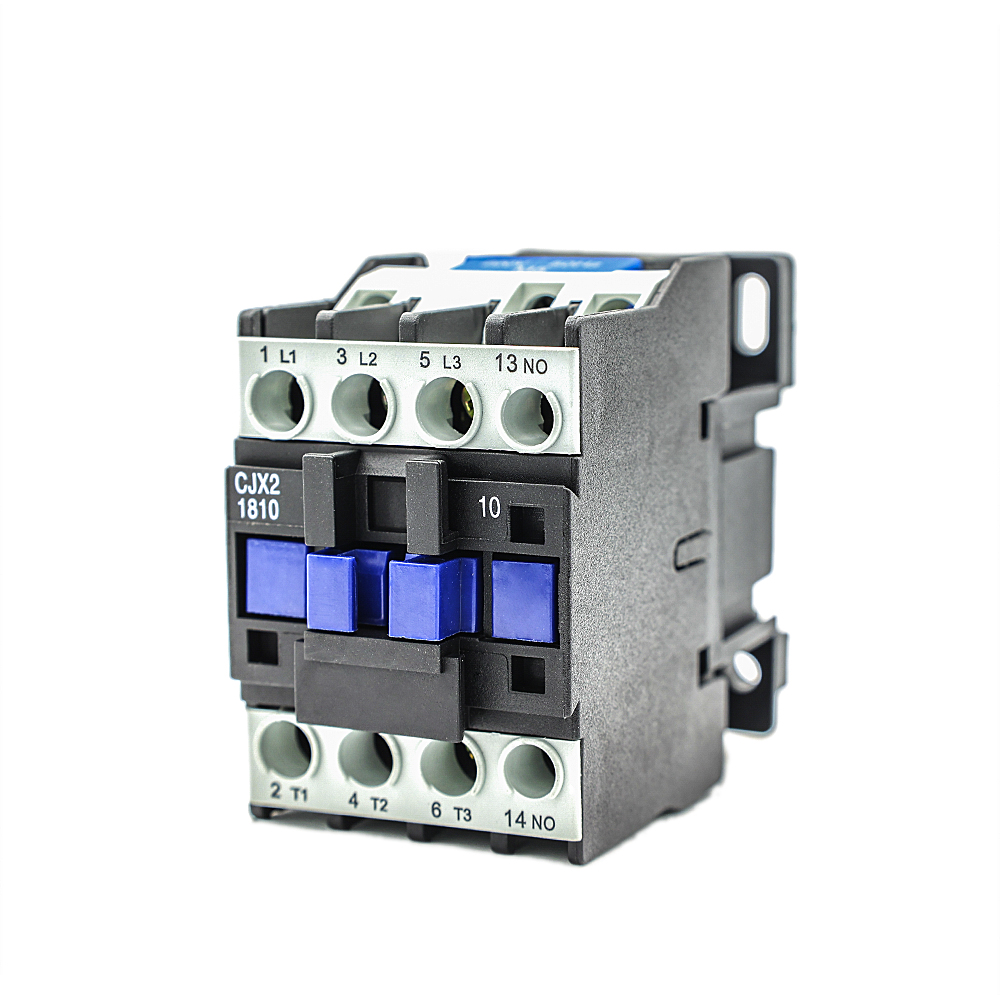

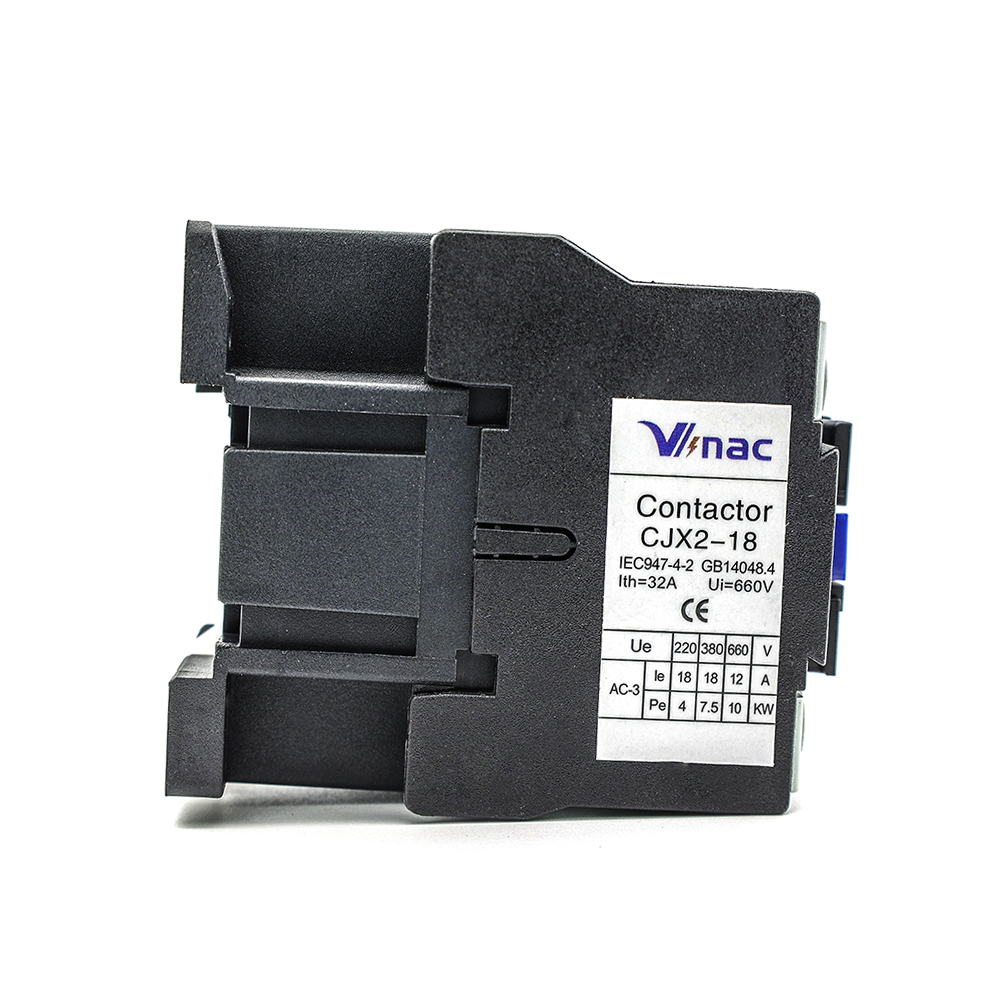

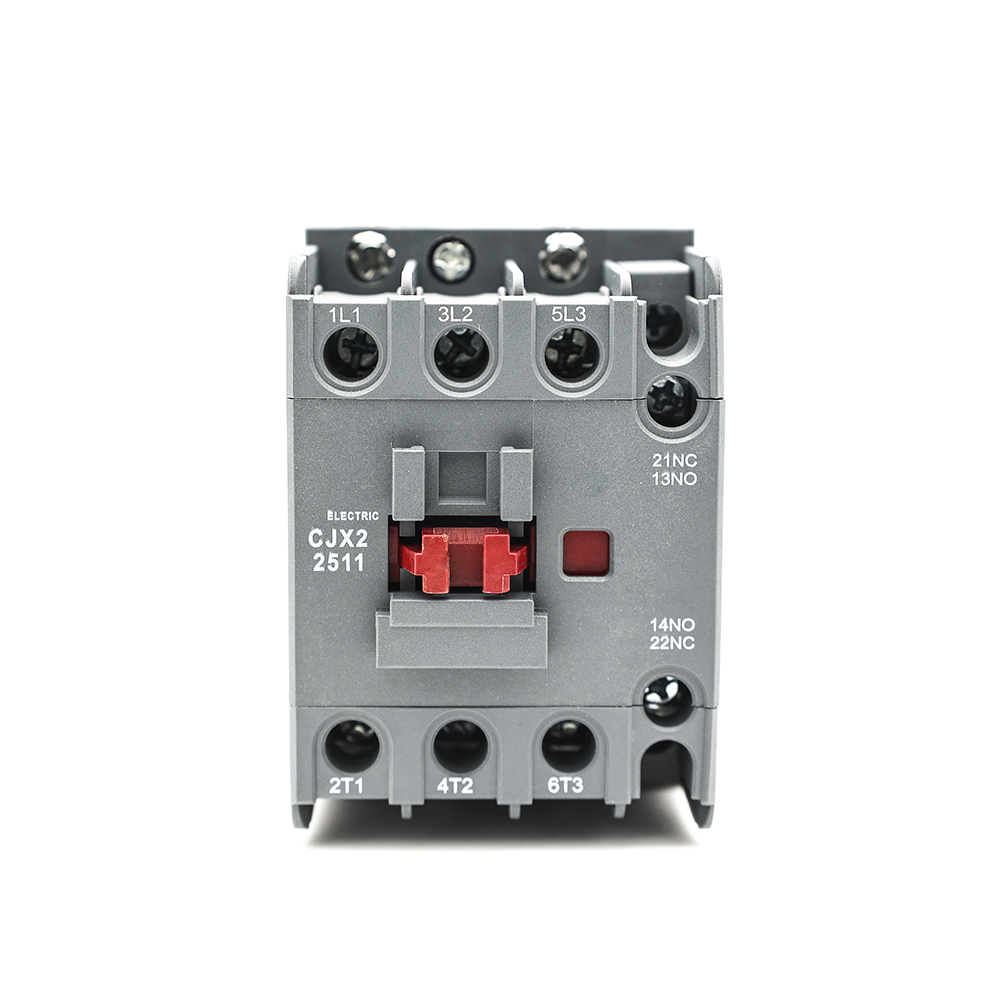

CJX2-1210 -1201 | 20 | 12 | 3 | 5. 5 | 5. 5 | 5. 5 | 7. 5 | 3P+NO 3P+NC | ||
CJX2-1810 -1801 | 32 | 18 | 4 | 75 | 9 | 9 | 9 | 3P+NO 3P+NC | ||
CJX2-2510 -2501 | 40 | 25 | 5. 5 | 11 | 11 | 11 | 15 | 3P+NO 3P+NC | ||
CJX2-3210 -3201 | 50 | 32 | 7. 5 | 15 | 15 | 15 | 18. 5 | 3P+NO 3P+NC | ||
CJX2-4011 | 60 | 40 | 11 | 18. 5 | 22 | 22 | 30 |
| Installation method 1. Installation of three screws 2. Installation of 75mm or 35mm guide rails | |
CJX2-5011 | 80 | 50 | 15 | 22 | 25 | 30 | 33 |
| ||
CJX2-6511 | 80 | 65 | 18. 5 | 30 | 37 | 37 | 37 | 3P+NO | ||
CJX2-8011 | 125 | 80 | 22 | 37 | 45 | 45 | 45 | 3P+NC | ||
CJX2-9511 | 125 | 95 | 25 | 45 | 45 | 45 | 45 |
| ||
The contactor can be assembled into an auxiliary
contact group with any attachment in the table Air delay head
Model | Number of contacts | Model | Delay range |
F4-02 | 2NC | LA2-D20 | 0. 1~3s |
F4-11 | NO+NC | LA2-D22 | 0. 1~30s |
F4-20 | 2NO | LA2-D24 | 10~180s |
F4-22 | 2NO+2NC | LA3-D20 | 0. 1~3s |
F4-40 | 4NO | LA3-D22 | 0. 1~30s |
F4-04 | 4NC | LA3-D24 | 10~180s |
F4-13 | 1NO+3NC |
|
|
F4-31 | 3NO+1NC |
|

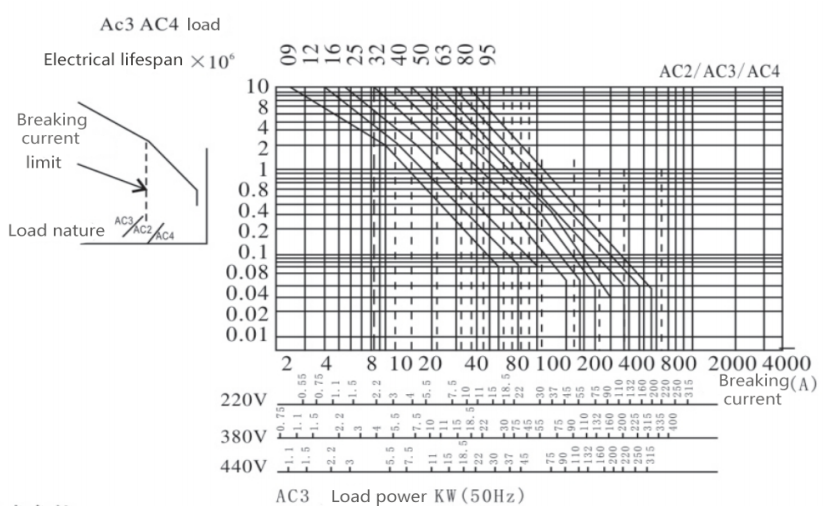

Model | CJX2-09 | CJX2-12 | CJX2-18 | CJX2-25 | CJX2-32 | CJX2-40 | CJX2-50 | CJX2-65 | CJX2-80 | CJX2-95 | |||
pull-in voltage 50/60Hz(A) | (0. 85~1. 1) Us | (0. 85~1. 1) Us | (0. 85~1. 1) Us | (0. 85~1. 1) Us | (0. 85~1. 1) Us | (0. 85~1. 1) Us | (0. 85~1. 1) Us | (0. 85~1. 1) Us | (0. 85~1. 1) Us | (0. 85~1. 1) Us | |||
release voltage 50/60Hz(A) | (0. 2~0. 75) Us | (0. 2~0. 75) Us | (0. 2~0. 75) Us | (0. 2~0. 75) Us | (0. 2~0. 75) Us | (0. 2~0. 75) Us | (0. 2~0. 75) Us | (0. 2~0. 75) Us | (0. 2~0. 75) Us | (0. 2~0. 75) Us | |||
coil power | 50Hz | close | (VA) | 70 | 70 | 110 | 110 | 110 | 200 | 200 | 200 | 200 | 200 |
hold | (VA) | 8 | 8 | 11 | 11 | 11 | 20 | 20 | 20 | 20 | 20 | ||
60Hz | close | (VA) | 80 | 80 | 115 | 115 | 115 | 200 | 200 | 200 | 200 | 200 | |
hold | (VA) | 8 | 8 | 11 | 11 | 11 | 20 | 20 | 20 | 20 | 20 | ||
power dissipation | (W) | 1. 8-2. 7 | 1. 8-2. 7 | 3-4 | 3-4 | 3-4 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | ||
Note: In order to facilitate the maintenance and updating of existing equipment and appliances by users, our company has specially designed a transition installation plate to replace the CJ10 series AC contactor with the CJX2 series AC contactor. The alternative specifications and performance are shown in Table 5.
Table 5
Alternative Model Specifications | Rated Working Current (A) | Electrical Lifespan AC3 (X10⁴ ) times | Mechanical Life (X10⁵ ) times | Volume (cm³) | Weight (kg) |
CJ10-10 | 10 | 60 | 300 | 467 | 0. 48 |
CJX2-12 | 12 | 100 | 1000 | 247 | 0. 32 |
CJ10-20 | 20 | 60 | 300 | 1094 | 1 |
CJX2-25 | 25 | 80 | 800 | 437 | 0. 49 |
CJ10-40 | 40 | 60 | 300 | 1682 | 1. 8 |
CJX2-40 | 40 | 80 | 800 | 1058 | 1. 1 |
CJ10-60 | 60 | 60 | 300 | 4169 | 4. 45 |
CJX2-65 | 65 | 60 | 800 | 1058 | 1. 1 |
CJ10-100 | 100 | 60 | 300 | 5809 | 6. 27 |
CJX2-95 | 95 | 60 | 800 | 1446 | 1. 4 |
